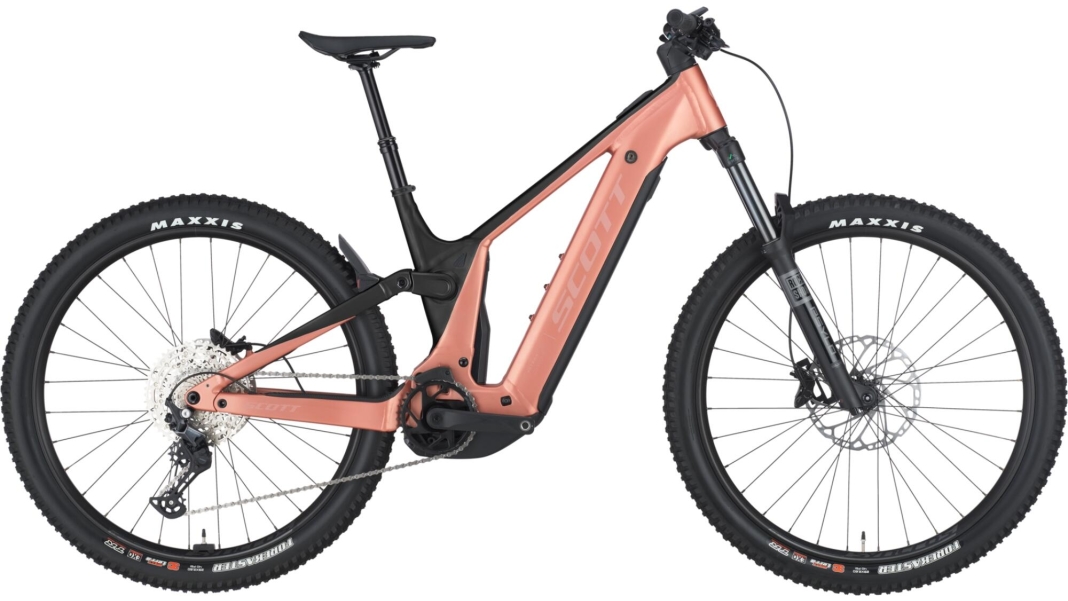

Scott Patron 920
Modell: Patron 920
Modelljahr: 2025
Preis: 5.999,00 €
Kategorie: Fully
Rahmenmaterial: Aluminium
Gewicht: 25 kg
Zulässiges Gesamtgewicht: 128 kg
Laufradgröße: 29"/622mm
Tests & Fahrberichte
Ausstattung
| Bremsen hinten | Shimano MT520 4 Piston Disc |
| Bremsen vorne | Shimano MT520 4 Piston Disc |
| Bremsscheibe vorne | Shimano SM-RT64 CL 220mm |
| Bremsscheibe hinten | Shimano SM-RT64 CL 203mm |
| Rahmen | Alloy Frame, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline, Bosch PowerMore Ready |
| Rahmenmaterial | Aluminium |
| Schaltung | Shimano Deore RD-M6100 SGS, Shadow Plus / 12 Speed |
| Schalthebel | Shimano Deore SL-M6100-IR / Rapidfire Plus |
| Schaltungstyp | Kettenschaltung |
| Anzahl Gänge | 12 |
| Gabel | RockShox Psylo Silver RC Air / E-Bike / Comp & Reb Adj. / QR Axle 15x110mm axle, 44mm offset / tapered steerer / 150mm travel |
| Dämpfer | X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 150-100-Lockout / T185X55mm |
| Gabel Federweg (mm) | 150 |
| Dämpfer Federweg (mm) | 150 |
| Kurbelsatz | FSA Alloy |
| Zahnkranz | Shimano CS-M6100 / 10-51 |
| Antrieb | Shimano CN-M6100 |
| Antriebsart | Kette |
| Steuersatz | Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Lenker | Syncros Hixon 2.0 Alloy 6061, Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8° / 780mm |
| Griffe | Syncros Endurance lock-on grips |
| Vorbau | Syncros AM 2.0, Syncros Cable Integration System, 4° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| Sattelmodell | Syncros Tofino-E 2.5 Regular |
| Sattelstütze | Syncros Duncan Dropper Post 2.5, 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm |
| Laufradgröße | 29"/622mm |
| Reifen vorne | Maxxis Forekaster 29x2.6", 120TPI Foldable Bead, EXO / TR Tubeless ready, 3C Maxx Terra |
| Reifen hinten | Maxxis Forekaster 29x2.6", 120TPI Foldable Bead, EXO / TR Tubeless ready, 3C Maxx Terra |
| Nabe vorne | Formula CL-811 / 15x110mm |
| Nabe hinten | Formula ECT-148M / Boost 148x12mm |
| Speichen | Stainless Black |
| Frontleuchte | Front Light Cable pre-installed |
| Rückleuchte | Syncros integrated rear fender light |
| Motor-Hersteller/ Modell | Bosch Performance CX, EU: 25kmh / INT: 20mph |
| Motor-Typ | bis 25 km/h |
| Display | Bosch System Controller, Mini Remote & Intuvia 100 |
| Akku | PowerTube 800Wh |
| Akku-Kapazität (Wh) | 800 |
| Akku-Montage | Intube |
| Akku-Typ | Lithium-Ionen (Li-Ion) |
| Akku-Spannung (V) | 36V |
| Ladegerät | 4A Charger |
