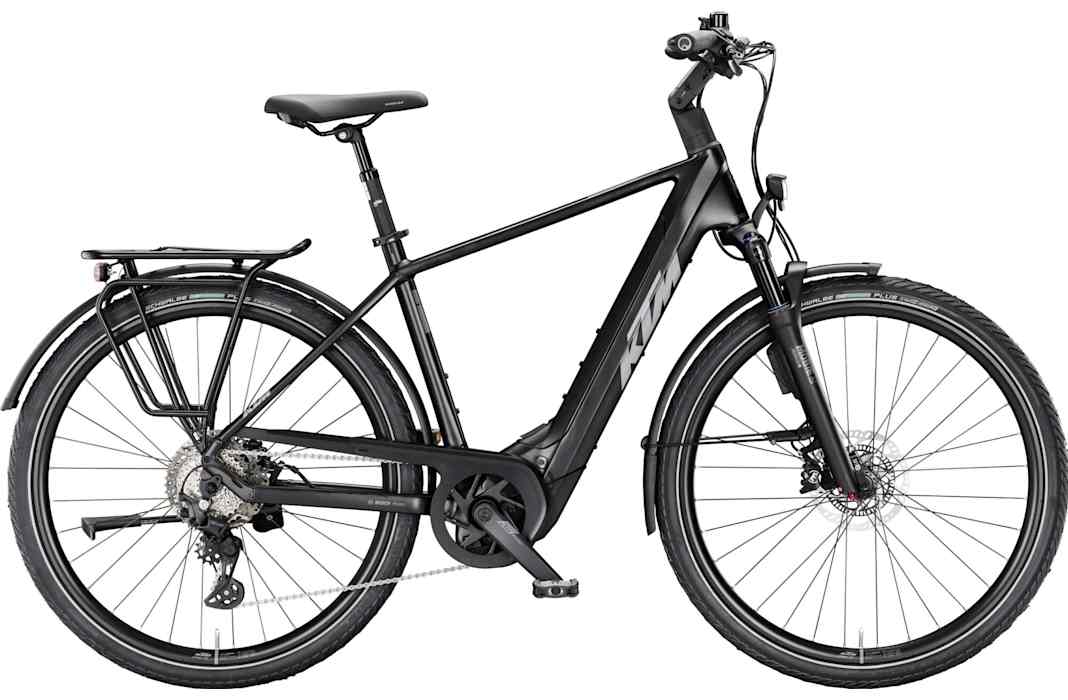

MACINA STYLE 830 ABS


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Profile not fully set up

Comments

My Bookmarks

My Comments

My Profile

Which bike is right for me?

Helps us estimate the right stability and components.

How often do you ride?

A motor helps when you're riding long distances or tackling climbs.

Should a motor support you?

Helps us find bikes within your budget.

How much do you want to spend?

Tell us what you enjoy – we'll find the right bike.

Purpose – how do you want to ride?

Range determines battery size on e-bikes.

How long are your rides?

Affects tyres and geometry.

What terrain do you ride on?

Bikefinder: Which bike is right for you?

Brakes	Magura MTC ABS 4-piston
Front brake disc	Magura MDR-C CL 180
Rear brake disc	Magura MDR-C CL 180
Frame	Macina Trekking Onroad Alloy 6061\|PT800 Bosch BDU38/T5940
Frame material	Aluminium
Drivetrain	Shimano Deore M5130-10 LG shadow+
Shift levers	Shimano Deore M5130-10 LG display
Drivetrain type	Derailleur
Fork	Suntour Mobie34 Air 29" 2CR 80mm 15QLC
Crankset	left: KTM E-COMP ISIS 170mm Q16 - right: KTM E-COMP ISIS 170mm Q16
Sprocket	Shimano LG600-10 / 11-43
Drive	KMC e500 LG e-bike
Drive type	Chain
Headset	Acros AICR internal 1.5"-1.5"
Handlebar	KTM Line low-riser 640mm
Grips	Ergon GP1 SD
Stem	KTM Line adjust. 0-60° ICR
Saddle	Selle Royal Essenza
Seatpost	KTM Line Elegance suspension 30.9/300
Seat clamp	KTM Line JD-SC99 - 34.9mm
Wheel size	29"/622mm
Front tire	Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
Rear tire	Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
Front hub	Shimano Deore M6010 CL 32H 100-15TA
Rear hub	Shimano Deore M6000 CL 32H 135-5QR
Spokes	front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black
Pedals	Trekking pedal VP-616 anti-slip
Front light	B&M Briq-S 60Lux
Rear light	B&M Toplight 2C
Mudguards	SKS A55K PET Trek 28"
Kickstand	KTM 28" adjustable MY2025
Rack	KTM Tour Snap-It 1.0
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840
Display	Bosch PURION 200 Display & Remote
Battery	Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Battery capacity (Wh)	800
Charger	Bosch STANDARD Charger 4A

KTM MACINA STYLE 830 ABS
