Brakes	Tektro TKD-139 / HD-E730 4-piston
Frame	Macina Trekking Onroad 6061 Alloy PT800 Bosch BDU38 / T-5940
Drivetrain	Shimano CUES U6000-11/10 LG shadow+
Shift levers	Shimano CUES U6000-11 display
Fork	Suntour NCX32-D coil LO 63mm (Heavy Duty) 1 1/8
Fork travel (mm)	63
Crankset	KTM E-COMP2 ISIS 170mm Q8
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e11 Sport EPT e-bike
Headset	Acros AICR internal 1.1/8"-1.5" angle limit
Handlebar	Ergotec Lady Town 31.8 690mm
Grips	Ergon GP1 Evo
Stem	Ergotec Swell RE70i, adjustable 0–60°
Saddle	Selle Royal Viaggio
Seatpost	by Schulz G. 2 ST suspension 30.9/350
Seat clamp	KTM Line JD-SC99 - 34.9mm
Wheelset	KTM Line – Shimano Deore M5100 CL 36H 100-5QR, Ryde Andra29 36H 622x29C, DT Alpine II 2.34 black \ KTM Line - Shimano Deore M5100 CL 36H 135-5QR, Ryde Andra29 36H 622x29C, DT Alpine II 2.34 black
Front tire	Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex
Rear tire	Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex
Pedals	Trekking pedal VP-616 anti-slip
Front light	B&M IQ-XS 80Lux
Rear light	B&M Toplight 2C
Mudguards	SKS A55K PET Trek 28" rear
Kickstand	KTM 28" adjustable MY2025
Rack	KTM Tour (Snap-It 2.0 + Monkeyload) child seat + rack clip
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840 – 25 km/h / 85 Nm
Display	Bosch LED remote / Bosch KIOX 500 TFT display
Battery	Bosch PowerTUBE 800Wh (horizontal)
Battery capacity (Wh)	800

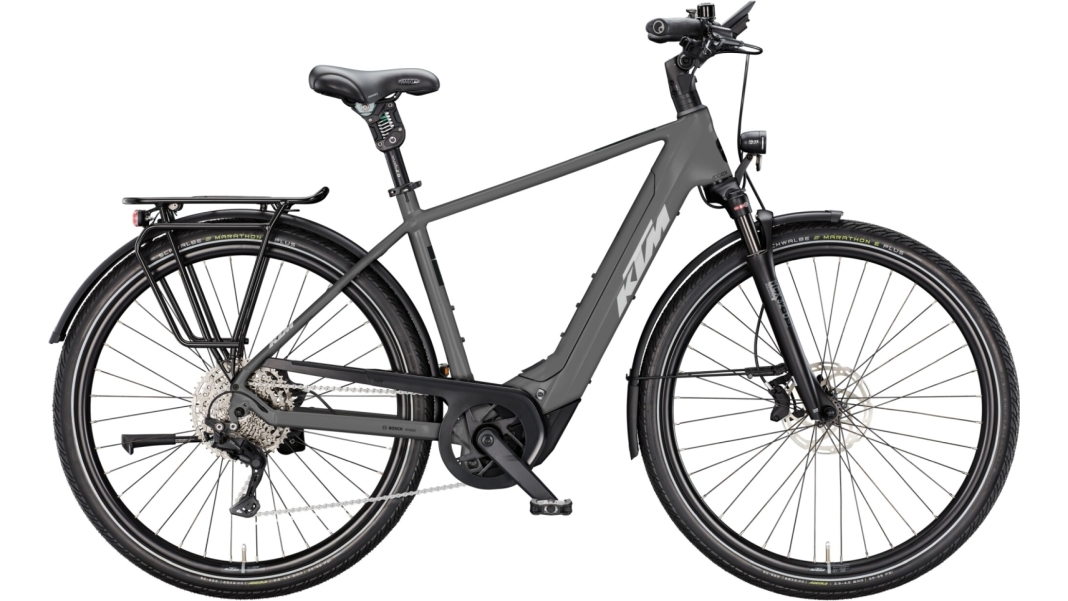

KTM MACINA STYLE 820 XL
