KTM MACINA STYLE 820 Di2 2025 Pedelec > Trekking > Trekkingbike

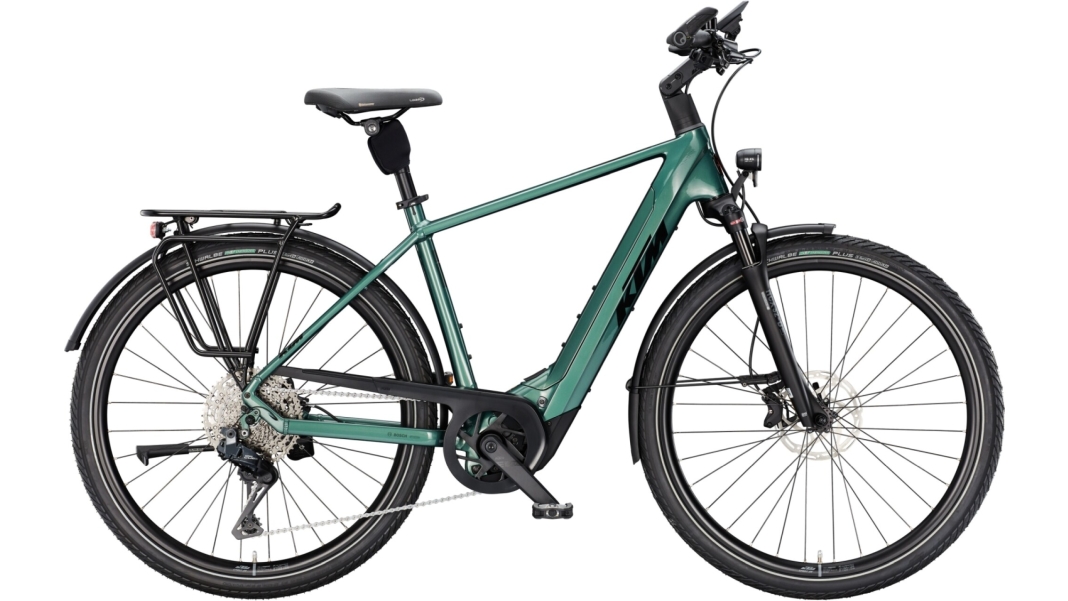

MACINA STYLE 820 Di2

<div>Bereit für ein neues Fahrerlebnis? Das <strong>KTM MACINA STYLE 820</strong> schenkt dir unvergleichlichen Komfort und Zuverlässigkeit:</div><ul><li><strong>High-Performance Bosch PERFORMANCE CX Motor</strong> führt mit maximalem Drehmoment von 85 Nm dich dynamisch durch dich Stadt.</li><li><strong>Langanhaltender 800Wh Bosch PowerTUBE Akku</strong> sorgt für herausragend lange Reichweiten ohne Ladepausen.</li><li><strong>Shimano CUES Di2 U8050-11 SGS Schaltung</strong> für mühelose Gänge wie im Performance-Modus.</li><li><strong>Funktionales Bosch KIOX 500 TFT Display</strong> zeigt dir alle relevanten Informationen auf einen Blick.</li><li><strong>Hohe Sicherheit mit Tektro 4-Piston Bremsen</strong>, die auch bei hohen Geschwindigkeiten präzise verzögern.</li><li><strong>Suntour Air Gabelfederung</strong> mit 63 mm für genussvolle Fahrten, egal auf welchem Untergrund.</li></ul><div>Gleite durch deine Fahrten mit dem großartigen <strong>KTM MACINA STYLE 820</strong> und genieße ein unschlagbares Fahrerlebnis!</div><div><br></div>

Erlebe grenzenlose Abenteuerkraft mit Bosch PERFORMANCE & garantierte Kontrolle durch die Tektro 4-Piston Bremsen!


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Brakes	Tektro TKD-139 / HD-E730 4-piston
Frame	Macina Trekking Onroad 6061 Alloy PT800 Bosch BDU38 / T-5940
Drivetrain	Shimano CUES Di2 U8050-11 SGS shadow
Shift levers	Shimano Di2 EN605 wireless
Fork	Suntour NCX32-D Air LO 63mm 1 1/8
Crankset	KTM E-COMP2 ISIS 170mm Q8
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e11 Sport EPT e-bike
Headset	Acros headset cover OD62 Phyton
Handlebar	KTM Line rizer20 640mm
Grips	Ergon GP30
Stem	KTM Line adjust. 0-60° ICR
Saddle	Selle Royal Lookin Evo
Seatpost	Suntour SP17-NCX suspension 30.9/350
Seat clamp	KTM Line JD-SC99 - 34.9mm
Wheelset	Front derailleur: KTM Line – Shimano Deore M5100 CL 32H 100-5QR, Ambrosio Sport 25 32H 622x25TC, DT Champion 2.0 black - HR: KTM Line - Shimano Deore M5100 CL 32H 135-5QR, Ambrosio Sport 25 32H 622x25TC, DT Alpine II 2.34 black
Front tire	Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
Rear tire	Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
Pedals	Trekking pedal VP-616 anti-slip
Front light	B&M IQ-XS 80Lux
Rear light	B&M Toplight 2C
Mudguards	SKS A55K PET Trek 28" rear
Kickstand	KTM 28" adjustable MY2025
Rack	KTM Tour (Snap-It 2.0 + Monkeyload) child seat + rack clip
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840 – 25 km/h / 85 Nm
Display	Bosch LED remote / Bosch KIOX 500 TFT display
Battery	Bosch PowerTUBE 800Wh (horizontal)
Battery capacity (Wh)	800
Charger	Bosch Standard Charger 4A
