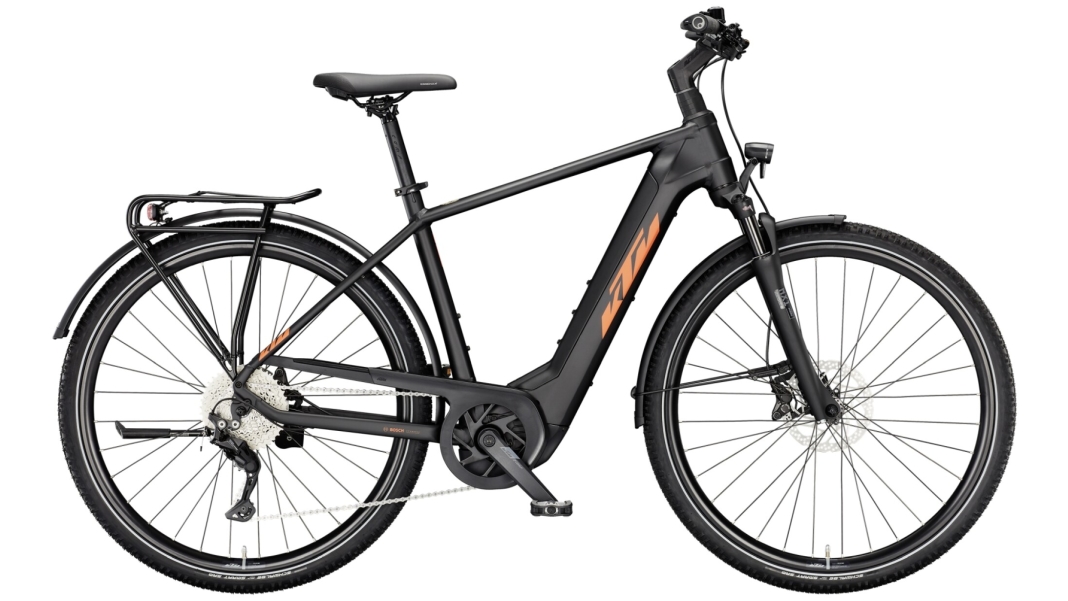

KTM MACINA SPORT CX750 LTD64

The "MACINA SPORT CX750 LTD64" model from KTM, released in 2024, is a high-quality e-bike available at a price of 3,799 EUR. The frame is made from Macina Trekking Onroad Alloy 6061 and features an integrated Bosch Gen.4 motor with a torque of 85Nm, which assists up to a speed of 25 km/h. The battery is a Bosch PowerTUBE 750Wh SMART SYSTEM, which is integrated horizontally into the frame and is charged using a Bosch STANDARD Charger 4A SMART SYSTEM. The total weight of the bike is 25 kg.

Braking is provided by Shimano MT402 (3-F) / MT420 4-piston brakes with a Shimano RT30 CL front brake disc (180 / 160 mm). Gear changes are handled by a Shimano Deore M4120-10 SGS Shadow system, controlled by a Shimano Deore M4100-10 shifter with a display. The fork is a Suntour NX1 Coil LO with 63 mm of travel.

The lighting system comprises a B&M Lumotec MYC LED front light with 50 lux and a B&M Toplight 2C LED rear light. The pedals are aluminium MTB pedals, type VP-195E. The crankset is a KTM E-COMP ISIS with a length of 170 mm and a Q-factor of 16 mm. The cassette is a Shimano Deore M4100-10 with a 11–42T range. Power is transmitted via a KMC e10 EPT e-bike chain.

The handlebars are KTM Comp II low risers, 640 mm wide, with Ergon GP1 SD grips. The stem is a KTM +20° ICR, and the headset is an Acros ICR 1.5" angle limit. The rims are KTM Line – Shimano Deore M6000 CL 32H at both the front and rear, combined with Ryde Rival Sport 32H 622x25C tyres and DT Champion or DT Alpine II spokes.

The tyres are Schwalbe Smart Sam 47-622 RT, both front and rear. The saddle is a Selle Royal Essenza Athletic, mounted on a KTM Comp II seatpost measuring 30.9/350 mm. The seat clamp is a KTM Line 34.9. SKS A55K mudguards in matt black provide protection against dirt and water. A KTM Type 7 chain guard for Bosch Gen.4 and an adjustable KTM 28" kickstand are also fitted. The luggage rack is a KTM Light model with the Snap-it 1.0 system.

The display is a Bosch LED Remote SMART SYSTEM, which shows all key information clearly and enables intuitive operation. Overall, the “MACINA SPORT CX750 LTD64” offers high-quality specifications that are ideally suited to both everyday use and longer tours.
