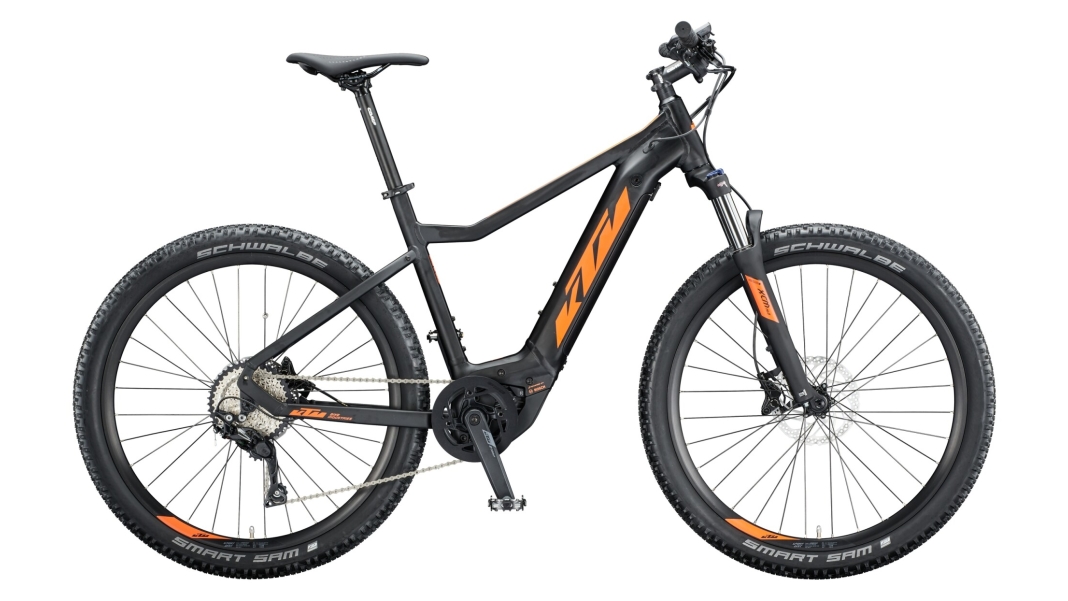

KTM MACINA RACE 271

The "MACINA RACE 271" model from KTM, released in 2020, is a high-performance e-mountain bike characterised by its robust construction and high-quality components. The frame is made from Macina MTB 27.5" Alloy 6061 and is fitted with a Bosch Gen.4 motor, which delivers 75 Nm of torque and assists up to speeds of 25 km/h. The integrated Bosch PowerTUBE battery, with a capacity of 500 Wh, ensures a long-lasting power supply and enables extended rides.

Reliable braking performance is provided by the Shimano MT420 4-piston brakes. Gear changes are handled by the Shimano Deore M6000-10 GS shadow+ system, which enables precise and rapid gear changes. The shift levers are also from the Shimano Deore M6000-10 series and feature a display for better visibility.

The Suntour XCM 34 coil 27.5" fork, with 100 mm of travel and a 15x110 mm taper, provides excellent shock absorption and enhances riding comfort on uneven terrain. The pedals are VP-195E MTB pedals made from a robust aluminium alloy.

The crankset is a KTM COMP ISIS with a length of 170 mm and a Q-factor of 16 mm. The drivetrain is powered by the Shimano E6090-10 e-bike system, which is renowned for its efficiency and reliability. The handlebars are KTM Comp Rizer 15 with a width of 680 mm; the grips are KTM Comp Lock, which ensure a firm grip.

The bike’s stem has a 7° angle and contributes to optimal ergonomics. The tyres are Schwalbe Smart Sam K-Guard 57-584 at both the front and rear, which are known for their versatility and durability. The wheelset consists of KTM Line – Shimano MT400B CL 32H hubs combined with Ambrosio Sport Disc 32H rims and DT Champion 2.0 spokes in black.

The saddle is a KTM Line MTB model and the seatpost is a KTM Comp measuring 30.9/350. The Bosch INTUVIA LCD display with remote control offers a user-friendly interface for controlling the motor and displaying key riding data.

Overall, the KTM MACINA RACE 271 offers a well-thought-out combination of high-quality components and modern e-bike technology, making it ideally suited to both sporty riding and longer tours.
