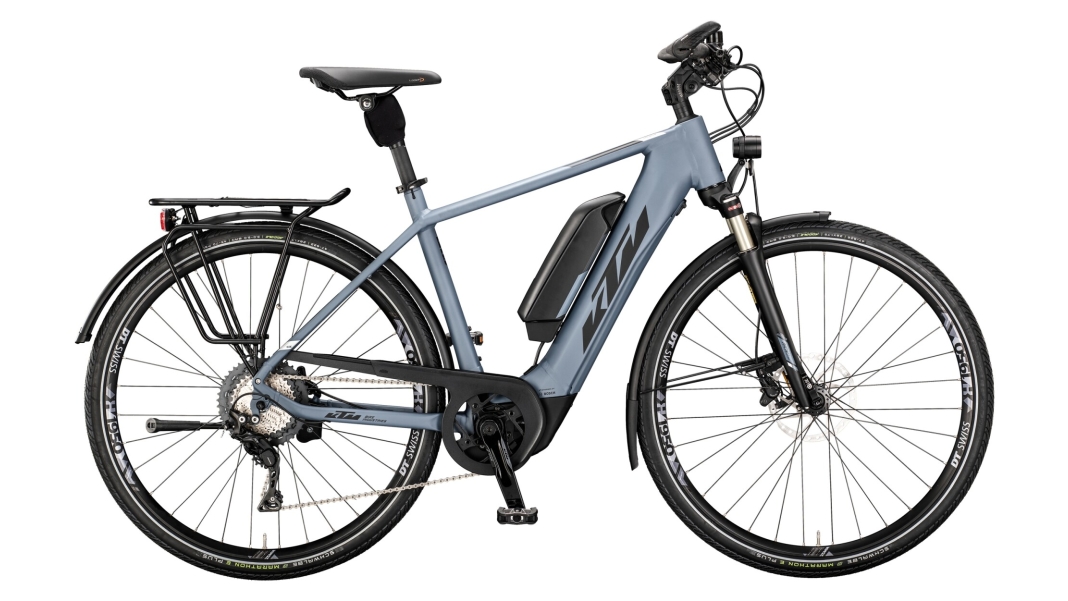

KTM MACINA MILA

The "MACINA MILA" model from KTM, released in 2020, is a high-quality e-bike that impresses with its technical specifications and features. The frame is made from Macina Trekking Onroad Alloy 6061 and is fitted with a dual PT-PP 500 Wh Bosch Gen.4 / T-0900 battery, ensuring stability and durability. The brakes are Shimano MT420 4-piston (3-finger) calipers, which deliver reliable and powerful braking performance.

The derailleur is a Shimano Deore XT M8000-11 GS shadow+, which, together with the Shimano Deore XT M8000-11 shifter with display, enables precise and easy gear selection. The fork is a Suntour NCX-E air LO with 63mm travel and 15QLC, which ensures a comfortable ride. Optimal visibility is provided by the B&M Lumotec IQ-X LED front light with 15 lux and the B&M Toplight View LED rear light.

The pedals are Trekk VP-616 (anti-slip) pedals, which offer a secure grip. The crankset is the KTM TEAM ISIS 170mm Q16, whilst the drivetrain is powered by a Shimano E8000-11 e-bike motor. The handlebars are KTM Line Rizer20 with a width of 640mm, and the grips are Ergon GP3 SD with bar ends, which provide additional comfort.

The stem is a KTM Line Kiox Adjust 0–25°, which is individually adjustable. The tyres are Schwalbe Marathon E-Plus Perf. DD SmartGuard 47-622 at the front and rear, providing excellent grip and puncture protection. The wheelset consists of KTM Line – DT Swiss 350 CL 32H 100-15TA / DT Swiss H1950 32H 622x25TC / DT Alpine III 2.34 black, ensuring robust and long-lasting performance.

The saddle is a Selle Royal Lookin, which, together with the Suntour SP17-NCX suspension seatpost (30.9/350), provides additional comfort. The mudguards are SKS A55K 55mm in matt black, which protect the bike from dirt. A Hebie 28" Adjust kickstand ensures stability when parking the bike.

The luggage rack is a KTM Racktime Tour (Snap-It), which offers versatile transport options. The motor is a Bosch PERFORMANCE CX Gen.4 – 25 km/h / 75 Nm, which, together with the Bosch PowerTUBE 5 Wh horizontal battery and the Bosch PowerPACK 5 Wh, provides powerful assistance. The display is a Bosch KIOX TFT display with remote, which clearly shows all the key information.

Overall, the MACINA MILA offers a well-thought-out combination of high-quality components and innovative technology, making it a reliable companion for a variety of uses.
