Brakes	Shimano MT402 (3-F) / MT420 4-Piston
Frame	Macina Trekking Onroad 6061 Alloy PT800 Bosch BDU38 / T-5940
Drivetrain	Shimano Deore XT M8130-11 LG shadow+
Shift levers	Shimano Deore XT M8130-11 LG
Fork	Suntour NX1 coil LO 63mm
Crankset	KTM E-TEAM ISIS 170mm Q16
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e11 Sport EPT e-bike
Headset	Acros headset cover OD62 Phyton
Handlebar	KTM TEAM low-riser 640mm
Grips	Ergon GP30
Stem	KTM Line adjust. 0-60° ICR
Saddle	Selle Royal Lookin Athletic 3D
Seatpost	KTM Line Elegance suspension 30.9/300
Seat clamp	KTM Line JD-SC99 - 34.9mm
Wheelset	Front derailleur: KTM Line - Shimano Deore M6000 CL 32H 100-5QR, Ryde Rival Sport 32H 622x25C, DT Champion 2.0 black - HR: KTM Line - Shimano Deore M5100 CL 32H 135-5QR, Ryde Rival Sport 32H 622x25C, DT Alpine II 2.34 black
Front tire	Schwalbe Smart Sam Perf. 47-622 Reflex
Rear tire	Schwalbe Smart Sam Perf. 47-622 Reflex
Pedals	VP-195E alloy MTB pedal
Front light	B&M Briq-S 60Lux
Mudguards	Racktime Aluminium 52mm B&M Xeltec
Kickstand	KTM 28" adjustable
Rack	Racktime Alumee (Snap-It 2.0)
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840 – 25 km/h / 85 Nm
Display	Bosch LED remote / Bosch KIOX 300 TFT display
Battery	Bosch PowerTUBE 800Wh (horizontal)
Battery capacity (Wh)	800
Charger	Bosch Standard Charger 4A

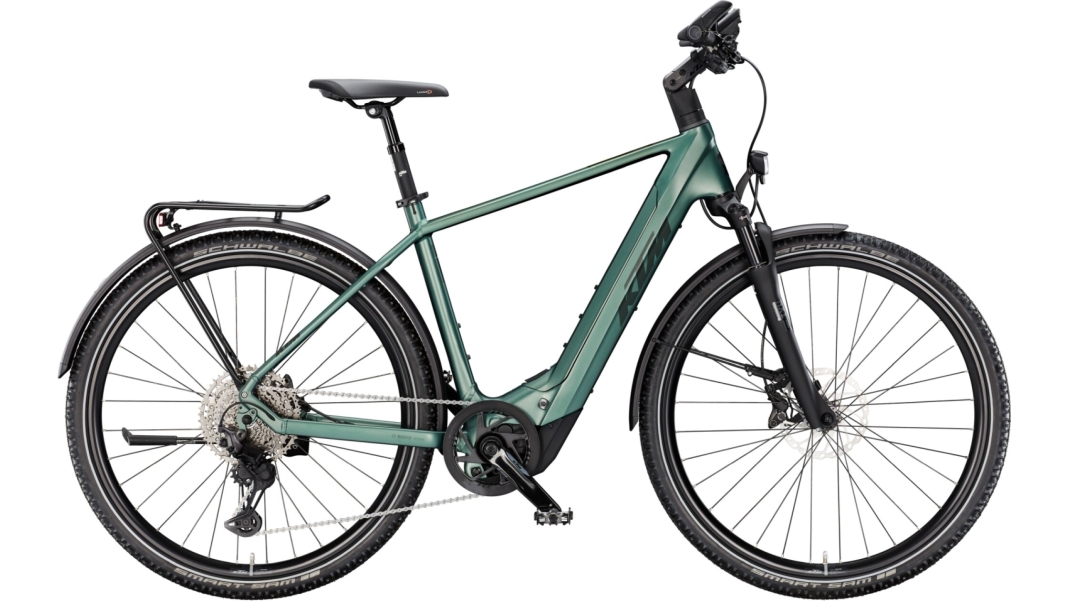

KTM MACINA CROSS CX 810 LFC
