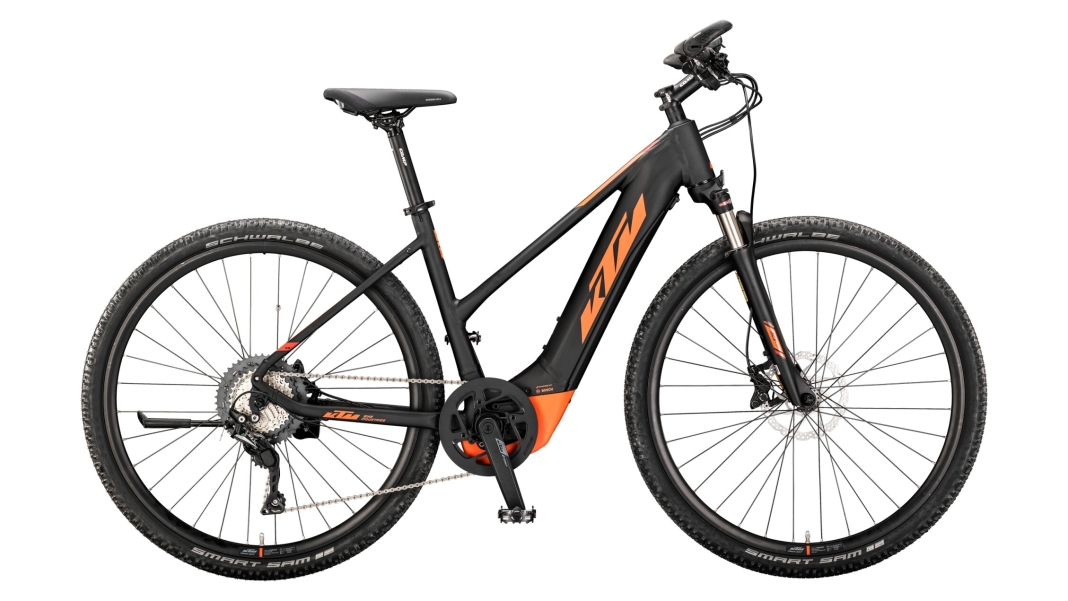

KTM MACINA CROSS 620

The "MACINA CROSS 620" model from KTM, released in 2020, stands out thanks to a range of high-quality technical components and features. The e-bike’s frame is made from Macina Trekking Offroad Alloy 6061 and is fitted with a PT625Wh Bosch Gen.4 battery, ensuring a sturdy and durable construction.

Braking performance is provided by Shimano MT420 4-piston brakes with 3-finger levers, which enable reliable and powerful deceleration. Gear changes are handled by the Shimano SLX M7000-11 GS shadow+ system, which, in combination with the Shimano SLX M7000-11 shifter with display, offers precise and smooth gear selection.

Suspension is provided by a Suntour NCX-D coil LO fork with 63 mm of travel, ensuring comfort and control on uneven terrain. The e-bike’s pedals are VP-195E aluminium MTB pedals, which provide good grip and stability.

The drive system of the “MACINA CROSS 620” is based on the Shimano E8000-11 e-bike system, which, in combination with the Bosch PERFORMANCE CX Gen.4 motor, offers powerful assistance up to a speed of 25 km/h and a torque of 75 Nm. The motor is powered by a Bosch PowerTUBE 625Wh horizontal battery, which ensures a long range. The Bosch INTUVIA LCD display with remote control allows for easy control and monitoring of riding data.

The handlebars are KTM Comp low-riser bars with a width of 640 mm, combined with Ergon GP3 SD grips including bar-ends, which ensure a high level of comfort and versatile grip options. The stem is a KTM Comp with a 17° angle, which promotes an ergonomic riding position.

The e-bike is fitted with Schwalbe Smart Sam Performance tyres in size 47-622 at both the front and rear, which are renowned for their good grip and durability. The wheelset consists of KTM Line – Shimano Deore M6000 CL hubs with 32 spokes, along with Ambrosio Track Disc rims in size 622x20C and DT Champion 2.0 black spokes.

The saddle is a Selle Royal Essenza, which, together with the KTM Comp seatpost (30.9/350 mm), ensures a comfortable ride. A KTM 28" adjustable kickstand completes the spec and offers practical parking options.

In summary, the “MACINA CROSS 620” from KTM is a robust and high-performance e-bike that is ideally suited to both off-road use and longer tours. High-quality components and well-thought-out design details make it a reliable companion on a wide variety of rides.
