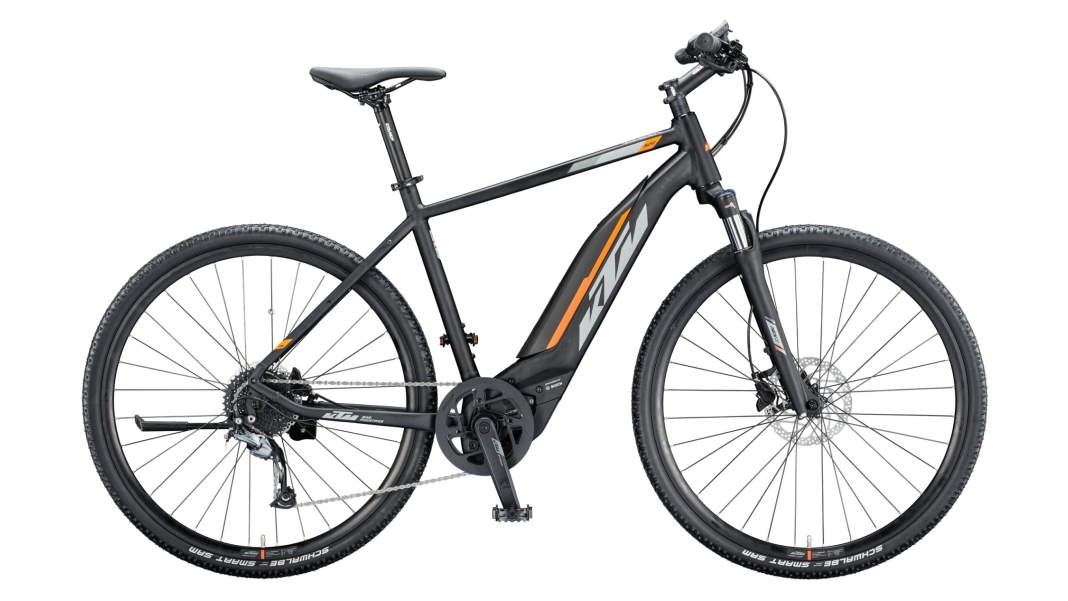

KTM MACINA CROSS 520

The "MACINA CROSS 520" model from KTM, released in 2020, is a high-quality e-bike designed specifically for trekking and off-road adventures. The frame is made from Macina Trekking Offroad Alloy 6061 MC and is fitted with a UC-PP500Wh Bosch Gen.4 / T-0210 unit, which provides a robust and durable foundation for the e-bike.

For the brakes, the model uses Shimano MT200 2-piston brakes, which are renowned for their reliability and powerful braking performance. The drivetrain is a Shimano Acera M3000-9 SGS Shadow, which, together with the Shimano Altus M2010-9 shifter with display, enables precise and smooth gear changes. The bike’s fork is a Suntour NEX-E25 coil NLO with 63mm of travel, which ensures comfortable suspension on uneven terrain.

The MACINA CROSS 520 is fitted with C28DU aluminium MTB pedals, which ensure good power transfer. The crankset is a KTM COMP ISIS with a length of 170 mm and a Q-factor of 16 mm. The drivetrain is supported by the Shimano E6070-9 e-bike system, which is renowned for its efficiency and reliability.

The bike’s handlebars are KTM Comp low risers, 640 mm wide, which, together with the KTM Comp Ergo Lock grips, ensure comfortable handling. The stem is a KTM Comp with a 17° angle, allowing for a comfortable riding position. The tyres are Schwalbe Smart Sam K-Guard 42-622, fitted to both the front and rear, which are known for their good traction and puncture resistance.

The wheelset consists of KTM Line – Shimano Acera M3050 CL 32H hubs and Ambrosio Track Disc 32H 622x20C rims, laced with DT Champion 2.0 black spokes. The saddle is a KTM Line Cross, which is valued for its comfort on long rides, and the seatpost is a KTM Comp 30.9/350, known for its stability.

The e-bike is fitted with an adjustable KTM 28" kickstand, which makes it easier to park the bike. The MACINA CROSS 520’s motor is a Bosch PERFORMANCE CX Gen.4 with a top assisted speed of 25 km/h and a torque of 75 Nm. The battery is a Bosch PowerPACK with a capacity of 500 Wh, which enables a long range. The display is a Bosch INTUVIA LCD display with a remote control, allowing for easy control and monitoring of ride data.

Overall, the MACINA CROSS 520 from KTM offers an excellent combination of performance, comfort and reliability, making it an ideal choice for trekking and off-road enthusiasts.
