Brakes	Tektro HD-T390 / E390 2-piston
Frame	Macina City Alloy 6061 PT800 Bosch BDU38 / T-5960
Shift levers	Shimano Nexus 5 Revoshifter
Fork	Suntour NCX32-D coil LO 63mm (Heavy Duty) 1 1/8
Crankset	KTM E-COMP2 ISIS 170mm Q8
Sprocket	Esjot 30T
Drive	KMC Z1eHX
Headset	Acros AICR internal 1.1/8"-1.5" angle limit
Handlebar	Ergotec Lady Town 630mm
Grips	Ergon GP1 short
Stem	Ergotec Sepia 50 XL, adjustable 0–60°
Saddle	Selle Royal Viaggio URC
Seatpost	by Schulz G. 2 ST suspension 30.9/350
Seat clamp	KTM Line JD-SC99 - 34.9mm
Wheelset	Front derailleur: KTM Line - Shimano Deore M5100 CL 36H 100-5QR, Ryde Andra29 36H 622x29C, DT Alpine II 2.34 black - HR: KTM Line - Shimano Nexus 5 Disc CL 36H 135-10, Ryde Andra29 36H 622x29C, DT Alpine II 2.34 black
Front tire	Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex
Rear tire	Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex
Pedals	Trekking pedal VP-616 anti-slip
Front light	B&M Briq-S 60Lux
Rear light	B&M Toplight 2C
Mudguards	SKS B55 CAB City 28" rear
Kickstand	KTM 28" adjustable MY2025
Rack	KTM Tour (Snap-It 2.0 + Monkeyload) child seat + rack clip
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840 – 25 km/h / 85 Nm
Display	Bosch LED remote / Bosch INTUVIA LCD display
Battery	Bosch PowerTUBE 800Wh (horizontal)
Battery capacity (Wh)	800
Charger	Bosch Standard Charger 4A

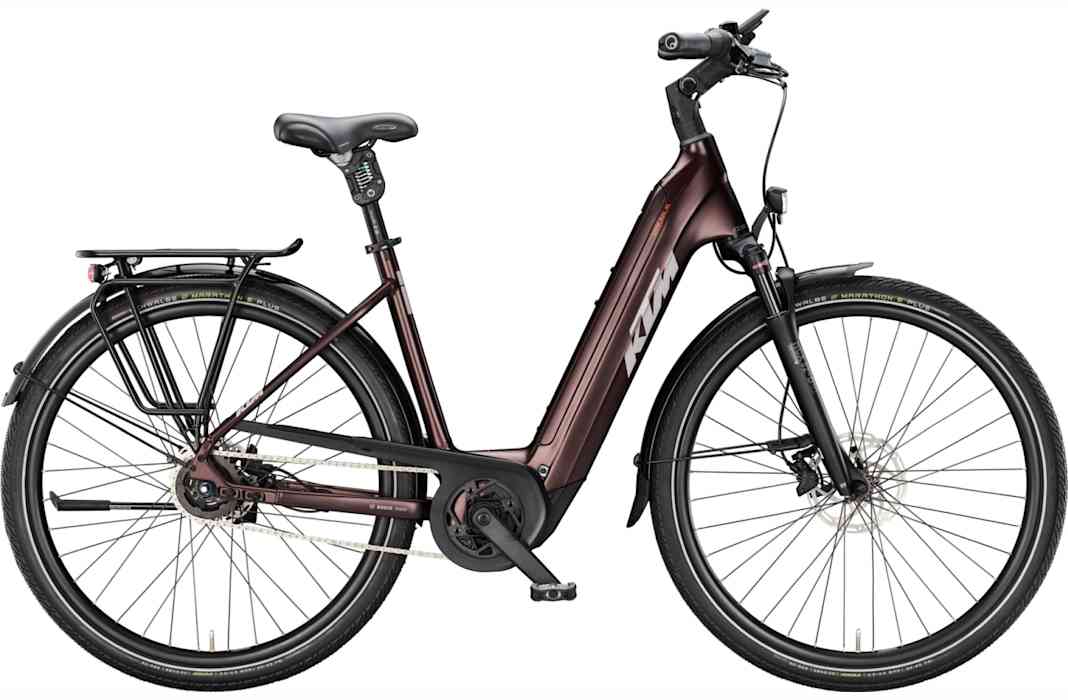

KTM MACINA CITY 820 XL
