Brakes	Magura MTC 2-piston
Frame	Macina City Alloy 6061 Belt PT800 Bosch BDU38 / T-5970
Shift levers	Enviolo Automatiq Cliq Pro Controller
Fork	Suntour NCX32-E Air LO 63mm 15QLC Al 1 1/8
Crankset	KTM E-TEAM2 ISIS 170mm Q8
Sprocket	Gates Carbon-Drive CDX 22T Enviolo
Drive	Gates carbon drive belt 122T CDX
Headset	Acros headset cover OD62 Phyton
Handlebar	KTM Line Noirette Plus 660mm
Grips	Ergon GP1 Evo
Stem	KTM adjust. 0-60° ICR
Saddle	Selle Royal Lookin Evo
Seatpost	Suntour SP17-NCX suspension 30.9/350
Seat clamp	KTM Line JD-SC99 - 34.9mm
Wheelset	Front wheel: KTM Line - Shimano Deore M6000 CL 36H 100-5QR, Ryde Rival Sport 36H 622x25C, DT Champion 2.0 black - HR: KTM Line - Enviolo TR-380% 36H, Ryde Rival Sport 36H 622x25C, DT Alpine II 2.34 black
Front tire	Continental E-Contact Plus 50-622
Rear tire	Continental E-Contact Plus 50-622
Pedals	Trekking pedal VP-616 anti-slip
Front light	B&M IQ-XS 100–150 lux HighBeam
Rear light	B&M Dart Brex
Mudguards	SKS B55 CAB City 28" rear
Kickstand	KTM 28" adjustable MY2025
Rack	KTM Tour (Snap-It 2.0 + Monkeyload) child seat + rack clip
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840 – 25 km/h / 85 Nm
Display	Bosch LED remote / Bosch KIOX 500 TFT display
Battery	Bosch PowerTUBE 800Wh (horizontal)
Battery capacity (Wh)	800
Charger	Bosch Standard Charger 4A

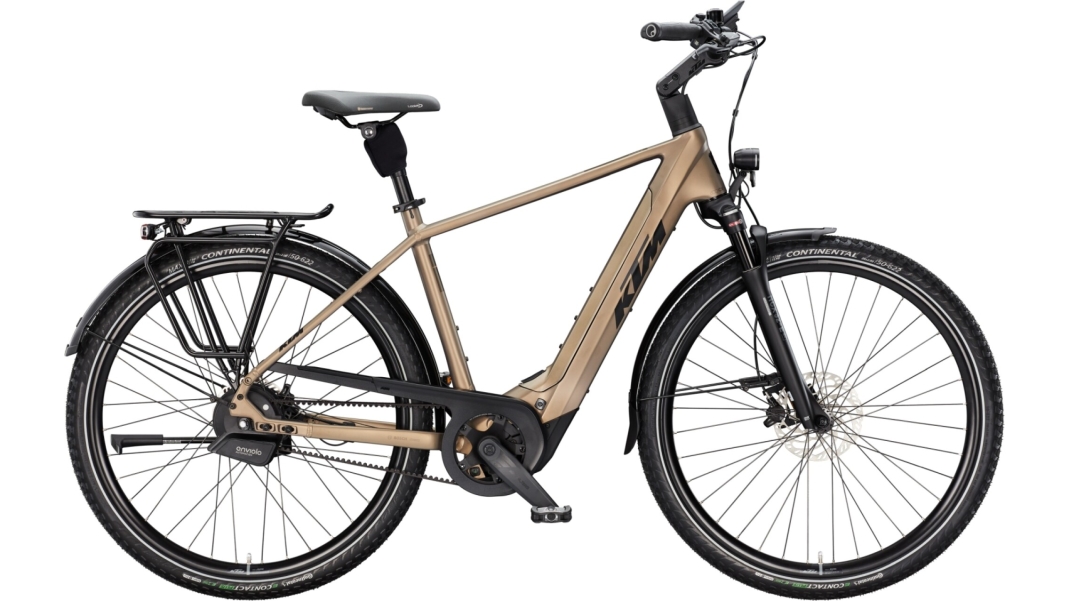

KTM MACINA CITY 810 Belt
