Brakes	Shimano Deore M6100 / M6120 4-piston
Front brake disc	Shimano RT64 CL 203
Rear brake disc	Shimano EM600 CL 180 magnet
Frame	Macina Chacana Al6061 125 UDH\|PT800 Bosch BDU38/M5290
Frame material	Aluminium
Drivetrain	Shimano CUES Di2 U8050-11 SGS shadow
Shift levers	right: Shimano MT500 SP-Lever - left: Shimano CUES Di2 EN605 Switch
Drivetrain type	Derailleur
Fork	FOX 34 Float 29" AWL E 130mm 15x110
Rear shock	FOX Float Rhythm 2-position 230x57.5
Crankset	left: KTM E-TEAM2 ISIS 170mm Q8 - right: KTM E-TEAM2 ISIS 170mm Q8
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e500 LG e-bike
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM COMP Trail35 rizer15 760mm
Grips	Ergon GA30
Stem	KTM TEAM Trail35
Saddle	Ergon SM10 E-Mountain
Seatpost	KTM COMP II internal dropper post 34.9 T:150
Seat clamp	KTM TEAM Light CL-FJ21 – 39.0 mm x 12
Wheelset	front: Mavic E-Crossride 29 CL 110x15TA\|622x30TSS TLR - rear: Mavic E-Crossride 29 CL 148x12TA\|622x30TSS HG TLR
Wheel size	29"/622mm
Front tire	Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
Rear tire	Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
Pedals	MTB pedal flat VPE-527 alloy
Front light	Litemove AE-200 170-200Lux HighBeam
Rear light	Supernova TL3Z
Mudguards	front: Racktime Aluminium 72mm - rear: Racktime Aluminium 72mm B&M Supernova
Kickstand	KTM 28" adjustable MY2025
Rack	KTM RACKTIME ALUMEE
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840
Display	Bosch KIOX 500 TFT display
Battery	Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Battery capacity (Wh)	800
Charger	Bosch STANDARD Charger 4A

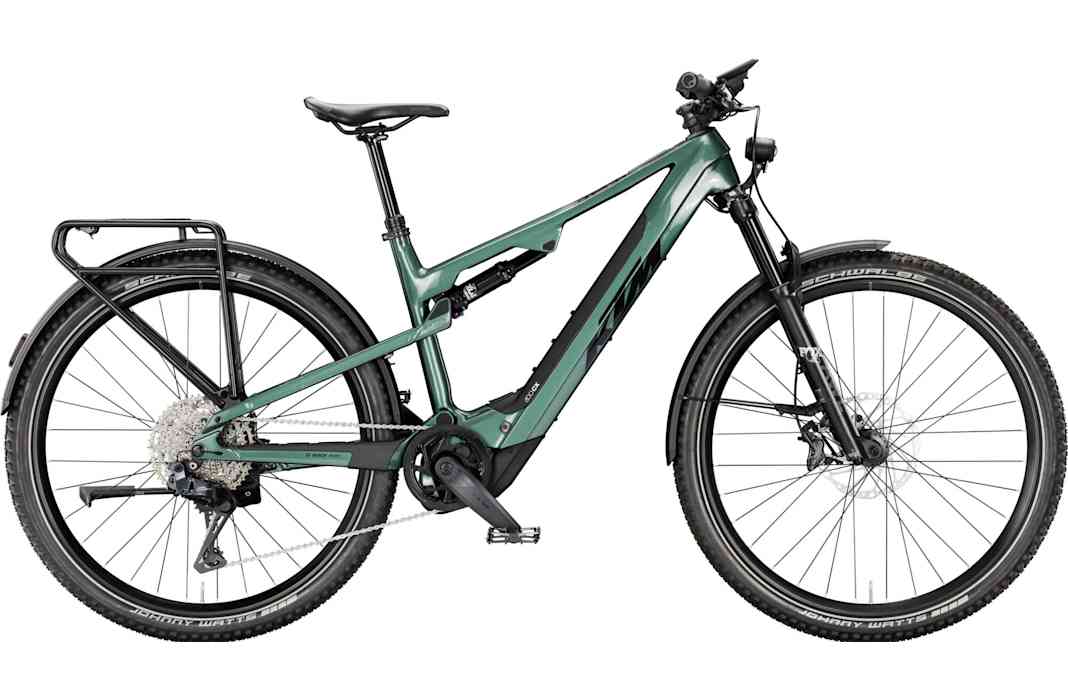

KTM MACINA CHACANA 891 LFC Di2
