Brakes	Shimano Deore XT M8100 / M8120 4-piston
Frame	Macina Chacana Al 6061 SLL 125 UDH PT800 Bosch BDU38/M5290
Drivetrain	Shimano Deore XT M8100-12 SGS shadow+
Shift levers	Shimano Deore XT M8100-12
Fork	FOX 34 Float AWL 29" e-bike 130mm 15x110
Rear shock	FOX Float DPS Performance 230x57.5
Fork travel (mm)	130
Crankset	KTM E-TEAM ISIS 170mm Q16
Sprocket	Shimano Deore M6100-12 / 10-51
Drive	Shimano M6100-12
Headset	Acros AICR internal 1.1/8"-1.5" angle limit
Handlebar	KTM COMP Trail35 rizer15 760mm
Grips	Ergon GA20
Stem	KTM TEAM Trail35
Saddle	Selle San Marco RND Manganes Rails
Seatpost	KTM COMP II internal dropper post 34.9 T:150
Seat clamp	KTM TEAM Light CL-FJ21 – 39.0 mm x 12
Wheelset	KTM Line - DT Swiss 370 CL 28H 110/15TA, Ambrosio E30 Trail 28H 622x30TC, DT Champion 2.0 black \ KTM Line - DT Swiss 370 CL 28H 148/12 TA, Ambrosio E30 Trail 28H 622x30TC, DT Champion 2.0 black
Front tire	Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622
Rear tire	Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622
Pedals	MTB pedal flat VPE-527 alloy
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840 – 25 km/h / 85 Nm
Display	Bosch LED remote / Bosch KIOX 300 TFT display
Battery	Bosch PowerTUBE 800Wh (horizontal)
Battery capacity (Wh)	800

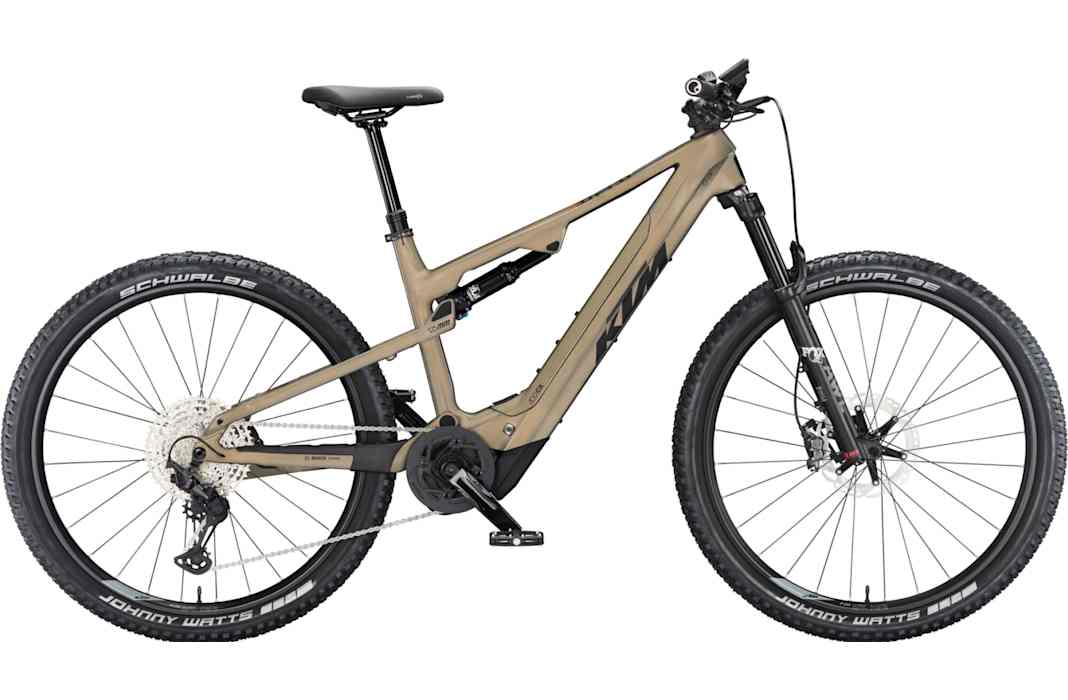

KTM MACINA CHACANA 891
