Brakes	Shimano M4100 / MT420 4-Piston
Front brake disc	Shimano RT64 CL 203
Rear brake disc	Shimano EM600 CL 180 magnet
Frame	Macina Chacana 29" Alloy 6061 125 UDH\|PT750 Bosch BDU37/M2286
Frame material	Aluminium
Drivetrain	Shimano CUES Di2 U8050-11 SGS shadow
Shift levers	right: Shimano MT500 SP-Lever - left: Shimano CUES Di2 EN605 Switch
Drivetrain type	Derailleur
Fork	RockShox 35 Silver TK 29" 130mm 15x110
Rear shock	RockShox Deluxe Select+ 230x57.5
Crankset	left: KTM E-COMP ISIS 170mm Q16 - right: KTM E-COMP ISIS 170mm Q16
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e500 LG e-bike
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM COMP Trail35 rizer15 760mm
Grips	Ergon GA20
Stem	KTM TEAM Trail35
Saddle	Selle San Marco RND Manganes Rails
Seatpost	KTM COMP dropper internal 30.9 T:150
Seat clamp	KTM Line JD-SC140A - 35.0mm
Wheel size	29"/622mm
Front tire	Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622
Rear tire	Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622
Front hub	Shimano TC500B CL 32H 110-15TA
Rear hub	Shimano TC500B CL 32H 148-12TA
Spokes	front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black
Pedals	MTB pedal flat VPE-527 alloy
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3740
Display	Bosch KIOX 300 TFT display
Battery	Bosch PowerTUBE 750Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Battery capacity (Wh)	750
Charger	Bosch STANDARD Charger 4A

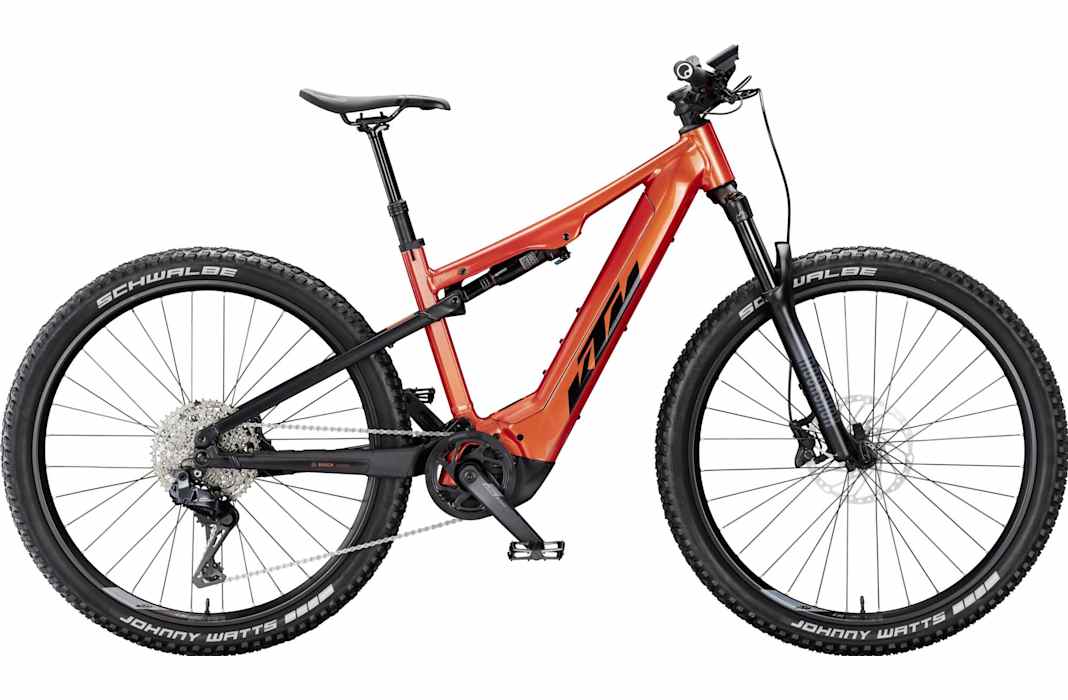

KTM MACINA CHACANA 792 Di2
