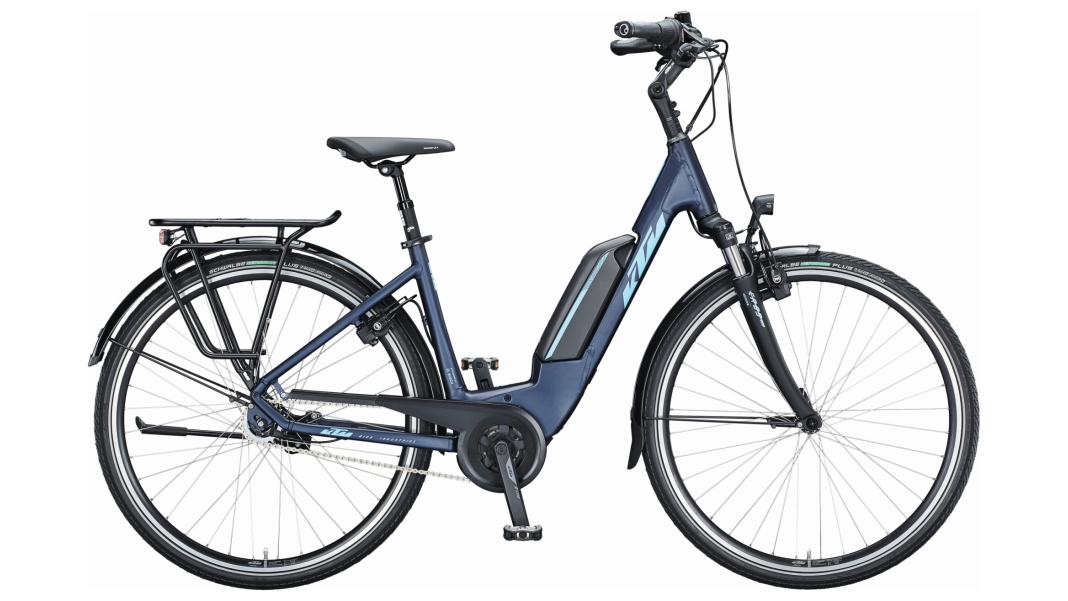

The "MACINA CENTRAL 7 RT" model from KTM, released in 2021, is a high-quality e-bike designed for urban use and available for 2,499 EUR. The frame is made from Macina City US Alloy 6061 and incorporates the Bosch Gen.3 motor and a Bosch PowerPACK 400Wh battery, ensuring reliable and efficient assistance. With the Bosch ACTIVE Gen.3 motor, which delivers a top speed of 25 km/h and 40 Nm of torque, and the Bosch INTUVIA LCD display with remote, the bike is perfectly equipped for comfortable and controlled rides.
The MACINA CENTRAL 7 RT is fitted with Magura HS11 Evo2 hydraulic brakes, which ensure safe and powerful braking. The gear system consists of a Shimano Nexus 7 Revoshifter, which enables simple and precise gear changes. The Suntour CR85-E25 fork, with 63 mm of travel, provides additional comfort on uneven roads.
For lighting, a B&M Lumotec UPP LED front light (30 lux) and a B&M Toplight 2C LED rear light are fitted, ensuring good visibility and safety on the road. The pedals are non-slip VP-616 trekking pedals, which offer a secure grip.
The crankset consists of a KTM LINE BNI with a length of 170 mm and a Q-factor of 16 mm. The rear sprocket is a Shimano Nexus with 22 teeth, and the drivetrain uses a KMC Z1eHX chain. The handlebars are KTM Line Noirette Plus, 660 mm wide, fitted with ergonomic Ergon GP1 grips without bar ends. The stem is an adjustable KTM Line UP3, which can be adjusted from 0 to 90 degrees. The headset is a Ritchey Zero Logic OE with a diameter of 1.1/8".
The tyres are Schwalbe Energizer Plus Perf. GreenGuard, size 40-622, fitted to robust wheelsets: at the front, a KTM Line – Shimano Acera T3000 36H 100-5QR / Ambrosio Track 36H 622x20C / DT Champion 2.0 silver; and at the rear, a KTM Line – Shimano Nexus 7 36H 135-5QR coaster brake / Ambrosio Track 36H 622x20C / DT Alpine II 2.34 silver. The saddle is a comfortable Selle Royal Essenza, fitted to a suspension-equipped KTM Line Elegance seatpost measuring 30.9/300.
Additional features include SKS B55 mudguards in gloss black with spoilers, an SKS Chainbow chain guard for 38T, an adjustable KTM stand for 28" wheels, and a KTM Racktime Tour luggage rack with a snap-it system (1+2).
Overall, the KTM MACINA CENTRAL 7 RT offers a well-thought-out combination of comfort, safety and performance, making it an ideal companion for everyday city cycling.
| Brakes | Magura HS11 Evo2 |
| Frame | Macina City US Alloy 6061; Si-PP 500 Wh Bosch Gen. 3 / T-9680 |
| Shift levers | Shimano Nexus 7 Revoshifter |
| Fork | Suntour CR85-E25 coil 63mm |
| Crankset | KTM LINE BNI 170mm Q16 |
| Sprocket | Shimano Nexus 22T |
| Drive | KMC Z1eHX |
| Headset | Ritchey Zero Logic OE 1.1/8" |
| Handlebar | KTM Line Noirette Plus 660mm |
| Grips | Ergon GP1 short without bar end |
| Stem | KTM Line UP3, adjustable 0–90° |
| Saddle | Selle Royal Essenza |
| Seatpost | KTM Line Elegance suspension 30.9/300 |
| Wheelset | v:KTM Line - Shimano Acera T3000 36H 100-5QR / Ambrosio Track 36H 622x20C / DT Champion 2.0 silver,h:KTM Line – Shimano Nexus 7 36H 135-5QR coaster brake / Ambrosio Track 36H 622x20C / DT Alpine II 2.34 silver |
| Tires | Schwalbe Energizer Plus Perf. GreenGuard 40-622 |
| Pedals | Trekking pedal VP-616 anti-slip |
| Front light | B&M Lumotec UPP LED 30 lux |
| Rear light | B&M Toplight 2C LED |
| Mudguards | SKS B55 55mm black glossy spoiler |
| Kickstand | KTM 28" adjust |
| Rack | KTM Racktime Tour (Snap-It 1+2) |
| Motor manufacturer / model | Bosch ACTIVE Gen.3 – 25 km/h / 40 Nm |
| Display | Bosch INTUVIA LCD Display with Remote |
| Battery | Bosch PowerPACK 400Wh |
