Brakes	Shimano MT402 (3-F) / MT420 4-Piston
Frame	Macina Trekking Onroad 6061 Alloy PT800 Bosch BDU38 / T-5940
Drivetrain	Shimano CUES Di2 U8050-11 SGS shadow
Shift levers	Shimano Di2 EN605 wireless
Fork	FOX 34 Float 27.5" AWL e-bike 100mm 15x110
Crankset	KTM E-TEAM2 ISIS 170mm Q8
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e11 Sport EPT e-bike
Headset	Acros headset cover OD62 Phyton
Handlebar	KTM TEAM II rizer15 680mm
Grips	Ergon GP1 Evo
Stem	KTM Line adjust. 0-60° ICR
Saddle	Selle Royal Lookin Evo
Seatpost	KTM TEAM internal dropper post with travel adjustment. 30.9 T:175
Wheelset	Front: Mavic E-Speedcity 27 CL 110x15TA\|622x30TSS TLR - Rear: Mavic E-Speedcity 27 CL 135/5QR\|622x25TSS HG TLR
Front tire	Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
Rear tire	Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
Pedals	MTB pedal flat VPE-527 alloy
Front light	Litemove AE-130 90–130 lux HighBeam
Mudguards	Racktime Aluminium 72mm B&M Xeltec
Kickstand	KTM 28" adjustable MY2025
Rack	KTM Alumee (Snap-It 2.0 + Monkeyload) + rack clip
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840 – 25 km/h / 85 Nm
Display	Bosch LED remote / Bosch KIOX 500 TFT display
Battery	Bosch PowerTUBE 800Wh (horizontal)
Battery capacity (Wh)	800
Charger	Bosch Standard Charger 4A

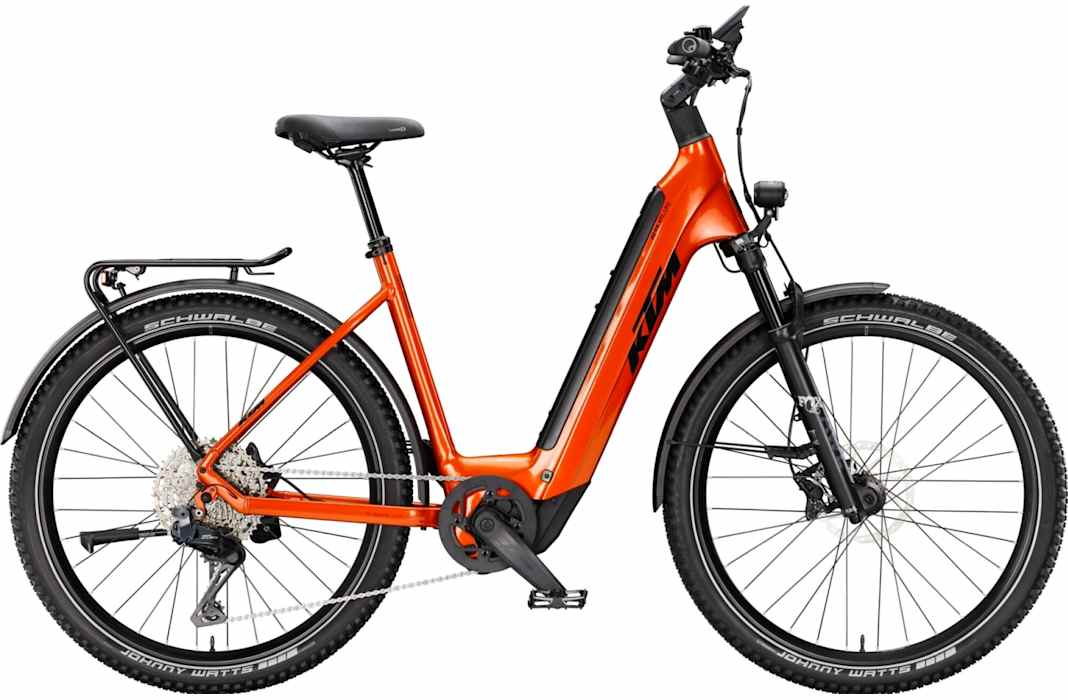

KTM MACINA AERA 871 LFC
