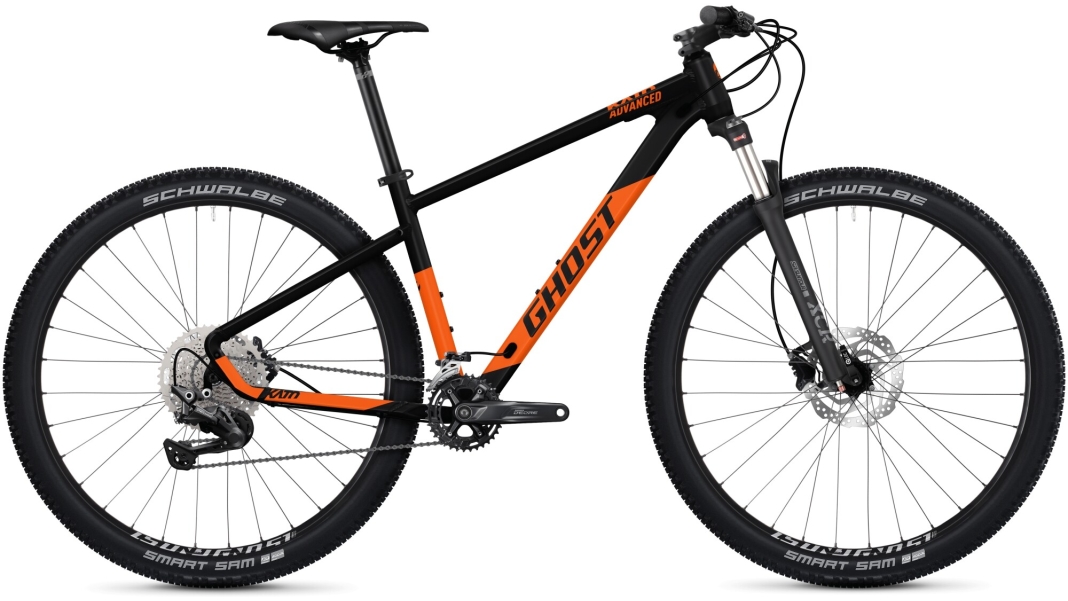

Ghost Kato Advanced 29 AL

The Ghost “Kato Advanced 29 AL” model from 2023 is a versatile mountain bike, available at a price of 949 EUR. The bike’s frame is made of aluminium – specifically, ALUMINIUM KATO AL – which ensures a robust yet lightweight construction. With a total weight of 14 kg and a maximum load capacity of 120 kg, this bike is both stable and light enough for challenging rides.

The Kato Advanced 29 AL’s braking system comprises Shimano BRMT200 180 mm disc brakes combined with Shimano BLMT200 brake levers and a Shimano SMRT10 180 mm front brake disc. These components ensure reliable and powerful braking performance under a wide range of conditions. The drivetrain is a Shimano Deore RDM4120 10-speed system, complemented by a Shimano Deore FDM4100M front derailleur, offering a total of 20 gears. This setup ensures precise and smooth gear changes.

The SR Suntour XCR RLR AIR fork, with 100 mm of travel, offers good damping and control on uneven terrain. The bottom bracket is a Shimano BB52 BSA, whilst the crankset consists of a Shimano Deore FCM4100 3626. The cassette is a Shimano Deore CSM4100 1142, and power is transmitted via a KMC 10-speed chain.

The bike’s handlebars are Ground Fiftyone with a diameter of 31.8 mm and a width of 740 mm, ensuring good control and stability. The grips are MTB Grip models, which ensure comfort and a secure grip. The stem is also from Ground Fiftyone, with a length of 50 mm and an angle of 9 degrees. The headset is designated 14106.

The rims on the Kato Advanced 29 AL are Rodi Excalibur XC19 models, both front and rear, and the spokes are DT Swiss 2.0. The tyres are Schwalbe Smart Sam 29x2.25, which are known for their good grip and durability. The front hub is a Shimano HBTX505 QR 100 mm and the rear hub is a Shimano FHTX505 QR 135 mm.

Riding comfort is ensured by a Selle Italia XBase saddle, mounted on a GHOST SP DC1 seatpost with a diameter of 31.6 mm. The seatpost clamp is a GHOST XC 68 with a diameter of 34.9 mm.

In terms of geometry, the bike has a reach of 426 mm, a stack of 632 mm, a seat tube length of 480 mm and a top tube length of 615 mm. The head tube angle is 68 degrees and the seat tube angle is 74 degrees. The head tube is 125 mm long, the chainstay length is 450 mm and the bottom bracket drop is 60 mm. The standover height is 765 mm, the crank length is 175 mm and the wheelbase measures 1154 mm.

In summary, the 2023 Ghost Kato Advanced 29 AL offers solid and well-thought-out specifications at an attractive price, making it an excellent choice for mountain bike enthusiasts.
