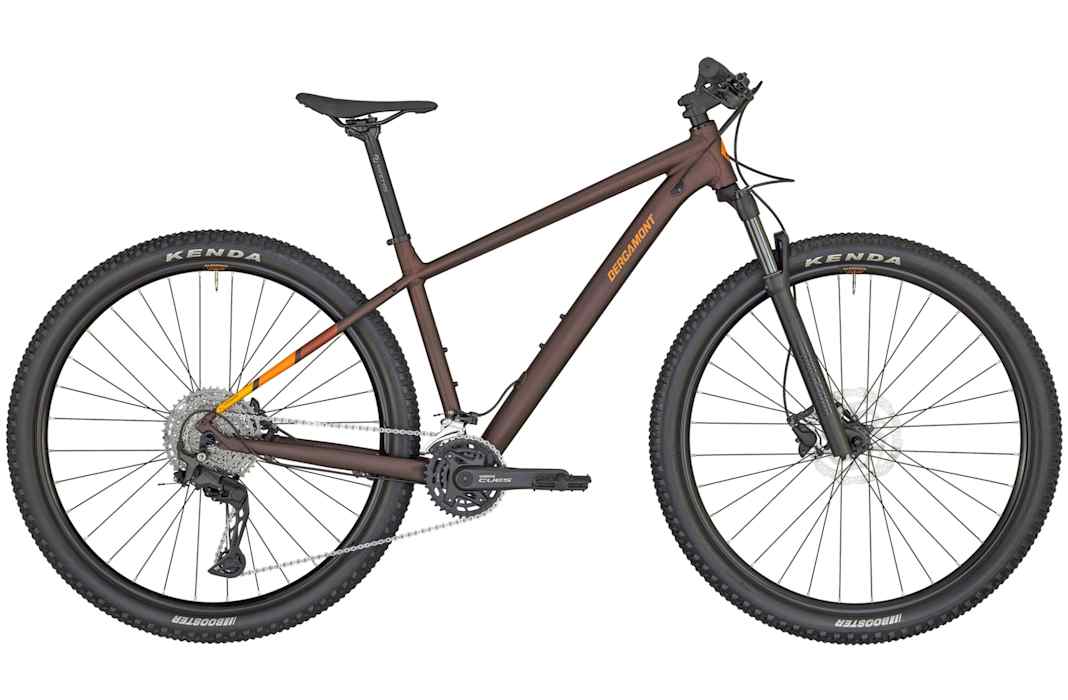

Bergamont Revox 7

The Bergamont Revox 7, released in 2024, is a high-quality mountain bike priced at 999 EUR. The bike’s frame is made from an ultra-lightweight AL-6061 tube set and is designed for 29-inch wheels. The maximum load capacity is 115 kg, whilst the bike itself weighs 13 kg.

This model is suitable for riders between 152 cm and 166 cm in height. The braking system consists of Shimano hydraulic disc brakes (BR-MT200) at both the front and rear, operated by the matching brake levers (BL-MT200). The front brake discs have a diameter of 180 mm and the rear ones 160 mm (Shimano SM-RT10).

The Revox 7’s gear system is also by Shimano and comprises a Cues RD-U6020 Shadow Plus derailleur with 22 speeds. The shift levers are the Shimano Cues SL-U6000, which enable a 2x11-speed drivetrain. The front derailleur is a Shimano Cues FD-U6000. The bottom bracket is a Shimano Hollowtech II, BSA, and the crankset consists of a Shimano Cues FC-U6000 with 36/22 teeth. The cassette is a Shimano Cues CS-LG400-11 with a range of 11–45 teeth, and power is transmitted via a KMC X11 chain.

The Revox 7’s fork is a RockShox Judy Silver TK with 100 mm of travel and a remote lockout. The pedals are VP-536. The handlebars are Syncros 3.0 riser handlebars with a width of 720 mm and a rise of 12 mm. The grips are Syncros MTB, and the stem is also a Syncros 3.0, 60 mm long with an angle of +/-6 degrees. The headset is a Prestine PT1805 A-Headset, semi-integrated, with a diameter of 1 1/8".

The wheels consist of Alex X25 rims with a width of 25 mm, and the tyres are Kenda Booster in size 29x2.40". The hubs are Shimano Centre Lock disc quick-release hubs at both the front and rear. The saddle is a Syncros Tofino 2.5, and the seatpost is a Syncros 3.0.

The frame geometry comprises a reach of 413 mm, a stack of 619 mm, a seat tube length of 405 mm and a top tube length of 595 mm. The head tube angle is 69 degrees, the seat tube angle is 74 degrees, and the head tube length is 100 mm. The chainstay length is 458 mm, the bottom bracket drop is 70 mm, the fork offset is 46 mm, and the standover height is 741 mm. The fork installation height is 503 mm, the crank length is 170 mm, the wheelbase measures 1126 mm and the bottom bracket height is 303 mm.

With these specifications, the Bergamont Revox 7 offers solid performance for mountain bike enthusiasts and is ideal for a wide variety of off-road rides.
