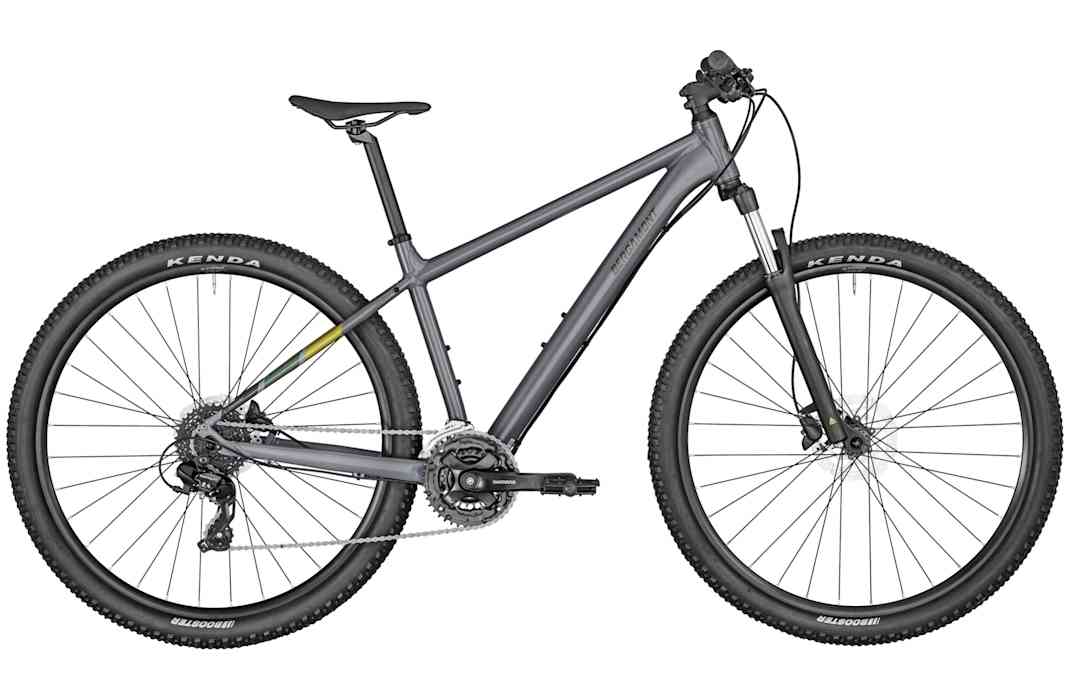

Bergamont Revox 3 grey

The "Revox 3 grey" model from Bergamont, released in 2024, is a versatile mountain bike that stands out for its robust specification and excellent value for money. Priced at EUR 599, it offers a wide range of features that will appeal to both beginners and more experienced riders.

The Revox 3’s frame is constructed from a lightweight AL-6061 tube set and is available in 29” and 27.5” sizes. The maximum load capacity is 115 kg, whilst the bike itself weighs in at 14 kg. The frame is designed for riders between 168 cm and 182 cm in height.

Braking performance is provided by Shimano hydraulic disc brakes (BR-MT200) at the front and rear, combined with Shimano BL-MT200 brake levers. Both brake discs have a diameter of 160 mm (Shimano SM-RT10), ensuring reliable and consistent braking power.

The Revox 3 grey is fitted with the Shimano RD-TX800 rear derailleur, which offers 24 gears. The shift levers are Shimano SL-M315 Rapidfire Plus shift levers, which allow for precise and quick gear changes. The front derailleur is a Shimano FD-TY700, whilst the crankset consists of a Shimano FC-TY501 with 42/34/24t chainrings. The cassette is a Sunrace CS-M55 with a 11–34t range, and the drivetrain is completed by a KMC Z8 chain.

The bike’s suspension fork is a Suntour XCE28 DS with 100 mm of travel and adjustable preload, providing additional comfort and control on uneven terrain. The pedals are Feimin FP-803, and the bottom bracket is a sealed cartridge BSA.

The Revox 3’s handlebars are BGM Comp Riser handlebars, 700 mm wide with a 12 mm rise. The grips are Syncros MTB, and the stem is also a BGM Comp, measuring 75 mm in length with an angle of +/-6°. The headset is a semi-integrated BGM FP-H807B A-Headset with a size of 1 1/8".

The bike’s rims are Alex X20 Disc with a width of 20 mm, and the tyres are Kenda Booster in sizes 29x2.40" and 27.5x2.40" respectively. The front and rear hubs are by Shimano, both fitted with Centre Lock disc brakes and quick-release mechanisms.

The saddle is a Syncros Tofino 2.5, mounted on a BGM Comp seatpost. The bike’s geometry comprises a seat tube length of 445 mm, a top tube length of 610 mm, a head tube angle of 69 degrees, a seat tube angle of 74 degrees, a head tube length of 135 mm, a chainstay length of 435 mm, a bottom bracket drop of 56 mm, a fork offset of 42 mm and a top tube height of 762 mm. The wheelbase is 1121 mm and the bottom bracket height is 298 mm.

In summary, the Bergamont Revox 3 grey M7 offers robust and reliable specifications at an affordable price, ideal for mountain bike enthusiasts looking for a versatile and high-performance bike.
