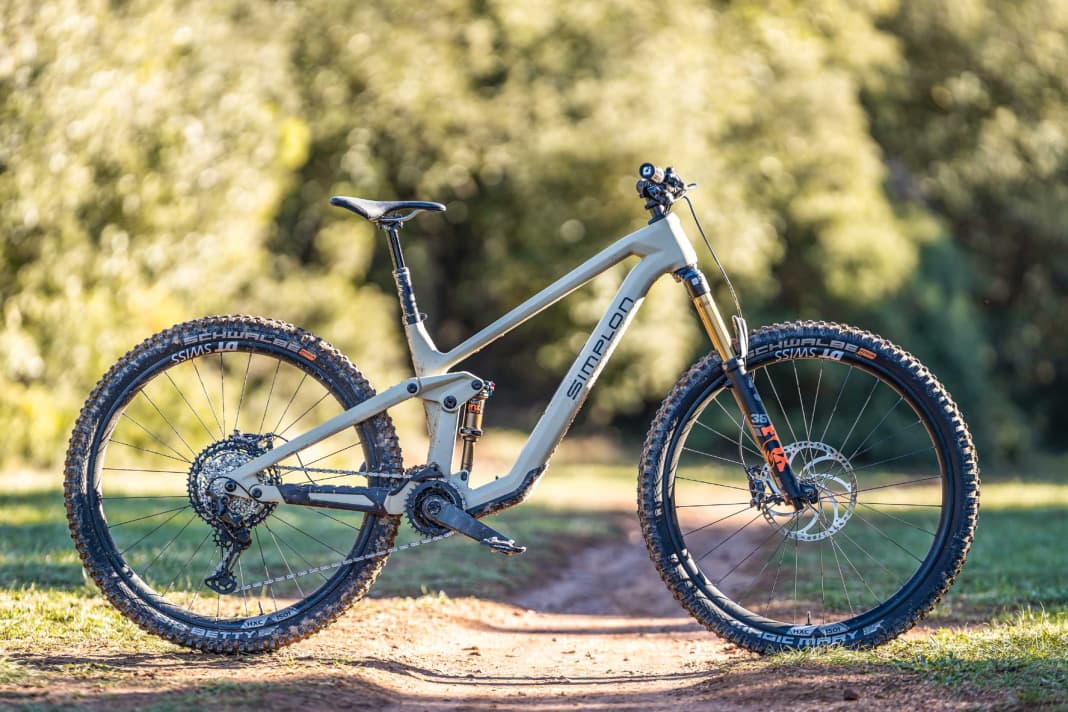

Simplon Rapcon Pmax TQ in the Light E-MTB test: Trail bike with modern geometry

At just 18 kilos, the Simplon Rapcon TQ is the Vorarlberg the lightest in our comparison test of eight exciting light eMTBs. Despite the most robust tyre combination. However, it is also the most expensive. The super modern geometry is striking. The extremely steep seat angle reduces the riding position to a compact size, despite the long reach. This puts a lot of pressure on the hands on flat sections. Demanding ups and downs in the terrain are more the Rapcon's habitat than tame lake tours. On climbs, the progressive riding position puts a lot of pressure on the front wheel and enables good climbing characteristics. Traction on the rear wheel is also excellent.

>> 7 more light e-MTBs and full-power e-enduro bikes can be found in our overview article <<

The limiting factor on extreme climbs is the moderate punch of the motor. Unfortunately, the TQ HPR 50 cannot fully conceal its maximum output of 300 watts and a maximum of 50 Newton metres, which causes the rider's heart rate to rise sharply on nasty climbs. Other light drives offer more power - but the response behaviour and modulation of the TQ e-bike motor are excellent. In technical passages, however, the low bottom bracket and the 170 mm cranks can easily cause pedalling bumps.

Simplon Rapcon TQ downhill: light-footed and comfortable

When going downhill, the Simplon Rapcon TQ stands out with its light-footed handling - even for a light E-MTB. The low weight and light wheels are clearly noticeable. However, the rear suspension is more comfortable and high-traction than poppy. Even if you tune the shock a little firmer than usual. Sporty riders might want more progression from a trail bike and should add a volume spacer.

Thanks to the short chainstays, the Rapcon is easy to pull onto the rear wheel. It also scores highly on demanding downhill sections. The suspension has good traction and is forgiving. Another plus point is the low noise level. Downhill, only the slight ringing of the brake pads can be heard. The TQ drive is also unrivalled on uphill climbs. But beware: moderate range and no option to change the battery! However, a range extender (559.90 euros) with an additional 160 watt hours can be installed.

>> You can read more about the range of light e-MTBs in our detailed range comparison of the eight test bikes <<

EMTB conclusion on the Simplon Rapcon Pmax TQ:

Simplon's Light E-MTB Rapcon is an excellent trail bike with modern geometry, plush suspension and balanced handling characteristics. Quiet TQ drive with natural but moderately powerful thrust. No removable battery!

Technical data and notes Simplon Rapcon Pmax TQ

Manufacturer information

• Price: 11,379 euros
• Sizes / frame material: S / M / L (tested size) / XL / Carbon

Measured values²

• Reach altitude¹: 893 (+133) altitude metres
• Weight²: 18.0 kg
• Average speed: 13.2 km/h
• Centre of gravity height: 506 mm
• Handlebar width: 800 mm
• Crank length / Q-factor: 170 mm / 174 mm
• Ground clearance⁴: 489 mm

Equipment

• Engine: TQ HPR 50
• Max. Torque³: 50 Nm
• Battery³ / weight² / range extender: TQ, 360 Wh / permanently integrated / 160 Wh / 1050 g / 520 Euro
• Gear system: Shimano XT (12-speed)
• Translation (v. / h.): 32; 10 - 51

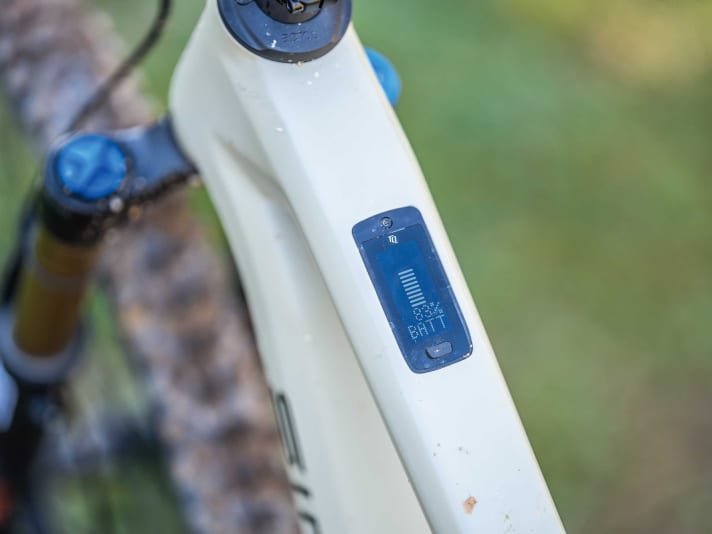

• Display: TQ
• Permissible total weight³: 125 kg
• Fork / shock: Fox 36 Factory Grip 2 / Float DPS Factory
• Front/rear suspension travel: 150 / 150 mm
• Telescopic seatpost: Bikeyoke Revive, 185 mm

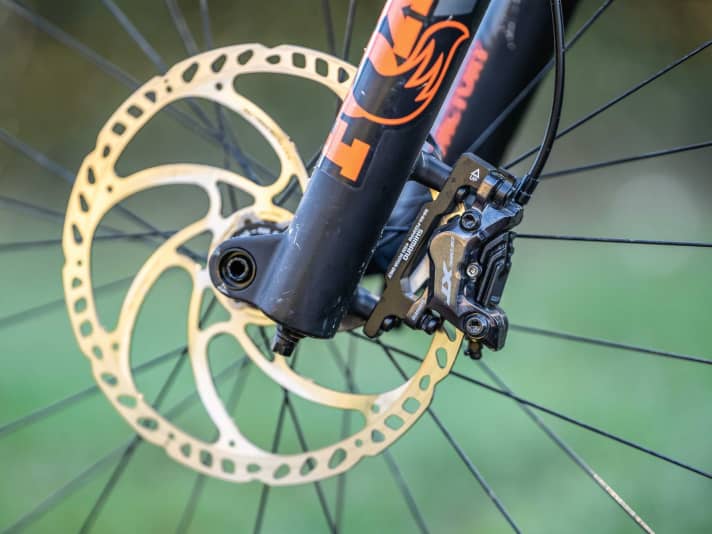

• Brake / Disc Ø (front / rear): Shimano XT 8120 / 220 mm / 203 mm
• Wheels: DT Swiss HXC 1501 Hybrid LS Carbon
• Tyres (front / rear): Schwalbe Magic Mary / Big Betty Supertrail Soft, 29 x 2.4''

EMTB test rating⁵: 8.4 points - very good

¹ The values were determined during standardised rides on an asphalt climb with an average gradient of 8.4 percent. Rider pedalling power 175 watts, rider weight incl. equipment 90 kg. The assistance level was adjusted for this comparison test so that all bikes travelled at approximately the same speed, see average speed in brackets. The motor output was around 250 watts. The altitude metres in brackets are in significantly reduced emergency mode. All details about our range test can be found here in the link!

² Determined on the test benches in the EMTB test laboratory, weight without pedals. Battery weight incl. screwed-on cover where applicable.

³ Manufacturer's specification

⁴ Step test, measured with 36 centimetre raised rear wheel

⁵ The judgement reflects the subjective impression of the testers and the results of the reach measurement and laboratory tests. The EMTB judgement is independent of price. EMTB judgements: super (from 9.0), very good (from 8.0), good (from 7.0), satisfactory (from 6.0), with weaknesses (from 5.0), below insufficient.
