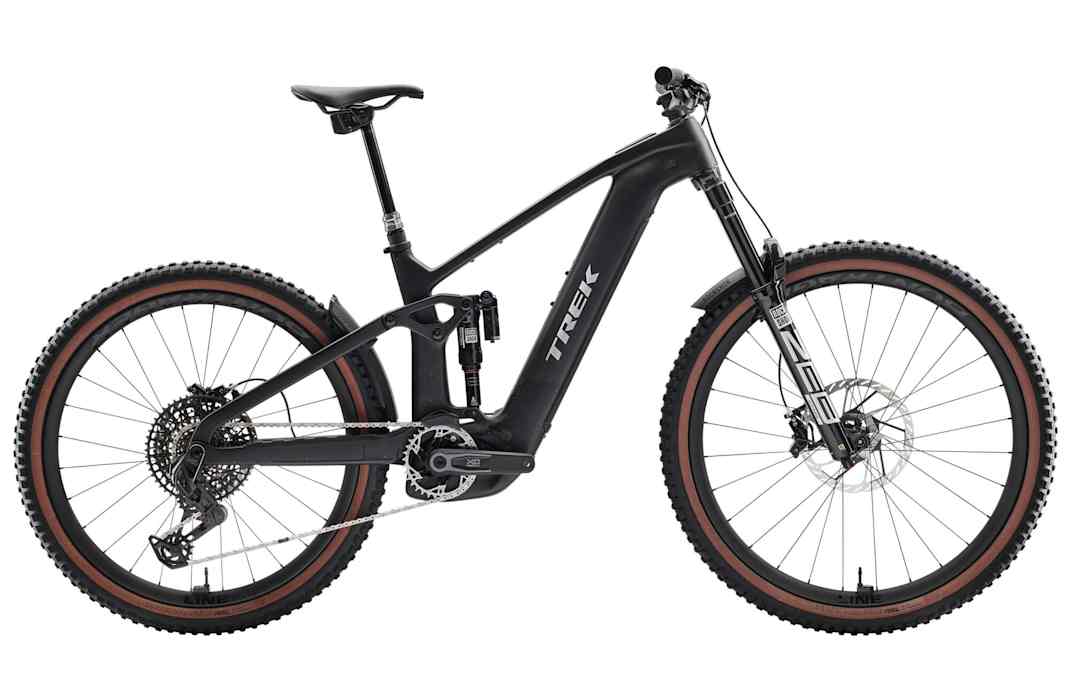

Trek Rail+ 9.9 X0 AXS T-Type Gen 5
5 Images
Model: Rail+ 9.9 X0 AXS T-Type Gen 5
Model year: 2026
Price: 9.499,00 €
Category: Fully
Frame material: Carbon
Weight: 23 kg
Permissible total weight: 136 kg
Wheel size: 29"/622mm, 27.5“/584mm
Tests & Reviews
Equipment
| Rear brakes | Hydraulic 4-piston disc brake SRAM Maven Silver SRAM HS2, 6-hole, 200 mm // SRAM HS2, 6-hole, 220 mm Max. Brake disc pressure |
| Front brakes | Hydraulic 4-piston disc brake SRAM Maven Silver SRAM HS2, 6-hole, 200 mm // SRAM HS2, 6-hole, 220 mm Max. Brake disc pressure |
| Frame | Main frame made of OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal cable routing, Motor Armor, angle-adjustable headset, geometry adjustable via Mino Link, adjustable leverage ratio, 34.9 mm Si |
| Frame material | Carbon |
| Drivetrain | SRAM X0 Eagle AXS, T-Type |
| Shift levers | SRAM AXS POD // SRAM AXS POD |
| Drivetrain type | Derailleur |
| Number of gears | 1 |
| Fork | RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damping, tapered steerer tube, 44 mm pre-bend, Boost110, 15 mm Maxle Stealth axle, 160 mm travel |
| Crankset | SRAM X0 Eagle,160 mm crank arm length |
| Sprocket | SRAM Eagle XS-1295, T-Type, 10-52 t., 12-speed |
| Drive | SRAM X0 Eagle, T-Type, 12-speed |
| Drive type | Chain |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm Rise, 780 mm width |
| Grips | Trek Line Elite, screw clamp |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0 degrees, 45 mm length |
| Saddle | Verse Short Comp, steel stays, 145 mm width |
| Seatpost | RockShox Reverb AXS, 200 mm stroke, wireless, 34.9 mm, 542 mm length |
| Wheelset | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-hole disc mount, Boost110, 15 mm thru axle, 29" Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-hole disc mount, SRAM XD freehub body, Boost148, |
| Wheel size | 29"/622mm, 27.5“/584mm |
| Tires | Bontrager Brevard RSL SE, tubeless-ready, triple compound, aramid bead core, 60 TPI, 29 x 2.50 // Bontrager Brevard RSL SE, tubeless-ready, triple compound, aramid bead core, 60 TPI, 27.5 x 2.50 |
| Pedals | VP-536, nylon platform |
| Mudguards | Trek 27.5" custom mudguard |
| Motor type | up to 25 km/h |
| Battery | Bosch PowerTube 800 Wh, Smart System // SRAM AXS battery pack (with charger) |
| Battery capacity (Wh) | 800 |
| Battery mount | Ontube |
| Battery type | Lithium-ion (Li-ion) |
| Charger | Bosch standard charger 4 A, 230 V, Smart System |
