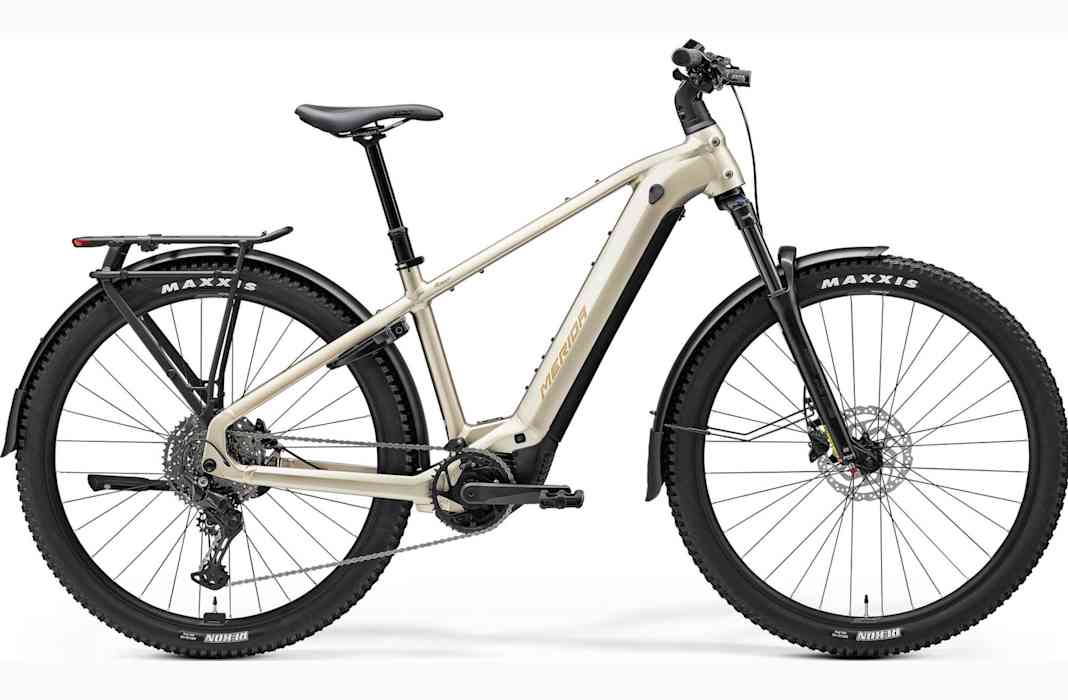

Name: Merida eFLOAT CC 500 EQ
Brand: Merida
Price: 4399 EUR

Bidex

Merida

Merida eFLOAT CC 500 EQ 2025 Pedelec > Trekking > Trekkingbike

eFLOAT CC 500 EQ

Dirt or road, it doesn't matter. With a 120 mm suspension fork and chunky MTB-style tyres, it's capable on both, while the powerful Bosch CX drive unit and 800 Wh make even the biggest hills a pleasure.


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Rear brakes	Shimano MT200
Front brakes	Shimano MT200
Brakes	Shimano MT200
Front brake disc	Shimano RT10
Rear brake disc	Shimano RT10
Frame	* material: aluminium * maximum wheel size: 29" x 2.4" with mudguards * 148 x 12 mm axle standard * internal hub
Frame material	Aluminium
Drivetrain	Shimano Cues U6000
Shift levers	Shimano Cues U6000-10
Drivetrain type	Derailleur
Fork	SR Suntour X1-Boost
Crankset	FSA CK-220 wide E-Bike Forged Crankset
Drive	Shimano LG500
Drive type	Chain
Headset	Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Handlebar	MERIDA EXPERT
Grips	MERIDA EXPERT EC
Stem	MERIDA EXPERT TK III
Saddle	MERIDA EXPERT TK II
Seatpost	MERIDA COMP TR IV
Seat clamp	MERIDA EXPERT
Wheel size	29"/622mm
Rims	MERIDA COMP TR II
Tires	Maxxis Rekon
Front tire	Maxxis Rekon
Rear tire	Maxxis Rekon
Front hub	Shimano TC500
Rear hub	Shimano TC500
Spokes	Black stainless
Pedals	VP VPE-891
Front light	Lezyne Hecto StVZO E350+ Reverse
Rear light	Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Mudguards	Sunnywheel SW-FA311-70A/ SW-FA311-70E1
Kickstand	Atranvelo ED-100-PC
Rack	MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
Motor manufacturer / model	Bosch Performance Line CX
Motor type	up to 25 km/h
Display	Bosch Purion 200,
Battery	Bosch PowerTube 800 Wh
Battery capacity (Wh)	800
Battery mount	Intube herausnehmbar
Battery type	Lithium-ion (Li-ion)
Battery voltage (V)	36V
Charger	Bosch 4A Charger (220-240V)
