Merida eFloat: Make two out of one: New urban e-bikes with Bosch CX motor
Was the new Bosch Performance Line CX motor the decisive factor? Or whether the idea of giving the urban e-bikes a major update had been lying dormant in the minds of Merida's product developers for some time? The fact is that the new generation is now here. Merida has expanded its product range with the eFloat CC and eFloat HD, two models that are being launched for the first time with Bosch instead of Shimano drive. They should be suitable for everyday rides to work or the shops as well as for touring at the weekend.
Urban e-bikes for cross-country and heavy-duty use

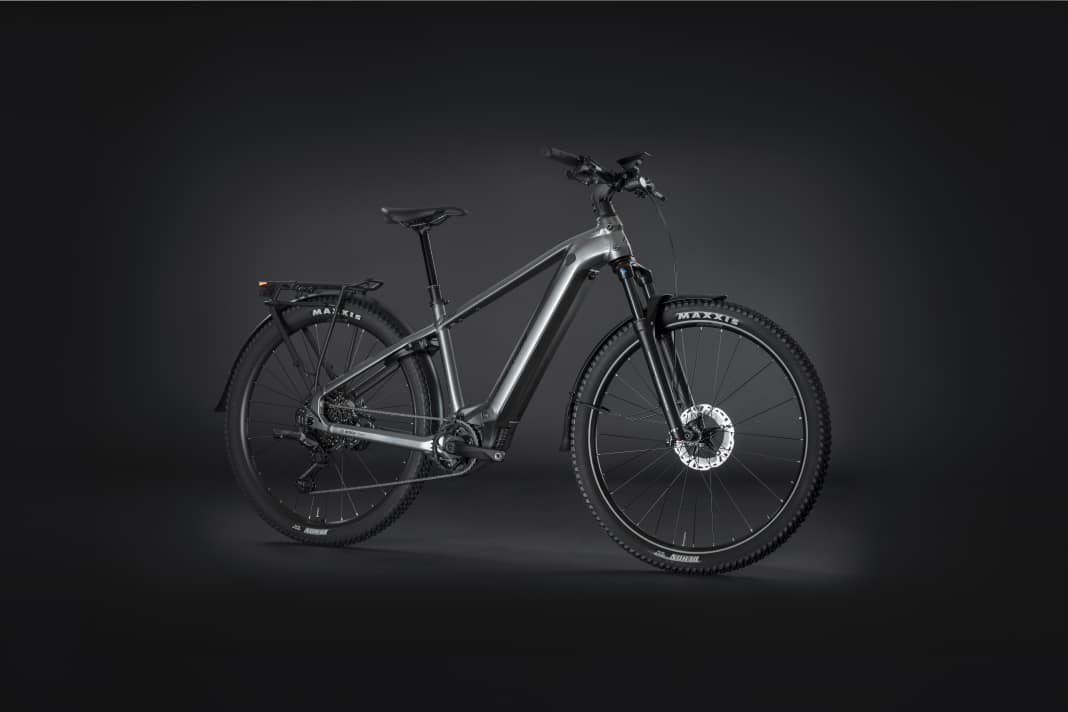

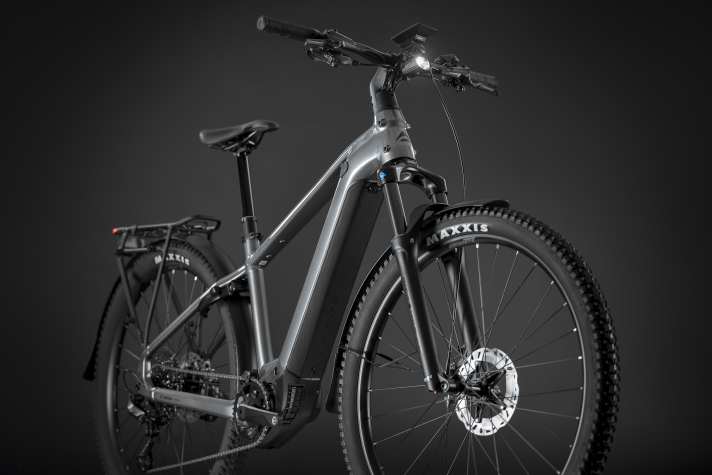

The abbreviations behind the model name are still strongly reminiscent of mountain bike models. This is no coincidence: the Merida eFloat CC is designed as a robust SUV bike that can be ridden on light terrain as well as in the urban jungle thanks to mountain bike tyres and a 120 mm suspension fork.

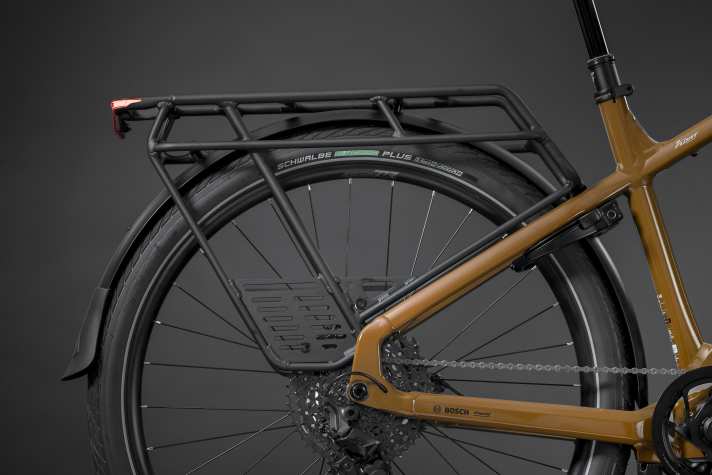

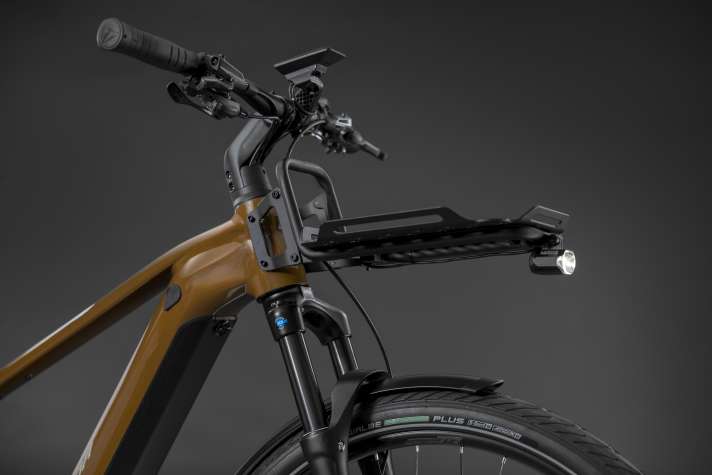

The Merida eFloat HD is a lightweight cargo bike that extends the standard transport capacity of the eFloat with a robust rear and front carrier. Ideal for riders who are looking for a load capacity of up to 50 kg but don't want to do without the slim silhouette and easy manoeuvrability of a "classic" bike. Both e-bikes come ex works with the telescopic seat post familiar from mountain bikes. The saddle can be lowered at the touch of a button. This is practical when starting off at traffic lights with a lot of luggage or to create more freedom of movement on the bike in demanding riding situations.
At the heart of both eFloat urban e-bikes is an aluminium frame. In combination with the powerful Bosch Performance Line CX motor and various battery sizes, the right models can be configured for touring or everyday use.
Merida eFloat: Useful equipment details for everyday use & touring
The frame platform was developed for three models. In addition to the Merida eFloat CC and eFloat HD, there is also an eFloat TK. This model is designed for trekking and touring, but will not be available in Germany.

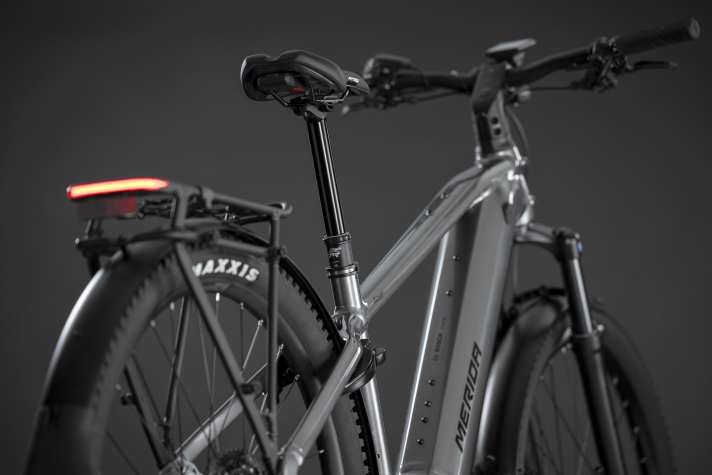

All models in the eFloat series are equipped with mudguards and a rear rack, kickstand, an integrated lock and front and rear lights. The so-called Wire Port cable routing system ensures a tidy appearance on the bike.
Motors, batteries and displays on the Merida eFloat models

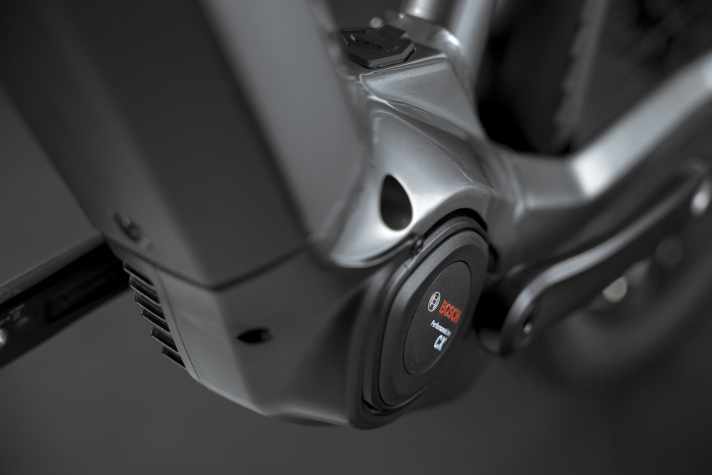

For the first time, Merida bikes are equipped with a Bosch motor. This is unusual in that the brand has otherwise relied exclusively on e-drives from Shimano. However, there are also simply good reasons for switching to Bosch. The new CX is really quiet for an electric motor and also delivers a lot of power. Even among E-MTBs, the new Performance Line CX is one of the absolute top units. The particularly smooth ride feel and the low pedalling resistance when the assistance is switched off or above 25 km/h also score points in the everyday and trekking sector.

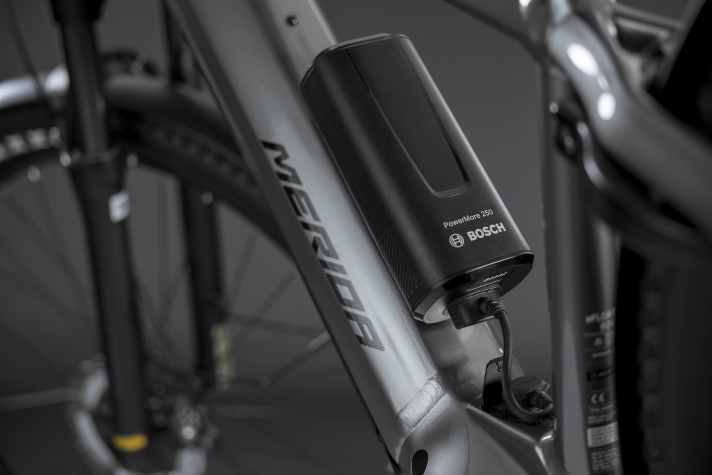

Depending on the equipment variant, there are batteries with 600 or 800 watt hours in the down tube. In our experience, the new 800 in particular delivers an outstanding range. If that's not enough, you can easily connect the optional Powermore range extender for 250 additional watt hours thanks to the practical charging port in the bottom bracket area. You are also spoilt for choice when it comes to the displays on the new Meridas. From the minimalist LED remote to the new Purion 200 display with a small screen to the large Kiox 300 and 500 screens, everything is possible.
>> You can see even more bikes with the new Bosch motor here: New E-MTBs 2025 The bikes with the new Bosch Performance Line CX motor
The equipment variants of the Merida eFloat CC SUV bike at a glance
eFloat CC 600 EQ
- Frame: eFloat CC Lite II, aluminium, available as diamond and trapezoid frame, in the colours gunmetal grey or fall green
- Frame sizes: S, M, L, XL
- Fork: SR Suntour Mobie 34 D-Boost, air suspension, 120 mm
- Circuit: Shimano XT, 11-speed, 10-50 t.
- Drive unit/battery/display: Bosch Performance Line CX/Bosch PowerTube 800 Wh, removable/Bosch Kiox 500
- Brakes: Shimano Cues U8000, 180 mm
- Tyres: Maxxis Rekon 29 x 2.4
- Lighting: Lezyne Hecto StVZO E350+ Reverse/Spanninga Commuter Glow Xer, integrated
- Luggage carrier: Merida MIK HD Carrier w. integrated rear light
- Price: 4999 Euro
eFloat CC 500 EQ
- Frame: eFloat CC Lite II, aluminium, available as diamond and trapezoid frame, in the colours gunmetal grey or high cream
- Frame sizes: S, M, L, XL
- Fork: SR Suntour X1-Boost, air suspension, 120 mm
- Circuit: Shimano Cues, 10-speed, 11-48 t.
- Drive unit/battery/display: Bosch Performance Line CX/Bosch PowerTube 800 Wh, removable/Bosch Purion 200
- Brakes: Shimano MT 200, 180 mm
- Tyres: Maxxis Rekon 29 x 2.4
- Lighting: Lezyne Hecto StVZO E350+ Reverse/Spanninga Commuter Glow Xer, integrated
- Luggage carrier: Merida MIK HD Carrier w. integrated rear light
- Weight: 28.7 kg
- Price: 4399 Euro
eFloat CC 400 EQ
- Frame: eFloat CC Lite II, aluminium, available as diamond and trapezoid frame, in the colours gunmetal grey or silk dove blue
- Frame sizes: S, M, L, XL
- Fork: SR Suntour XCM34-Boost, steel spring, 120 mm
- Circuit: Shimano Cues, 9-speed, 11-46 t.
- Drive unit/battery/display: Bosch Performance Line CX/Bosch PowerTube 800 Wh, removable/Bosch Purion 200
- Brakes: Shimano MT 200, 180 mm
- Tyres: Maxxis Rekon 29 x 2.4
- Lighting: Lezyne Hecto StVZO E350+ Reverse/Spanninga Commuter Glow Xer, integrated
- Luggage carrier: Merida MIK HD Carrier w. integrated rear light
- Weight: 28.7 kg
- Price: 3999 Euro
The equipment variants of the Merida eFloat HD cargo bike at a glance
eFloat HD 700 EQ
- Frame: eFloat HD Lite II, aluminium, available as diamond and trapezoid frame, in the colours gunmetal grey or fall leave brown
- Frame sizes: S, M
- Fork: SR Suntour Mobie 34-D-Boost, air suspension, 120 mm
- Circuit: Shimano XT, 11-speed, 11-50 t.
- Drive unit/battery/display: Bosch Performance Line CX/Bosch PowerTube 800 Wh, removable/Bosch Kiox 500
- Brakes: Shimano Cues U8000, 180 mm
- Tyres: Continental eContact Plus, 622-55, reflective stripes
- Lighting: Lezyne Hecto StVZO E350+ Reverse/Spanninga Commuter Glow Xer, integrated
- Luggage carrier: Merida MIK HD Carrier w. integrated rear light
- Price: 5299 Euro
eFloat HD 500 EQ
- Frame: eFloat HD Lite II, aluminium, available as diamond and trapezoid frame, in gunmetal grey
- Frame sizes: S, M
- Fork: SR Suntour X1-Boost, air suspension, 120 mm
- Circuit: Shimano Cues U6000, 10-speed, 11-48 t.
- Drive unit/battery/display: Bosch Performance Line CX/Bosch PowerTube 800 Wh, removable/Bosch Purion 200
- Brakes: Tektro Gemini M535, 180 mm
- Tyres: Continental eContact Plus, 622-55, reflective stripes
- Lighting: Lezyne Hecto StVZO E350+ Reverse/Spanninga Commuter Glow Xer, integrated
- Luggage carrier: Merida MIK HD Carrier w. integrated rear light
- Price: 4599 Euro
