Brakes	Shimano M4100 / MT420 4-Piston
Front brake disc	Shimano RT30 CL 180
Rear brake disc	Shimano RT30 CL 180
Frame	Macina MTB 29" 6061 Alloy UDH\|PT800 Bosch BDU38/M5700
Frame material	Aluminium
Drivetrain	Shimano Deore XT M8100-12 SGS shadow+
Shift levers	Shimano Deore M6100-12
Drivetrain type	Derailleur
Fork	RockShox Recon Slv RL 29" 120mm 15x110
Crankset	left: KTM E-COMP2 ISIS 170mm Q8 - right: KTM E-COMP2 ISIS 170mm Q8
Sprocket	Shimano Deore M6100-12 / 10-51
Drive	Shimano M6100-12
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM COMP flat 2X 720mm
Grips	Ergon GA20
Stem	KTM +7° ICR
Saddle	KTM Line Sport
Seatpost	KTM COMP 30.9/400
Seat clamp	KTM Line JD-SC99 - 34.9mm
Wheel size	29"/622mm
Front tire	Schwalbe Wicked Will Perf. 62-622
Rear tire	Schwalbe Wicked Will Perf. 62-622
Front hub	Shimano TC500B CL 32H 110-15TA
Rear hub	Shimano TC500B CL 32H 148-12TA
Spokes	front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black
Pedals	VP-195E alloy MTB pedal
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840
Display	Bosch PURION 200 Display & Remote
Battery	Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Battery capacity (Wh)	800
Charger	Bosch STANDARD Charger 4A

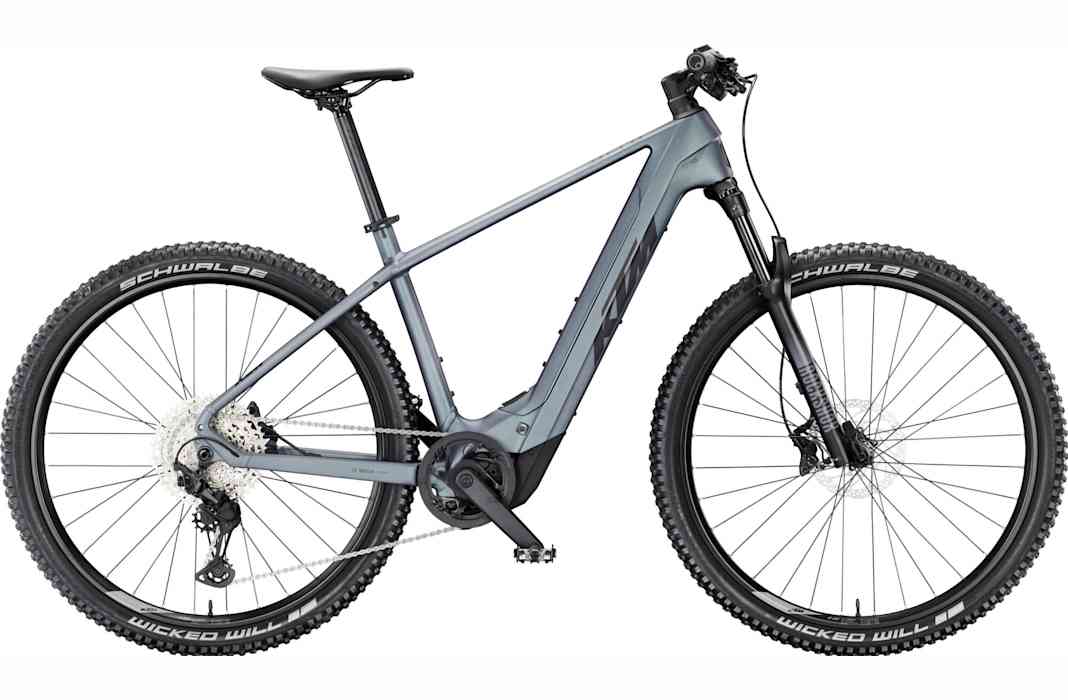

KTM MACINA TEAM 892
