Brakes	Shimano MT200 / MT200 2-Piston
Front brake disc	Shimano RT30 CL 180
Rear brake disc	Shimano EM300 CL 180 magnet
Frame	Macina MTB 27.5" 6061 Alloy UDH\|PT800 Bosch BDU38/M5710
Frame material	Aluminium
Drivetrain	Shimano CUES U6000-11/10 LG shadow+
Shift levers	Shimano CUES U6000-11 display
Drivetrain type	Derailleur
Fork	Suntour XCM34 coil 27.5 NLO 100mm 15x110
Crankset	left: KTM E-COMP2 ISIS 170mm Q8 - right: KTM E-COMP2 ISIS 170mm Q8
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e500 LG e-bike
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM COMP Rizer 15 700 mm
Grips	KTM COMP Lock
Stem	KTM COMP 7°
Saddle	KTM Line Sport
Seatpost	KTM COMP 30.9/350
Seat clamp	KTM Line JD-SC99 - 34.9mm
Wheel size	27.5“/584mm
Front tire	Schwalbe Smart Sam Perf. 65-584
Rear tire	Schwalbe Smart Sam Perf. 65-584
Front hub	Shimano TC500B CL 32H 110-15TA
Rear hub	Shimano MT400B CL 32H 148-12TA
Spokes	front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black
Pedals	VP-195E alloy MTB pedal
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3840
Display	Bosch PURION 200 Display & Remote
Battery	Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Battery capacity (Wh)	800
Charger	Bosch COMPACT Charger 2A

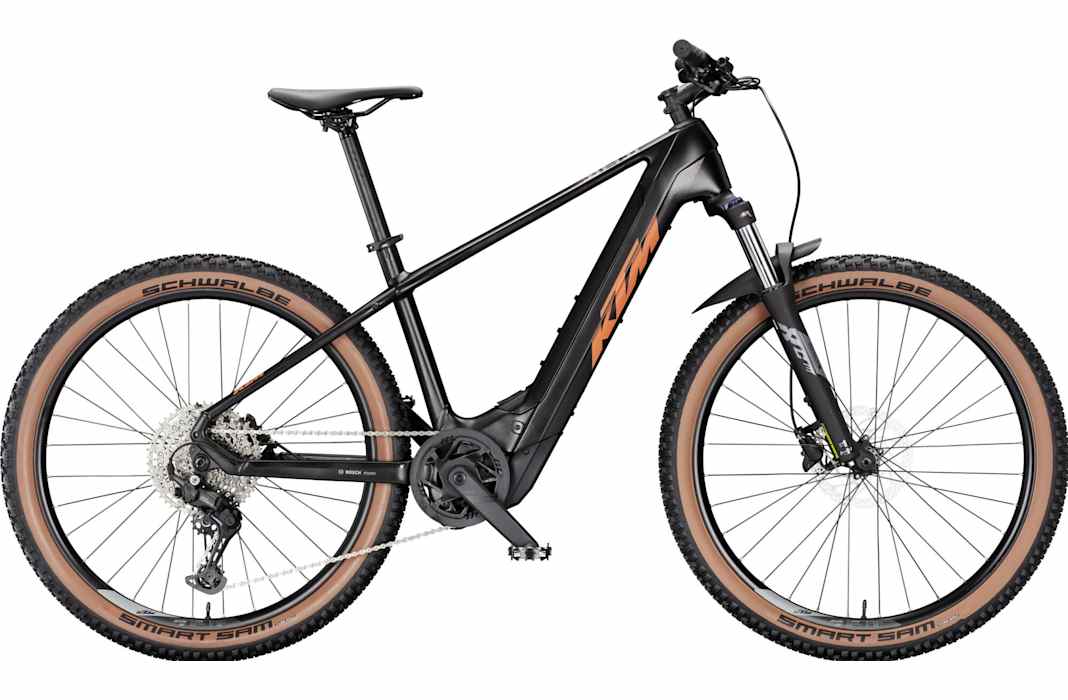

KTM MACINA TEAM 873
