Brakes	Shimano Deore M6100 / M6120 4-piston
Front brake disc	Shimano RT64 CL 180
Rear brake disc	Shimano EM600 CL 180 magnet
Frame	Macina MTB 29" 6061 alloy \| PT750Wh Bosch BDU37/M2706
Frame material	Aluminium
Drivetrain	Shimano Deore XT M8130-11 LG shadow+
Shift levers	right: Shimano MT500 SP lever – left: Shimano Deore XT M8130-11 LG
Drivetrain type	Derailleur
Fork	FOX 34 Float AWL 29" E 120mm 15x110
Crankset	left: KTM E-TEAM ISIS 170mm Q16 - right: KTM E-TEAM ISIS 170mm Q16
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e500 LG e-bike
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM TEAM flat 2X 720mm
Grips	Ergon GA20
Stem	KTM TEAM MTB 7°
Saddle	Selle San Marco RND Manganes Rails
Seatpost	KTM COMP dropper internal 30.9 T:100
Seat clamp	KTM TEAM Light CL-FJ21 - 34.9mm
Wheel size	29"/622mm
Front tire	Maxxis Rekon EXO/TR 62-622
Rear tire	Maxxis Rekon EXO/TR 62-622
Front hub	DT Swiss 370 CL 28H 110/15TA
Rear hub	DT Swiss 370 CL 28H 148/12 TA
Spokes	DT Champion 2.0 black
Pedals	VP-195E alloy MTB pedal
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3740
Display	Bosch KIOX 300 TFT display
Battery	Bosch PowerTUBE 750Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Battery capacity (Wh)	750
Charger	Bosch STANDARD Charger 4A

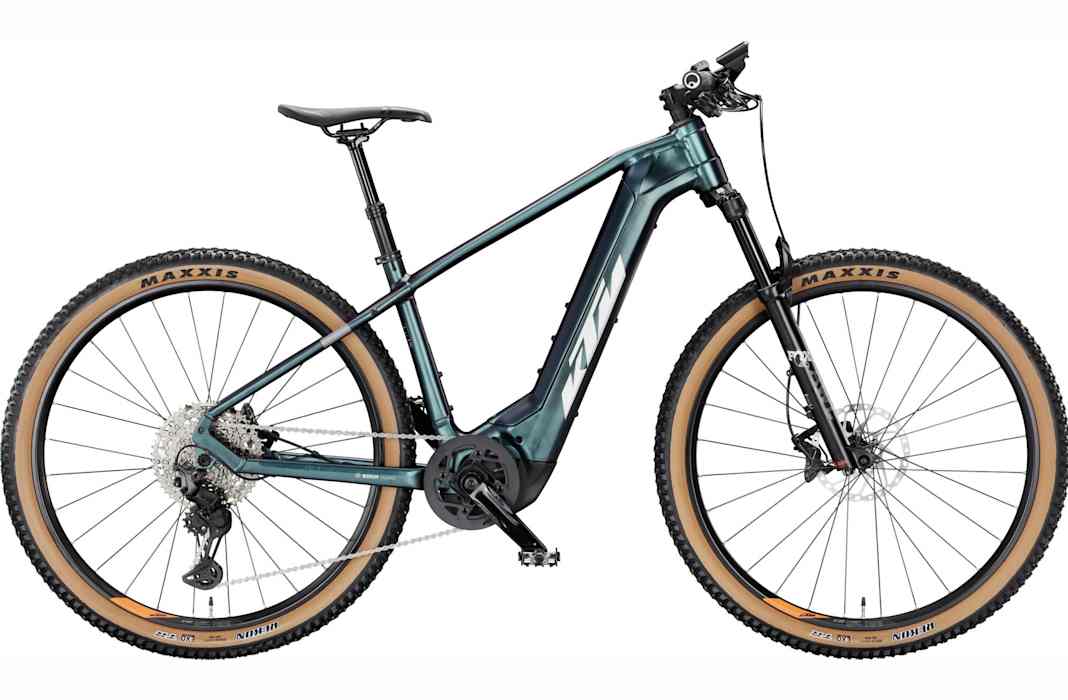

KTM MACINA TEAM 791
