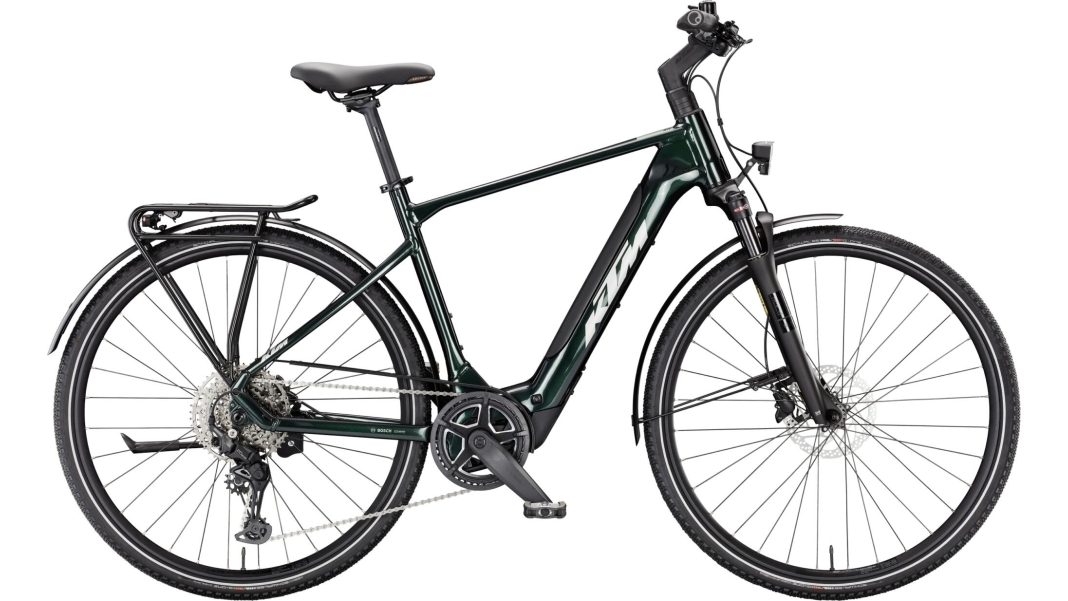

MACINA SPORT SX 20


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Profile not fully set up

Comments

My Bookmarks

My Comments

My Profile

Which bike is right for me?

Helps us estimate the right stability and components.

How often do you ride?

A motor helps when you're riding long distances or tackling climbs.

Should a motor support you?

Helps us find bikes within your budget.

How much do you want to spend?

Tell us what you enjoy – we'll find the right bike.

Purpose – how do you want to ride?

Range determines battery size on e-bikes.

How long are your rides?

Affects tyres and geometry.

What terrain do you ride on?

Bikefinder: Which bike is right for you?

Brakes	Shimano MT201 / MT200 2-Piston
Front brake disc	Shimano RT30 CL 180
Rear brake disc	Shimano RT30 CL 160
Frame	Macina Trekking Onroad Alloy 6061\|CPT400 Bosch BDU31/T4110
Frame material	Aluminium
Drivetrain	Shimano CUES U6000-11/10 LG shadow+
Shift levers	Shimano CUES U6000-10 display
Drivetrain type	Derailleur
Fork	Suntour NCX32-D Air LO 63mm 1 1/8
Crankset	left: KTM E-TEAM2 ISIS 170mm Q8 - right: KTM E-TEAM2 ISIS 170mm Q8
Sprocket	Shimano LG400-10 / 11-48
Drive	Shimano LG500
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM TEAM II low-riser 640mm
Grips	ERGON GS1
Stem	KTM Line +20° ICR
Saddle	Selle Royal Explora Gel
Seatpost	KTM TEAM II 27.2/350
Seat clamp	KTM Line JD-SC99 - 31.8mm
Wheel size	28"/622mm
Front tire	Schwalbe G-One Overland 45-622
Rear tire	Schwalbe G-One Overland 45-622
Front hub	Shimano Deore M5100 CL 32H 100-5QR
Rear hub	Shimano TC500 CL 32H 142-12TA
Spokes	front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black
Pedals	Trekking pedal VP-616 anti-slip
Front light	Litemove RX-E50 50 lux down
Rear light	AXA Juno
Mudguards	SKS EVO AL 55mm 28"
Kickstand	Hebie 28" adjustable
Rack	KTM light 42 snap-it 2.0/monkeyload\|rack clip
Motor manufacturer / model	Bosch PERFORMANCE SX BDU3144
Display	Bosch PURION 200 Display & Remote
Battery	Bosch CompactTUBE 400Wh - ABUS integrated btry lock IT2 (T82 key)
Battery capacity (Wh)	400
Charger	Bosch COMPACT Charger 2A
