KTM MACINA SPORT SX 20 2025 Pedelec > Trekking > Trekkingbike

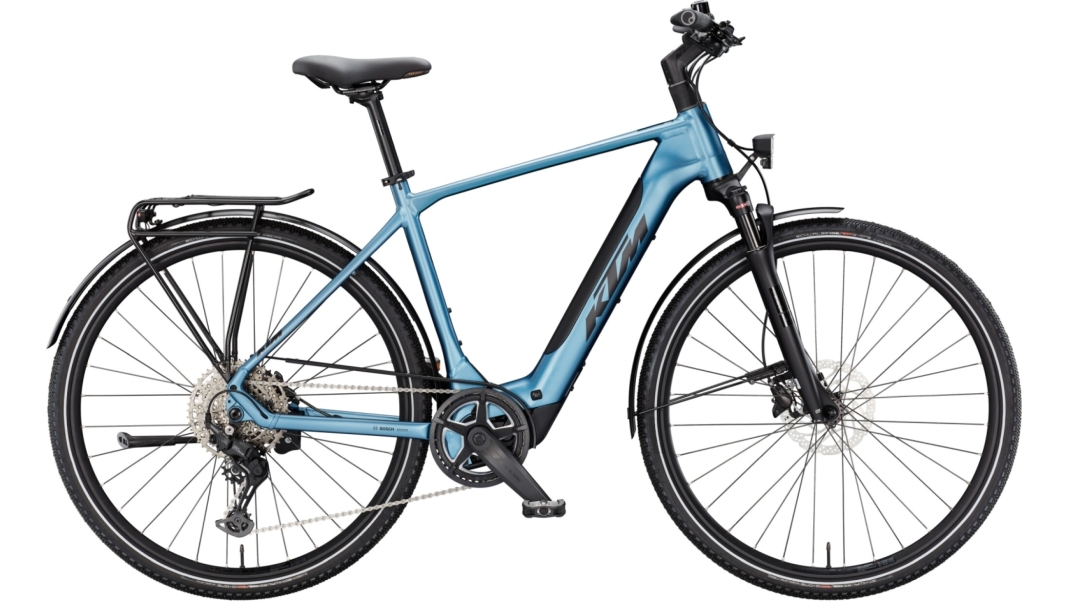

MACINA SPORT SX 20

<div>Macht jeden Weg zum Highlight - das <strong>KTM MACINA SPORT SX 20</strong> bringt Dich mit kraftvoller Unterstützung zu den Zielen Deiner Wahl und hinterlässt dabei stets einen bleibenden Eindruck:</div><ul><li><strong>Bosch PERFORMANCE SX Motor</strong>, brilliert mit einem kraftvollen Schub und erleichtert jede Pedalumdrehung, egal welcher Steigung.</li><li><strong>Dynamischer Bosch 400Wh Akku</strong> für Langstreckentouren ohne Kompromisse; entdecke Weite auf neuen Höhen.</li><li><strong>Präzise Schaltung Shimano CUES U6000-11/10</strong> – leiser Schatten-Performance für sanfte Übertragungen und verlässliche Kontrolle über jedes Terrain.</li><li><strong>Erstklassige Suntour NCX32 Air Gabel</strong>, die gekonnt Unebenheiten ausgleicht und geschmeidige Fahrten garantiert.</li><li><strong>Sicherheit in jeder Bremslage durch Shimano MT201 / MT200</strong> - Hydrauliksysteme, die genau rechtzeitig greift.</li><li><strong>Puristische Kontrolle durch Bosch PURION 200 Display</strong> – einfachste Navigation durch Leistungsstufen als treuer Begleiter zu urbanen Abenteuern.</li></ul><div>Greif nach den Sternen, jedes Hindernis im Rücken spürend, gleite mit Stil denkbar mühelos – das <strong>KTM MACINA SPORT SX 20</strong> ist Dein Begleiter und Freund zugleich bei allen Reiseplänen. Gehe auf das nächste Level der Freiheit.</div><div><br></div>

Starke Bosch Force und Shimano Präzision - erlebe grenzenlosen Fahrspaß mit kompaktem Akku und präziser Schaltung!


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Brakes	Shimano MT201 / MT200 2-Piston
Frame	Macina Trekking Onroad 6061 Alloy CPT400 Bosch BDU31/T-4110
Drivetrain	Shimano CUES U6000-11/10 LG shadow+
Shift levers	Shimano CUES U6000-10 display
Fork	Suntour NCX32-D Air LO 63mm 1 1/8
Crankset	KTM E-TEAM2 ISIS 170mm Q8
Sprocket	Shimano LG400-10 / 11-48
Drive	Shimano LG500
Headset	Acros AICR internal 1.1/8"-1.5" angle limit
Handlebar	KTM TEAM II low-riser 640mm
Grips	Ergon GS1
Stem	KTM Line +20° ICR
Saddle	Selle Royal Explora Gel
Seatpost	KTM TEAM II 27.2/350
Seat clamp	KTM Line JD-SC99 - 31.8mm
Wheelset	Front wheel: KTM Line - Shimano Deore M5100 CL 32H 100-5QR, Black Jack Ready25 32H 622x25TC, DT Champion 2.0 black - HR: KTM Line - Shimano TC500 CL 32H 142-12TA, Black Jack Ready25 32H 622x25TC, DT Alpine II 2.34 black
Front tire	Schwalbe G-One Overland 45-622
Rear tire	Schwalbe G-One Overland 45-622
Pedals	Trekking pedal VP-616 anti-slip
Front light	Litemove RX-E50 50 lux down
Rear light	AXA Juno
Mudguards	SKS EVO AL 55mm 28" rear
Kickstand	Hebie 28" adjustable
Rack	KTM light 42 (Snap-It 2.0 + Monkeyload) + rack clip
Motor manufacturer / model	Bosch PERFORMANCE SX BDU3144 - 25km/h / 55Nm
Display	Bosch PURION 200 Display & Remote
Battery	Bosch CompactTUBE 400Wh
Battery capacity (Wh)	400
Charger	Bosch Compact Charger 2A

KTM MACINA SPORT SX 20
