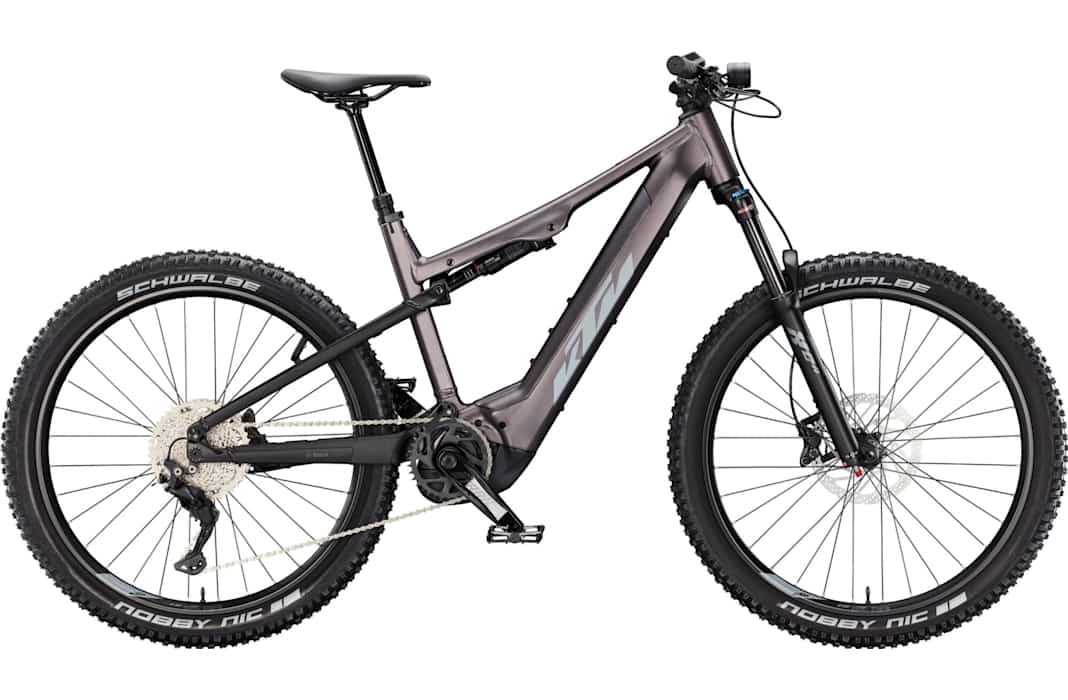

MACINA LYCAN 773 L


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Profile not fully set up

Comments

My Bookmarks

My Comments

My Profile

Which bike is right for me?

Helps us estimate the right stability and components.

How often do you ride?

A motor helps when you're riding long distances or tackling climbs.

Should a motor support you?

Helps us find bikes within your budget.

How much do you want to spend?

Tell us what you enjoy – we'll find the right bike.

Purpose – how do you want to ride?

Range determines battery size on e-bikes.

How long are your rides?

Affects tyres and geometry.

What terrain do you ride on?

Bikefinder: Which bike is right for you?

Brakes	Shimano M4100 / MT420 4-Piston
Front brake disc	Shimano RT30 CL 203
Rear brake disc	Shimano EM300 CL 180 magnet
Frame	Macina Lycan 27.5" Alloy 6061 140 \| PT750 Bosch BDU37/M2296
Frame material	Aluminium
Drivetrain	Shimano Deore M5100-11 SGS shadow+
Shift levers	right: Shimano MT500 SP lever - left: Shimano Deore M5100-11
Drivetrain type	Derailleur
Fork	Suntour XCR34 Air 27.5" LOR 140mm 15x110
Rear shock	RockShox Deluxe Select 230x62.5
Crankset	left: KTM E-TRAIL ISIS 170mm Q16 - right: KTM E-TRAIL ISIS 170mm Q16
Sprocket	Shimano Deore M5100-11 / 11-51
Drive	KMC e11 Sport EPT e-bike
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM COMP Trail35 rizer15 760mm
Grips	KTM COMP Lock
Stem	KTM TEAM Trail35
Saddle	KTM Line Sport
Seatpost	KTM COMP dropper internal 30.9 T:120
Seat clamp	KTM Line JD-SC140A - 35.0mm
Wheel size	27.5“/584mm
Front tire	Schwalbe Nobby Nic Perf. Folding 65-584
Rear tire	Schwalbe Nobby Nic Perf. Folding 65-584
Front hub	Shimano TC500B CL 32H 110-15TA
Rear hub	Shimano MT400B CL 32H 148-12TA
Spokes	front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black
Pedals	MTB pedal flat VPE-527 alloy
Front light	Litemove SC-150 150Lux side
Rear light	Supernova TL3Z
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3740
Display	Bosch PURION 200 Display & Remote
Battery	Bosch PowerTUBE 750Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Battery capacity (Wh)	750
Charger	Bosch STANDARD Charger 4A
