Brakes	Shimano Deore M6100 / M6120 4-piston
Front brake disc	Shimano RT64 CL 203
Rear brake disc	Shimano EM600 CL 180 magnet
Frame	Macina Lycan 27.5" Alloy 6061 140 \| PT750 Bosch BDU37/M2296
Frame material	Aluminium
Drivetrain	Shimano Deore Di2 M6260-11 LG SGS shad+
Shift levers	right: Shimano MT500 SP-Lever - left: Shimano Deore Di2 M6250
Drivetrain type	Derailleur
Fork	FOX 34 Float AWL 27.5" E 140mm 15x110
Rear shock	FOX Float DPS Performance 230x62.5
Crankset	left: KTM E-TRAIL ISIS 170mm Q16 - right: KTM E-TRAIL ISIS 170mm Q16
Sprocket	Shimano LG400-11 / 11-50
Drive	KMC e11 Sport EPT e-bike
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM COMP Trail35 rizer15 760mm
Grips	Ergon GA20
Stem	KTM TEAM Trail35
Saddle	Selle Italia X3 XP Lady
Seatpost	KTM COMP dropper internal 30.9 T:120
Seat clamp	KTM Line JD-SC140A - 35.0mm
Wheel size	27.5“/584mm
Front tire	Schwalbe Nobby Nic Perf. Folding 65-584
Rear tire	Schwalbe Nobby Nic Perf. Folding 65-584
Front hub	Shimano TC500B CL 32H 110-15TA
Rear hub	Shimano TC600B CL 32H 148-12TA
Spokes	front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black
Pedals	MTB pedal flat VPE-527 alloy
Motor manufacturer / model	Bosch PERFORMANCE CX BDU3740
Display	Bosch KIOX 300 TFT display
Battery	Bosch PowerTUBE 750Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
Battery capacity (Wh)	750
Charger	Bosch STANDARD Charger 4A

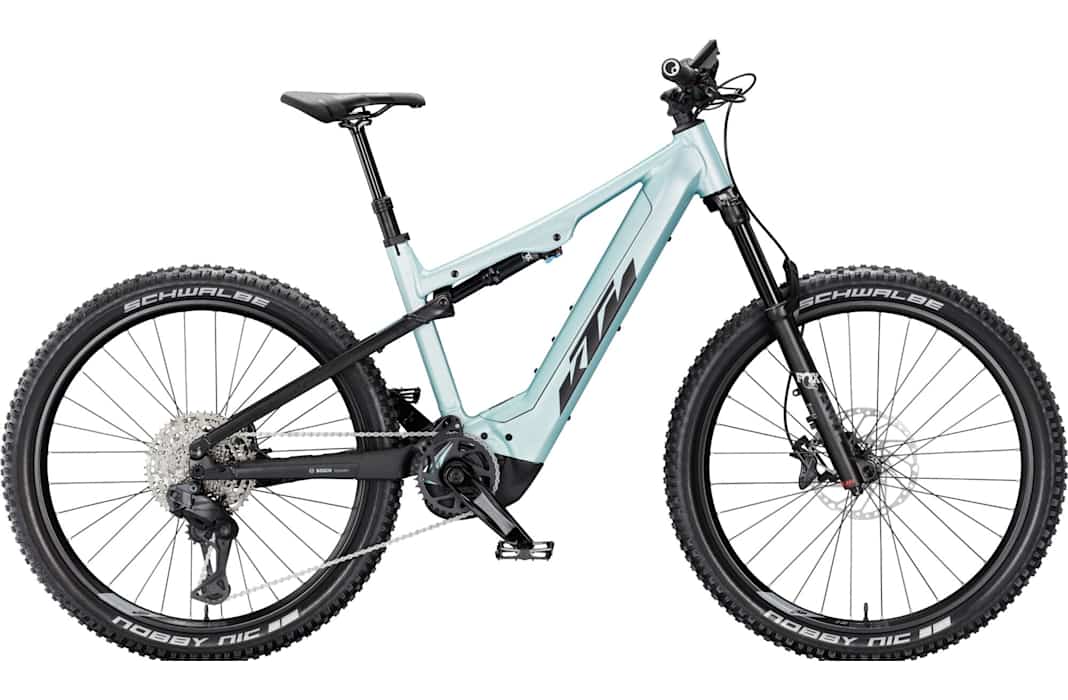

KTM MACINA LYCAN 771 GLORIOUS Di2
