Brakes	Shimano MT402 (3-F) / MT410 2-Piston
Front brake disc	Shimano RT30 CL 180
Rear brake disc	Shimano RT30 CL 160
Frame	Macina Trekking Premium Carb UDH\|CPT400 Bosch BDU31/T4100
Frame material	Carbon
Drivetrain	Shimano CUES U6000-11/10 LG shadow+
Shift levers	Shimano CUES U6000-11 display
Drivetrain type	Derailleur
Fork	RockShox Paragon Gold RL Air 65mm
Crankset	left: KTM E-TEAM2 ISIS 170mm Q8 - right: KTM E-TEAM2 ISIS 170mm Q8
Sprocket	Shimano LG700-11 / 11-50
Drive	KMC e500 LG e-bike
Drive type	Chain
Headset	Acros AICR internal 1.1/8"-1.5" angle lim
Handlebar	KTM TEAM II low-riser 640mm
Grips	ERGON GS1
Stem	KTM Line +20° ICR
Saddle	Selle Royal Vaia Gel
Seatpost	KTM TEAM II 27.2/350
Seat clamp	KTM TEAM Light CL-FJ21 - 31.8mm
Wheel size	28"/622mm
Front tire	Schwalbe G-One Overland Eco 45-622
Rear tire	Schwalbe G-One Overland Eco 45-622
Front hub	Shimano Deore M6000 CL 32H 100-5QR
Rear hub	Shimano TC500 CL 32H 142-12TA
Spokes	front: DT Champion 2.0 black - rear: DT Alpine II 2.34 black
Pedals	KTM TEAM cross alloy ballfree
Kickstand	Hebie 28" adjustable
Motor manufacturer / model	Bosch PERFORMANCE SX BDU3144
Display	Bosch PURION 200 Display & Remote
Battery	Bosch CompactTUBE 400Wh - ABUS integrated btry lock IT2 (T82 key)
Battery capacity (Wh)	400
Charger	Bosch COMPACT Charger 2A

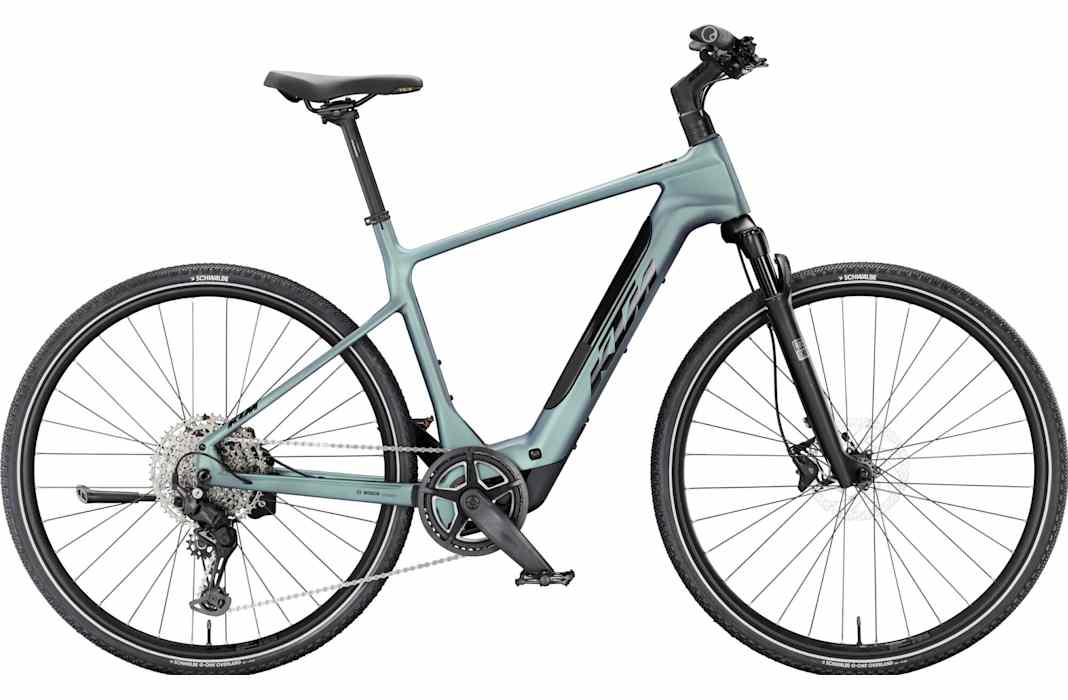

KTM MACINA CROSS SX ELITE
