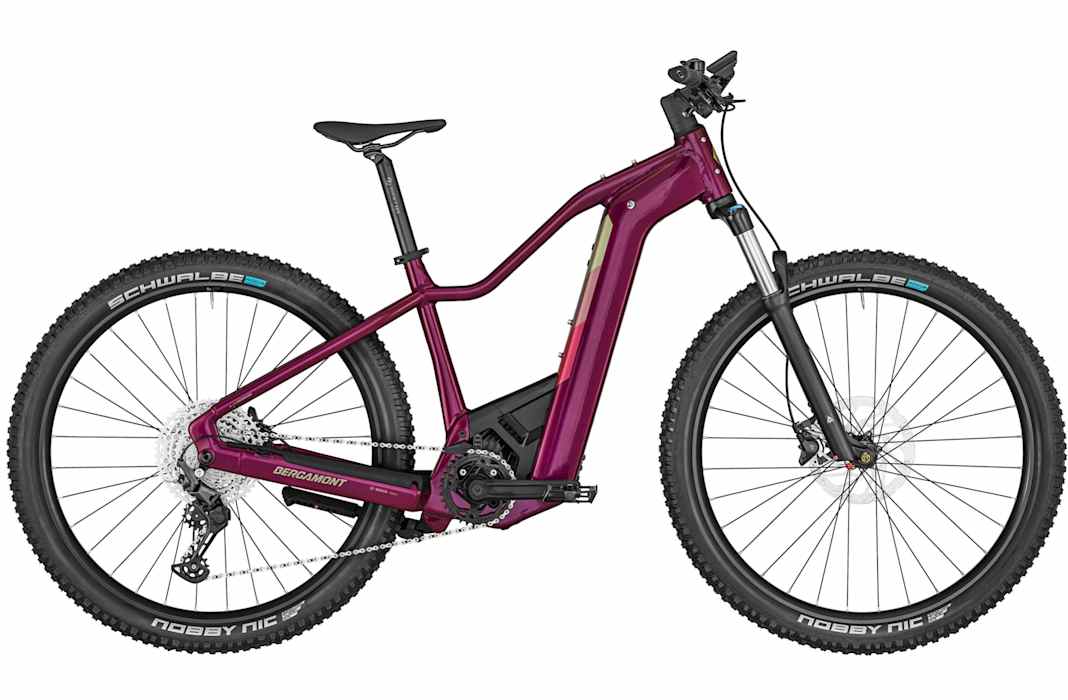

Bergamont E-Revox Pro FMN

The E-Revox Pro FMN from Bergamont, launched in 2024, is a versatile e-mountain bike designed for riders between 155 cm and 169 cm in height. The price for this model is 3,799 EUR. It features a super-light AL-6061 frame with a 29-inch tube set and an integrated Bosch PowerTube battery, which offers a capacity of 750 Wh. The maximum permissible weight is 135 kg, whilst the bike itself weighs 27 kg.

The E-Revox Pro FMN’s braking system consists of Shimano hydraulic disc brakes (BR-MT410) at both the front and rear, operated via Shimano BL-M4100 brake levers. The front brake discs have a diameter of 203 mm and the rear ones 180 mm. Gear shifting is provided by a Shimano Deore RD-M5100 Shadow Plus rear derailleur, combined with a Shimano Deore SL-M5100 shifter, enabling an 11-speed drivetrain.

Suspension is provided by a Suntour XCR34 LOR fork with 120 mm of travel, featuring an adjustable rebound damping and a 15x110 mm axle. The drivetrain consists of a KMC e11S chain system and an FSA CK-320 crankset with 34 teeth and a crank length of 170 mm. The cassette is a Shimano Deore CS-M5100 with a range of 11–51 teeth.

The Syncros Hixon 2.0 handlebars are 740 mm wide and have a 15 mm rise, whilst the Satori Viper stem is 45 mm long and has a 0° angle. The headset is a semi-integrated Acros A-Headset with a Block Lock stem stop. The rims are Cross X18 Disc rims, 30 mm wide, with black stainless steel spokes. The tyres are Schwalbe Nobby Nic Evo Super Trail Tubeless-Easy, measuring 29x2.60".

The bike is also fitted with a Syncros Savona 2.5 saddle and a Syncros M3.0 seatpost. The kickstand is also from Syncros. The motor is a fourth-generation Bosch Performance Line CX with an output of 250 W and a maximum speed of 25 km/h. The display is a Bosch LED Remote with a Kiox 300 screen, and the charger is a Bosch Standard Charger with an output of 4A.

The frame geometry offers a reach of 395 mm, a stack of 643 mm, a seat tube length of 420 mm, a top tube length of 580 mm, a head tube angle of 68 degrees, a seat tube angle of 74 degrees, a head tube length of 120 mm, a chainstay length of 500 mm, a bottom bracket drop of 65 mm, a fork offset of 47 mm, a standover height of 780 mm, a fork installation height of 547 mm, a bottom bracket height of 310 mm and a wheelbase of 1176 mm.

Overall, the Bergamont E-Revox Pro FMN offers high-quality features and high-performance components, making it an attractive e-mountain bike for discerning riders.
