Merida Dual Gauge floor pump on test: Plenty of volume and a clever pressure gauge

As soon as you lift the Merida floor pump, it becomes clear that this is a solid model with a metal base. The cylinder and piston are also made of robust steel. Only the slightly ergonomically shaped handle is made of plastic, but this hardly detracts from the first, high-quality impression.

For the pump head, Merida has opted for a combination model that operates both Presta and auto valves, thus saving you the hassle of having to change the valve. Top: A small push button enables gradual deflation to the right air pressure.

Another special feature is the pressure gauge. As with most pumps, the bar display is located on the smaller inner circle, but the pressure is displayed in 0.1 bar increments between 0 and 2 bar. Only then does the display change to 0.5 bar increments. This is a really clever feature for mountain bikers, whose air pressure is usually only within this range.

Merida Floor Pump Dual Gauge - Info & Price

Practical test: massive volume, massive effort

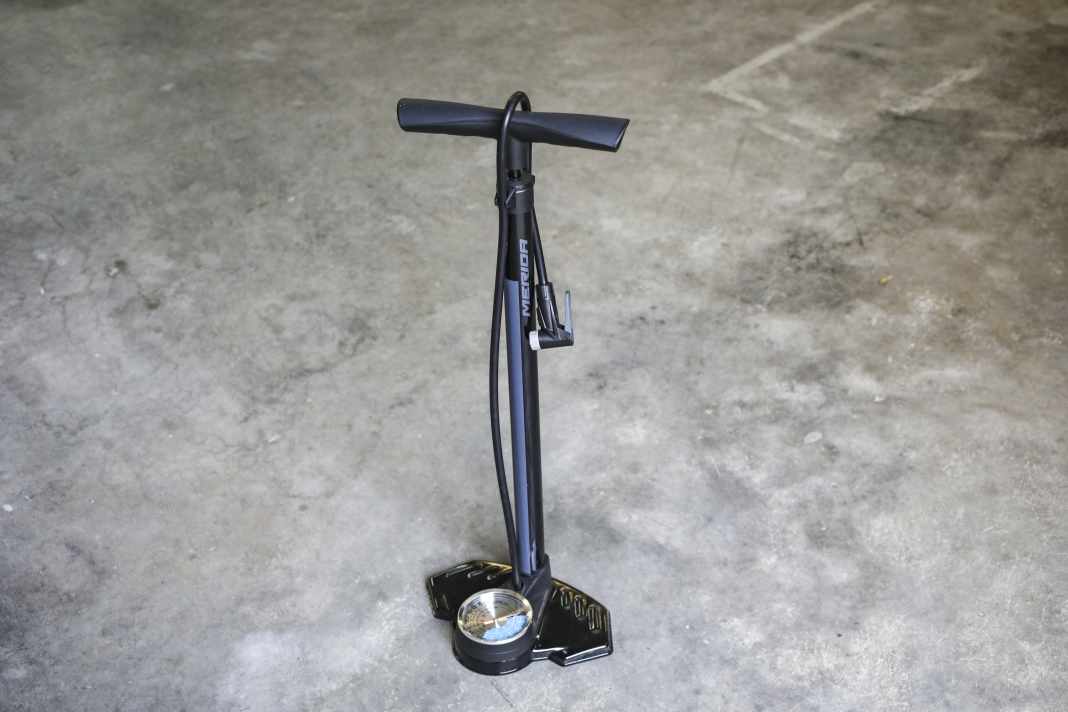

The floor pump from Merida is a real heavyweight - in the truest sense of the word. Large, solid and equipped with a wide metal base, it is clearly aimed at users who need a lot of volume in a short space of time. However, the test shows that the pump has strengths, but also clear ergonomic weaknesses.

Processing & ergonomics

The Merida looks solidly made and its wide metal base immediately makes it clear that it was built for stability. In the test, it stands extremely firmly and securely on the ground - nothing moves even with powerful strokes.

The handle, on the other hand, is less convincing: it is angular and is not particularly comfortable to hold, especially in combination with the high hand forces. This is a real disadvantage for longer pumping processes. The hose is somewhat short, which restricts freedom of movement.

Pumping behaviour & effort

The Merida is large, has a lot of stroke and delivers a correspondingly high volume per pump stroke - ideal for large-volume MTB or gravel tyres. The number of strokes is low, which is generally positive.

However: The manual forces are significantly higher than with many other pumps in the test. The resistance is noticeable and pumping feels hard. Anyone who frequently has to reach high pressures or has rather small hands will quickly reach their limits here.

Pressure gauge: strong in the MTB range, weak beyond that

The large pressure gauge is particularly interesting for mountain bikers, as the range from 0-2 bar is displayed in 0.1-bar increments - very precise and easy to read. Above 2 bar, the display becomes much coarser and less accurate. Overall, the pressure gauge measures too low, which must be taken into account for precise setups.

Valve head: solid, but not perfect

The valve head corresponds to that of the Procraft pump, which was also tested, and basically works well; it clamps both valve types reliably and is airtight. However, air can easily escape when attaching and removing the valve if you don't work properly. Positive: A pressure release valve enables precise readjustment of the tyre pressure.

Conclusion & evaluation Merida floor pump Dual Gauge

The Merida floor pump is a solid, stable volume miracle that is particularly suitable for large-volume MTB tyres. The precise display in the lower pressure range and the secure stand are impressive. However, the high manual force, the angular handle and the inaccurate display in the higher pressure range prevent a top rating. Nevertheless, it is an interesting option for mountain bikers with strong hands.

Advantages

• Extremely stable metal base
• Large pump volume, few strokes required
• Precise display in the MTB range (0-2 bar)
• Pressure release valve for fine adjustment
• Solid valve clamping

Disadvantages

• Very high effort required
• angular, less ergonomic handle
• Inaccurate pressure gauge above 2 bar
• Hose a little short
• Air loss possible when putting on and taking off
