The Xysto is the hardcore pedal in the Time portfolio and, as a logical consequence, has a massive pedal cage. Only the Funn Ripper offers a similar contact surface. Although it weighs over 100 grams more, it comes at a much more affordable price. At 457 grams, the Xysto still weighs slightly less than the new one Shimano XTR PD-M9220 and costs a mere 220 euros.

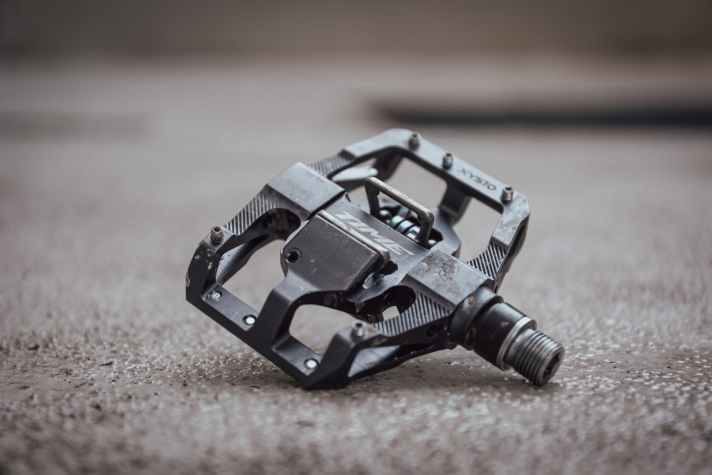

What do you get for the price? A stylish aluminium body that is manufactured in Portugal and the Time-Atac binding system, which we have liked in previous tests with its typically smooth click. With the cleats, you can choose between three release angles and two degrees of freedom - 0 and 5 degrees. The height of the pins can be adjusted, but they are only simple grub screws, some of which don't sit very firmly in the pedal body - a little more screw adhesive could help here.

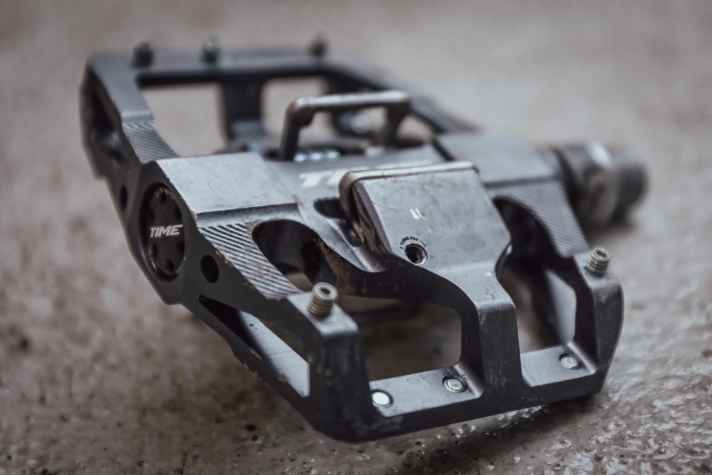

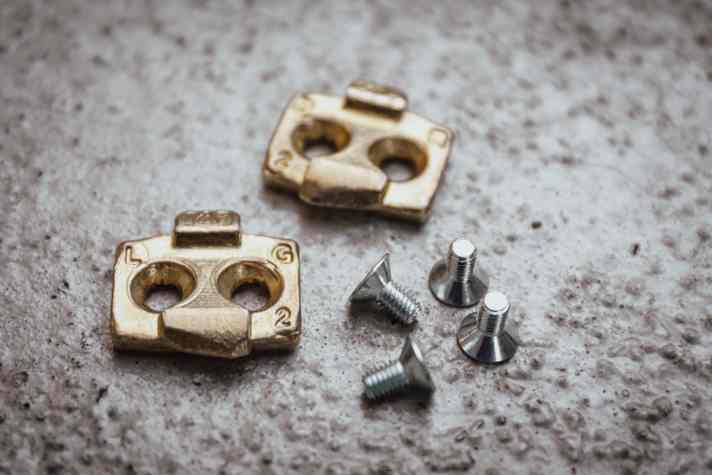

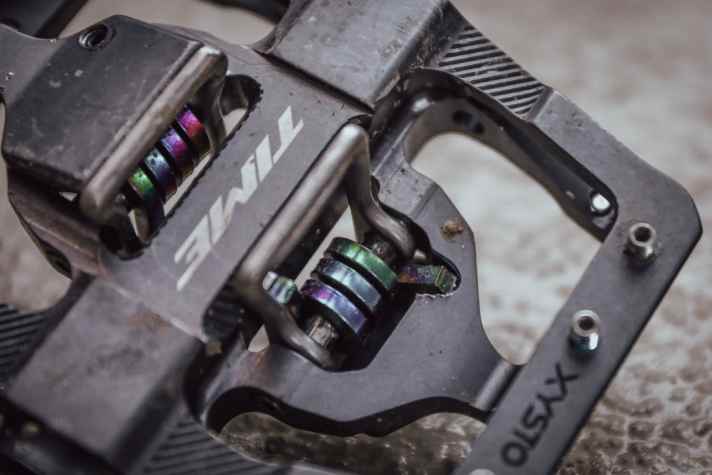

When setting up, it is worth taking a look at the instructions, as the cleats supplied offer two different release angles depending on their orientation. When setting the release hardness, you need to use your feel, as there is no scale or limit stop. Caution: When overtightening, the spring can easily slip out of the guide and damage the material of the cage.
The Time Xysto in the driving test
Anyone who is used to the typical Time binding system will love it. The shoes click into the pedal with a full "tack". The feel is much smoother and less mechanical than with Shimano SPD cleats. This may also be partly due to the brass cleats - which unfortunately wear out a little faster than the standard SPD cleats.

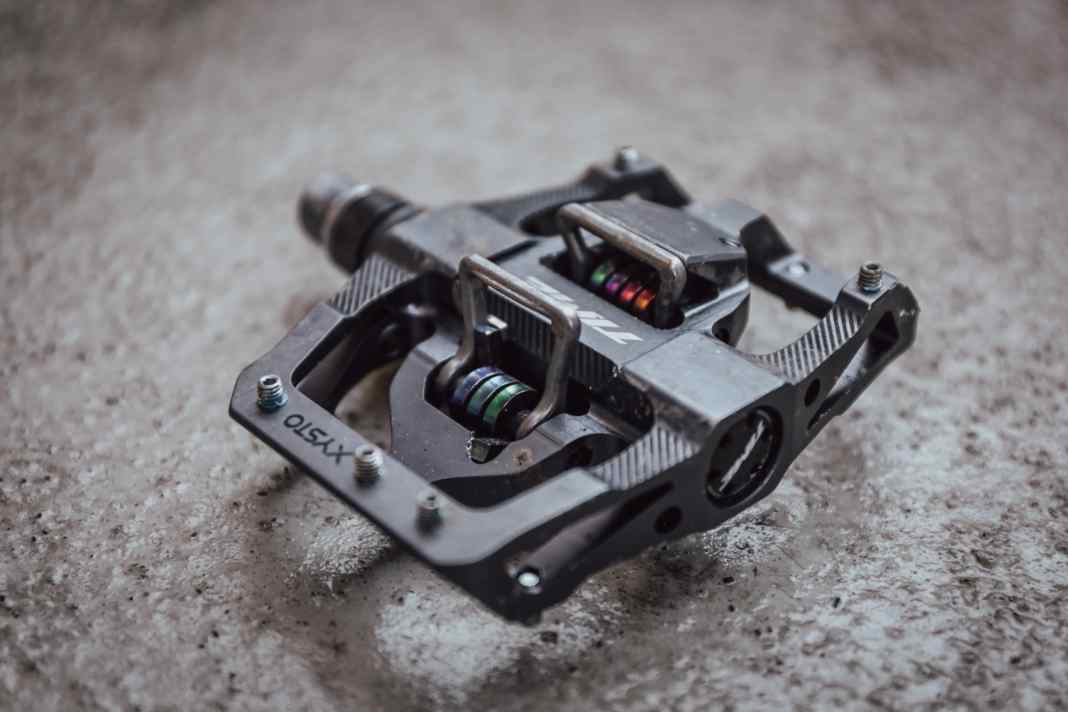

To get into the pedals, you need a little more forward thrust, but then the connection is pleasantly tight and you stand compactly and directly on the pedals. This results in a very secure, confidence-inspiring riding experience off-road. Only the release is a little less defined than with SPD pedals and in some situations it can happen that the cleat gets slightly jammed in the pedal.

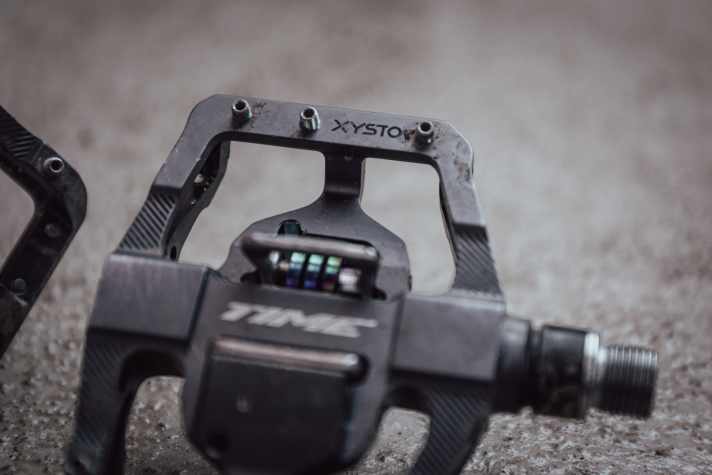

The Xysto with its generous cage and five pins per side is one of the few pedals in the test on which you can ride a few metres unclicked without hesitation if you can't immediately find your way into the binding mechanism in a hectic situation. This feature makes the Xysto an excellent companion for technical missions and enduro adventures.
Time Xysto - Info & Price
- Weight pedals / cleats: 457 / 43 gram
- Footprint / stand height / axle length94 x 79 mm / 10.5 mm/ 57 mm
- Release hardness / angle / freedom of movement8.5 - 10.9 Nm / 10, 13, 17 degrees / 5, 0 degrees
- Special featuresFive adjustable pins per side; large platform; adjustable release hardness
- Price: 220 Euro >> available here
Evaluation & conclusion
| Category | Grade |
| Entry / exit (30%) | 2,3 |
| Driving feel / stability (30%) | 2,0 |
| Cage function (10%) | 1,5 |
| Setup (10%) | 3,7 |
| Weight (20%) | 3,0 |
| BIKE NOTE | 2,4 |
Conclusion: Time Xysto

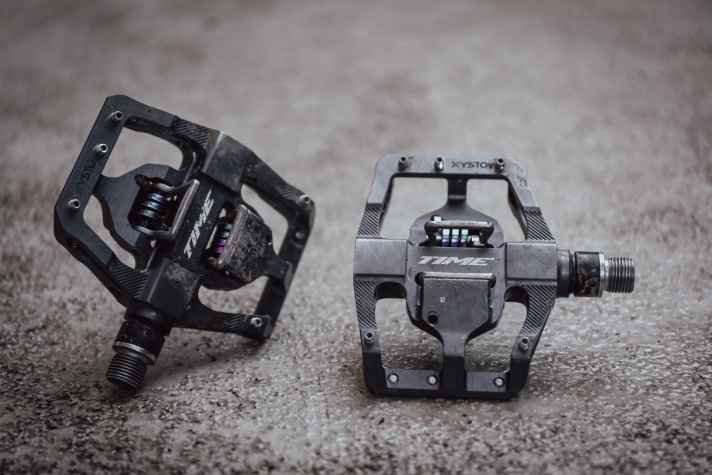

The Xysto's strengths include a pleasantly firm step-in, a compact and secure position on the pedals and acceptable self-cleaning. In addition, you stand relatively securely on the fat cage even when unclicked. Getting off the pedals is a little undefined and awkward in places. The adjustment range of the release hardness is small and there are no end stops. If weight is not an issue, a great alternative for enduro and DH.
