IntendWith new suspension fork in specialised shops

Stefan Loibl

 · 11.09.2020

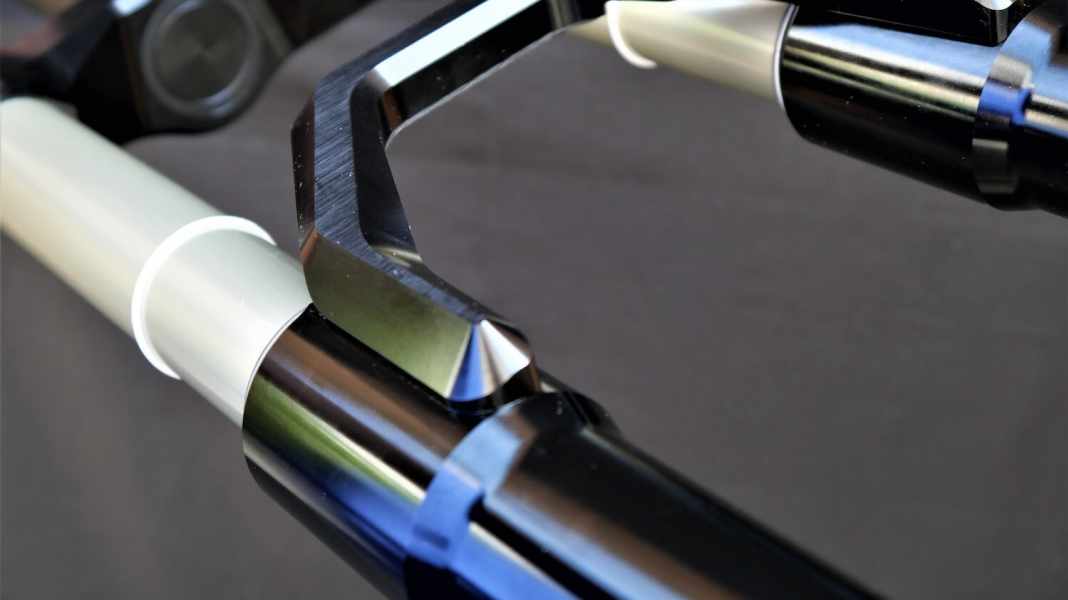

Intend: with new suspension fork in specialised shopsPhoto: Intend
Intend: with new suspension fork in specialised shops
Upside-down forks, smart products and lightweight parts: Cornelius Kapfinger has sold innovative products in small series with Intend. Now he is launching a new suspension fork and entering the specialised trade.

The greatest strength of Cornelius Kapfinger's brand Intend is the absolute freedom with which bike components can be developed and realised. The Lower Bavarian, who lives in Freiburg, can give free rein to his creativity and does not have to compromise on series production or quantities. But this solo endeavour also has its limits. Kapfinger (33) can only assemble a limited number of suspension forks, offer customer service, operate a direct sales organisation and develop innovative products. In addition, the highly specialised products such as the Infinity double bridge fork not everyone's cup of tea.

Intend Blackline: Series products for the trade

Kapfinger has therefore used the experience it has gained to develop products that offer the greatest possible added value and avoid unconventional special solutions. Always with the goal in mind: to create high-end products that carry the promised Intend DNA, but can be consumed by a broader target group. Products that can no longer only be sold in Kapfinger's online shop and built by him, but are still manufactured with great attention to detail. Products that appeal to a wider range of bikers. The result is the Blackline series from Intend, which will be sold via specialist dealers in future. Series products according to Intend standards, where performance is the undisputed centre of attention. The design is more generally acceptable, the products are easier to assemble, operate and explain.

Most read articles

1

2

3

The previous Intend products such as the Grace stem or the Hero upside-down suspension fork are still available, unchanged, directly from Intend. Kapfinger will continue to try out and realise every idea here, no matter how clever. A stem series with only 13 units? Why not? Upside-down forks in individually selected colours? Intend remains the small forge for technology-loving optimisers, tuners and individualists.

How do you like this article?
  The classic Intend top cap with M6 aluminium screw weighs 11 grams as a set and costs 22 euros.Photo: Intend The classic Intend top cap with M6 aluminium screw weighs 11 grams as a set and costs 22 euros.  Cornelius Kapfinger assembles all of his Intend products himself. He gets support for the Blackline series.Photo: Intend Cornelius Kapfinger assembles all of his Intend products himself. He gets support for the Blackline series.  The five spacers weigh 29 grams, are each seven millimetres high and cost 19 euros as a set.Photo: Intend The five spacers weigh 29 grams, are each seven millimetres high and cost 19 euros as a set.  The Intend Blackline Stiffmaster headset increases the stiffness of the cockpit thanks to additional support via needle bearings. 85 grams, 69 euros.Photo: Intend The Intend Blackline Stiffmaster headset increases the stiffness of the cockpit thanks to additional support via needle bearings. 85 grams, 69 euros.

Nevertheless, the Intend Blackline series will not become a mass product. The quantities remain comparatively small. All components are developed in Freiburg in close co-operation with the manufacturers. After production, each individual component is checked in Germany. More precisely, in Freiburg, by Cornelius Kapfinger himself. Only then are the products assembled in Freiburg by professional mechanics. The Intend Blackline therefore remains "made in Germany".

Intend Blackline Ebonite

The Blackline Ebonite is the first "normal" suspension fork from Intend. Kapfinger has channelled all the experience gained from its upside-down forks into this fork. In terms of application, the Blackline Ebonite is positioned between a Rockshox Lyrik and ZEB or a Fox 36 and 38 and can therefore be used on trail bikes, enduro bikes and freeriders - with or without an electric drive.

  35 millimetre stanchions, super-sensitive response and weighing 2280 grams: the new Intend Blackline Ebonite 29er suspension fork.Photo: Intend 35 millimetre stanchions, super-sensitive response and weighing 2280 grams: the new Intend Blackline Ebonite 29er suspension fork.
  Dip tubes, dropouts and the two bridges are made of 7075 aluminium.Photo: Intend Dip tubes, dropouts and the two bridges are made of 7075 aluminium.  A volume spacer can be used to change the size of the positive chamber in order to adjust the progression of the fork.Photo: Intend A volume spacer can be used to change the size of the positive chamber in order to adjust the progression of the fork.  As with all Intend suspension forks, the largest components of the Blackline Ebonite are CNC-machined.Photo: Intend As with all Intend suspension forks, the largest components of the Blackline Ebonite are CNC-machined.  The oils and seals used in the Ebonite fork are tried and tested products. For example, the D35 SKF dust wipers, which can be found in all Rockshox forks around the world. This should make servicing and the supply of spare parts as uncomplicated as possible.Photo: Intend The oils and seals used in the Ebonite fork are tried and tested products. For example, the D35 SKF dust wipers, which can be found in all Rockshox forks around the world. This should make servicing and the supply of spare parts as uncomplicated as possible.

Although the "regular" design of the suspension fork means more unsprung mass, it should also increase the torsional rigidity of the Ebonite. According to Kapfinger, the ride feel is not necessarily "better" as a result, but it is more intuitive at first, as it corresponds to the habits of most bikers. Details such as the stiff, thick-walled steerer tube and the stiffening cap (cover at the bottom of the steerer tube) have been adopted from the upside-down forks and are also used on the Ebonite. The Blackline Ebonite shares the air suspension technology with the Intend Flash and Edge. The positive and negative chambers are filled simultaneously via a valve. The size of the positive chamber can be changed with a volume spacer to adjust the progression of the fork.

The cushioning of the Intend Blackline Ebonite is also already familiar from other Intend suspension forks like the Edge and ensures the best response behaviour, very good absorption capacity and a wide adjustment range.

An external low-speed compression adjustment (Compression) and low-speed rebound adjustment (Rebound) are available for setting the damping. The basic damping settings of the Blackline Ebonite were fine-tuned together with the Ibis Fidlock Racing Team to enable the fork to be ideally tuned for almost every rider. Adrian Vesenbeck's team and Cornelius Kapfinger have carried out countless test rides to determine a setup that should allow uncompromising racing as well as smooth surfing on flow trails.

  The new Intend Blackline Ebonite, here installed in a Nicolai Enduro, is designed to compete with the more massive all-mountain and enduro forks from Rockshox and Fox.Photo: Intend The new Intend Blackline Ebonite, here installed in a Nicolai Enduro, is designed to compete with the more massive all-mountain and enduro forks from Rockshox and Fox.

Intend Blackline Ebonite - the facts

  • Wheel size 29 inch
  • Air suspension system
  • 140 - 180 mm suspension travel
  • Internally customisable via C-clips (all included)
  • Axle 110x15 mm
  • 7" Postmount brake mount (180 mm discs can be fitted without adapter)
  • Max. brake disc size 223 mm
  • Shank length 215 mm
  • 44 mm offset
  • 35 mm standpipe diameter
  • Damping settings: Lowspeed rebound and compression damping
  • Suspension adjustment: air pressure and progression using a volume spacer (3 settings)
  • Service can be carried out by yourself, alternatively at Intend or at the service partner Lemon Shox in Nuremberg
  • Mudguard recommendation: Mudhugger short
  • Weight 2280 grammes
  • Price: 1659 euros (16% VAT) or 1699 euros (19%)
  Kapfinger had the new Ebonite fork tested intensively on laboratory test benches at the EFBE test institute.Photo: Intend Kapfinger had the new Ebonite fork tested intensively on laboratory test benches at the EFBE test institute.
