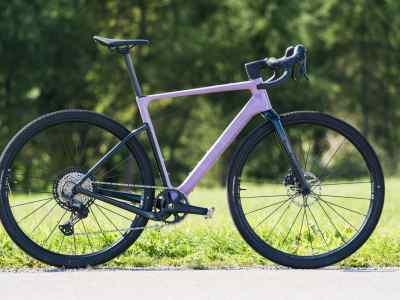

VAN RYSEL EDR-Gravel GF GRX 1x12
Model: EDR-Gravel GF GRX 1x12
Model year: 2026
Category: Gravel
Frame material: Carbon
Weight: 9.12 kg
Wheel size: 28"/622mm
Test result
| Property | Weighting | Grade |
|---|---|---|
| Lab | 75% | 2,6 |
| Complete bike weight | 25% | 3,0 |
| Rear comfort | 20% | 2,0 |
| Front comfort | 10% | 4,0 |
| Acceleration | 10% | 2,7 |
| Ride stability | 10% | 1,7 |
| Equipment | 25% | 1,6 |
| Brakes | 5% | 2,0 |
| Shifting | 5% | 3,0 |
| Tires | 5% | 1,0 |
| Paint | 5% | 1,0 |
| Maintenance / Adjustments | 5% | 1,0 |
| Final grade | 2,4 |
Strengths and weaknesses
| Complete bike weight | 9120 g |
| Ride stability | 8,25 N/mm |
| Rear comfort | 128,09 N/mm |
| Front comfort | 131,71 N/mm |
| Sprint / BB stiffness | 51,23 N/mm |
Geometry - measurements overview
H
G
F
D
E
A
J
I
C
B
K
L
M
| A - Head tube length | 150 mm |
| B - Seat tube length | 510 mm |
| C - Wheelbase | 1034 mm |
| D - Top tube length | 549 mm |
| E - Stack | 582 mm |
| F - Stack+ | 650 mm |
| G - Reach | 375 mm |
| H - Reach+ | 521 mm |
| I - Seat angle | 72.5 ° |
| J - Head angle | 71.2 ° |
| K - STR | 1.55 |
| L - STR+ | 1.25 |
Tests & Reviews
Equipment
| Rear brakes | Shimano GRX ST-RX 610 / BR-RX 410 |
| Front brakes | Shimano GRX ST-RX 610 / BR-RX 410 |
| Brakes | Shimano GRX BR-RX 410 |
| Front brake disc | 160 |
| Rear brake disc | 160 |
| Drivetrain | Shimano GRX FD-RX 822 |
| Shift levers | Shimano GRX ST-RX 610 |
| Drivetrain type | Derailleur |
| Number of gears | 12 |
| Fork | Van Rysel Carbon |
| Crankset | Shimano GRX FC-RX 610 |
| Sprocket | Shimano XT |
| Handlebar | Van Rysel |
| Stem | Van Rysel |
| Saddle | Van Rysel |
| Seatpost | Van Rysel Carbon |
| Wheelset | DT-Swiss G 1800 |
| Wheel size | 28"/622mm |
| Front tire | Schwalbe G-One R TLR 45-622 |
| Rear tire | Schwalbe G-One R TLR 45-622 |
