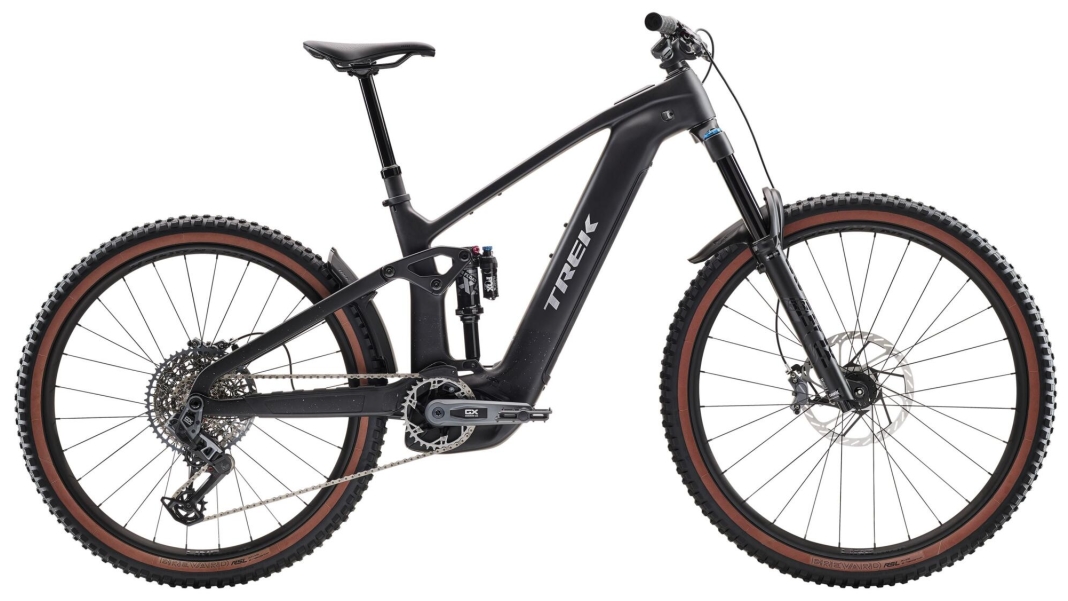

Trek Rail+ 9.8 GX AXS T-Type Gen 5
Model: Rail+ 9.8 GX AXS T-Type Gen 5
Model year: 2026
Price: 7.499,00 €
Category: Fully
Frame material: Carbon
Weight: 24 kg
Permissible total weight: 136 kg
Wheel size: 29"/622mm, 27.5“/584mm
Tests & Reviews
Equipment
| Rear brakes | SRAM Maven Bronze hydraulic 4-piston disc brake SRAM HS2, 6-hole, 200 mm // SRAM HS2, 6-hole, 220 mm Max. Brake disc pressure |
| Front brakes | SRAM Maven Bronze hydraulic 4-piston disc brake SRAM HS2, 6-hole, 200 mm // SRAM HS2, 6-hole, 220 mm Max. Brake disc pressure |
| Frame | Main frame made of OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal cable routing, Motor Armor, angle-adjustable headset, geometry adjustable via Mino Link, adjustable leverage ratio, 34.9 mm Si |
| Frame material | Carbon |
| Drivetrain | SRAM GX Eagle AXS, T-Type |
| Shift levers | SRAM AXS POD |
| Drivetrain type | Derailleur |
| Number of gears | 1 |
| Fork | FOX Performance Elite Float 38, FLOAT EVOL air suspension, GRIP X damper, tapered steerer tube, 44 mm pre-bend, Boost110, 15 mm KaboltX axle, 160 mm travel |
| Crankset | SRAM GX, 160 mm crank arm length |
| Sprocket | SRAM Eagle XS-1275, T-Type, 10-52 t., 12-speed |
| Drive | SRAM GX Eagle, T-Type, 12-speed |
| Drive type | Chain |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm Rise, 780 mm width |
| Grips | Bontrager XR Trail Elite, nylon clamp |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0 degrees, 45 mm length |
| Saddle | Verse Short Comp, steel stays, 145 mm width |
| Seatpost | Bontrager Line dropper, 200 mm stroke, MaxFlow, internal cable routing, 34.9 mm, 515 mm length |
| Wheelset | Bontrager Line Comp 30, Tubeless Ready, 6-hole disc mount, Boost110, 15 mm thru axle, 29" Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5'' |
| Wheel size | 29"/622mm, 27.5“/584mm |
| Tires | Bontrager Brevard RSL SE, tubeless-ready, triple compound, aramid bead core, 60 TPI, 29 x 2.50 // Bontrager Brevard RSL SE, tubeless-ready, triple compound, aramid bead core, 60 TPI, 27.5 x 2.50 |
| Pedals | VP-536, nylon platform |
| Mudguards | Trek 27.5" custom mudguard |
| Motor manufacturer / model | Bosch Smart System Performance Line CX BDU38, 250 watts, 85 Nm, up to 32 km/h (max. support up to 25 km/h in EU and APAC) |
| Motor type | up to 25 km/h |
| Display | Bosch System Controller BRC3100, Smart System |
| Battery | Bosch PowerTube 800 Wh, Smart System |
| Battery capacity (Wh) | 800 |
| Battery mount | Ontube |
| Battery type | Lithium-ion (Li-ion) |
| Charger | Bosch standard charger 4 A, 230 V, Smart System |
