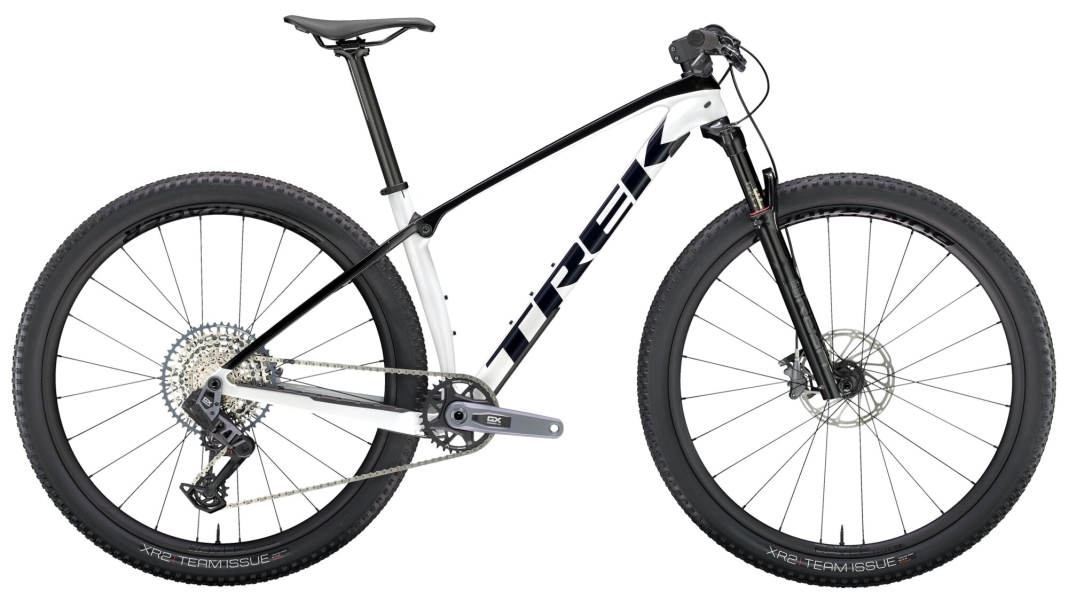

Trek Procaliber 9.7

The "Procaliber 9.7" model from Trek, released in 2024, is a state-of-the-art mountain bike that stands out for its advanced technology and high-quality components. The price for this model is 3,799 EUR. The frame is made from OCLV Mountain Carbon and features the IsoSpeed system, a tapered head tube, the Knock Block, internal cable routing, a Balanced Post Mount disc brake mount and Boost148. The maximum load capacity is 136 kg, whilst the bike itself weighs just 10 kg.

The braking system comprises SRAM Level Bronze hydraulic 2-piston disc brakes at the front and rear, with SRAM Centerline brake discs, each featuring a rounded edge and a 6-hole disc mount. The front brake discs have a diameter of 160 mm, whilst the rear discs also measure 160 mm. The shifter is a SRAM Eagle AXS POD, and the fork is a RockShox Reba RL with Solo Air suspension, Motion Control damper and remote lockout. It has a tapered steerer tube, a 42 mm offset and offers 110 mm of travel.

The crankset consists of a SRAM GX Eagle, DUB, T-Type with 34 teeth, a chainline of 55 mm and a crank arm length of 175 mm. The bottom bracket is a SRAM DUB with a 92 mm press-fit. The cassette is an SRAM Eagle XS-1275, T-Type, with a 10–52-tooth range and 12 speeds. The drivetrain is also an SRAM GX Eagle, T-Type, with 12 speeds.

The handlebars are an integrated Bontrager RSL handlebar/stem unit made from OCLV Carbon, with a width of 750 mm and a stem with a -13-degree rise and a length of 90 mm. The wheelset consists of Bontrager Kovee Elite 30 wheels made from OCLV Mountain Carbon, which are tubeless-ready and feature a 6-hole disc mount. The front axle is a Boost110 with a 15 mm thru-axle, and the rear axle is a Boost148 with a 12 mm thru-axle.

The saddle is a Bontrager Verse Elite with austenitic rails and a width of 145 mm. The seatpost is made from Bontrager Pro OCLV Carbon with a diameter of 31.6 mm, no offset and a length of 400 mm.

The packaging dimensions are 23 mm wide, 119 mm high and 201 mm long. Further geometric data include a reach of 50 mm, a stack of 62 mm, a seat tube length of 54 mm, a top tube length of 68 mm, a head tube angle of 69 degrees, a seat tube angle of 73 degrees, a head tube length of 12 mm, a chainstay length of 43 mm, as well as a standover height of 84 mm and a wheelbase of 119 mm.

The Trek Procaliber 9.7 AXS XX is therefore a versatile and high-performance mountain bike that is suitable for both ambitious recreational riders and professionals.
