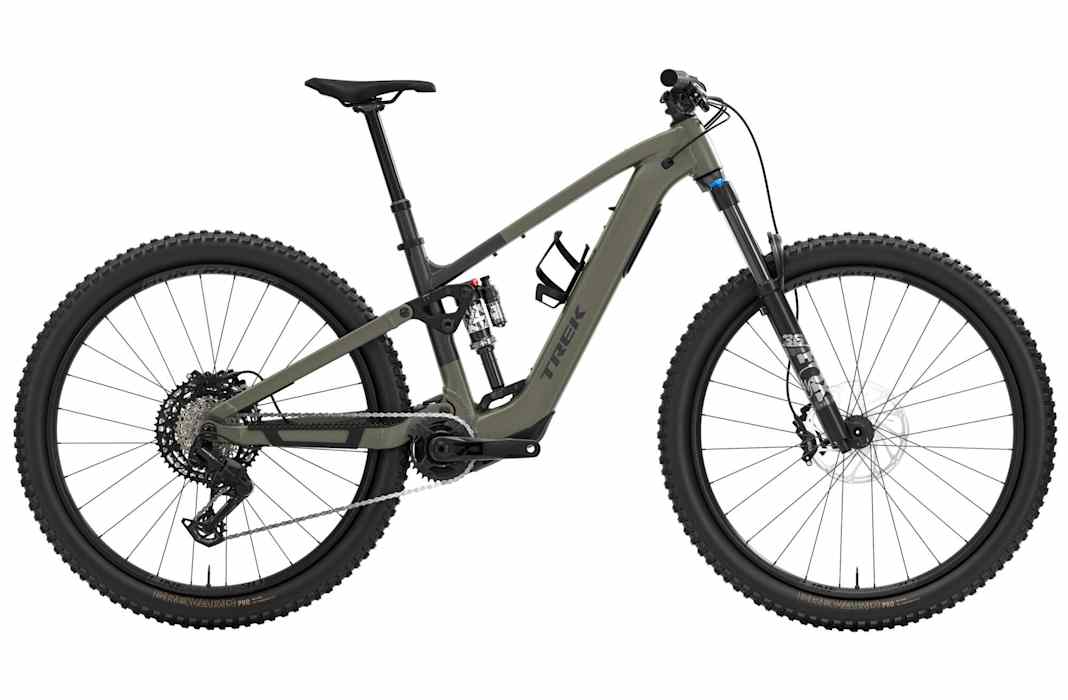

Trek Fuel+ EX 8 Gen 2
3 Images
Model: Fuel+ EX 8 Gen 2
Model year: 2026
Price: 5.499,00 €
Category: Fully
Frame material: Aluminium
Weight: 21 kg
Permissible total weight: 136 kg
Wheel size: 29"/622mm
Tests & Reviews
Equipment
| Rear brakes | Hydraulic 4-piston disc brake SRAM DB 8 SRAM CenterLine 2.0, 6-hole, 200 mm // SRAM CenterLine, 6-hole disc mount, rounded edge, 200 mm Max. Brake disc pressure |
| Front brakes | Hydraulic 4-piston disc brake SRAM DB 8 SRAM CenterLine 2.0, 6-hole, 200 mm // SRAM CenterLine, 6-hole disc mount, rounded edge, 200 mm Max. Brake disc pressure |
| Frame | Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage ratio, guided internal cable routing, replaceable aluminium rocker arm, replaceable lower shock mount, down tube protector, shuttle protector, |
| Frame material | Aluminium |
| Drivetrain | SRAM Eagle 70, T-Type |
| Shift levers | SRAM Eagle 70, 12-speed |
| Drivetrain type | Derailleur |
| Number of gears | 1 |
| Crankset | SRAM EAGLE 70, 160 mm crank arm length |
| Sprocket | SRAM Eagle XS-1270, T-Type, 10-52 t., 12-speed |
| Drive | SRAM Eagle 70, T-Type, 12-speed |
| Drive type | Chain |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Handlebar | Race Face Turbine, aluminium, 35 mm, 40 mm rise, 780 mm width |
| Grips | Trek Line Comp, nylon screw clamp |
| Stem | Bontrager Elite, 35 mm, 0 degree, 45 mm length |
| Saddle | Bontrager Verse Short, stainless steel stays |
| Seatpost | Bontrager Line dropper, 200 mm stroke, MaxFlow, internal cable routing, 34.9 mm, 515 mm length |
| Wheelset | Bontrager Line TLR 30, tubeless ready, 28-hole, Presta valve Bontrager, aluminium, sealed bearing, aluminium axle, 6-hole disc mount, Boost110, 15 mm thru axle Bontrager, aluminium, sealed bearing, 6-hole disc mount, Rapid Drive 108 |
| Wheel size | 29"/622mm |
| Tires | Bontrager Brevard Pro XR, tubeless-ready, dual compound, aramid bead core, 60 TPI, 29 x 2.50 |
| Motor manufacturer / model | TQ HPR60, 60 Nm, 300 W max. continuous rated power, 350 W maximum power |
| Motor type | up to 25 km/h |
| Display | TQ LED display with Bluetooth and ANT+ connectivity |
| Battery | TQ 580 Wh |
| Battery capacity (Wh) | 360 |
| Battery mount | Gepäckträger |
| Charger | TQ charger, 4 A |
