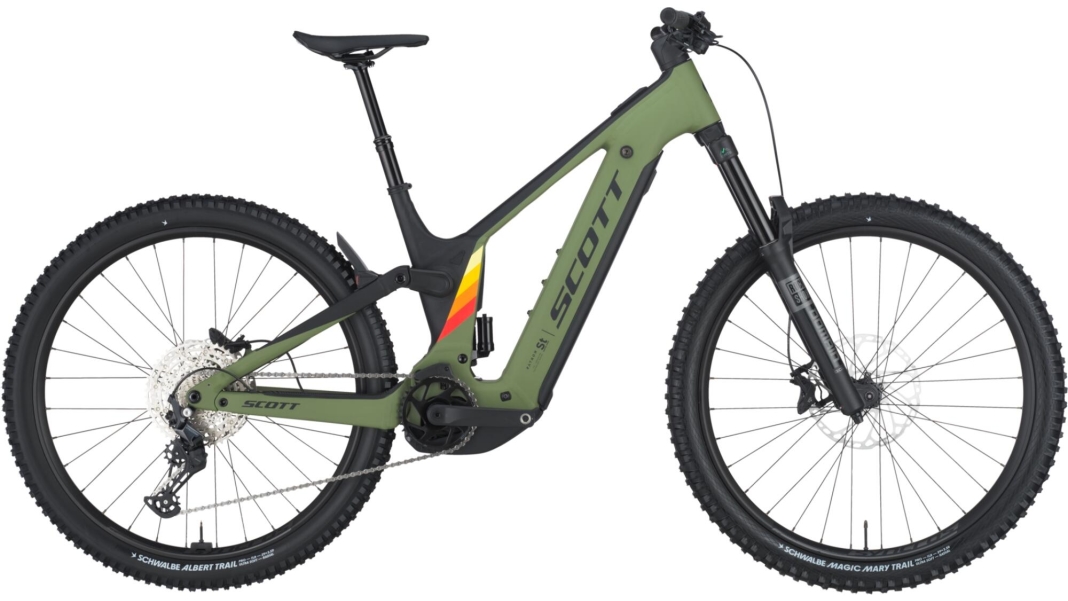

Scott Patron ST 910
Model: Patron ST 910
Model year: 2025
Price: 6.499,00 €
Category: Fully
Frame material: Aluminium
Weight: 25 kg
Permissible total weight: 128 kg
Wheel size: 29"/622mm
Tests & Reviews
Equipment
| Rear brakes | Shimano Deore M6120 4-piston disc brake |
| Front brakes | Shimano Deore M6120 4-piston disc brake |
| Front brake disc | Shimano SM-RT64 CL 220mm |
| Rear brake disc | Shimano SM-RT64 CL 203mm |
| Frame | Alloy frame, integrated suspension technology, Virtual 4-Link kinematics / adjustable head angle, Syncros cable integration system, Bosch Smart System / UDH interface / 12x148mm with 55mm chainline, Bosch PowerMore Ready |
| Frame material | Aluminium |
| Drivetrain | Shimano Deore RD-M6100 SGS, Shadow Plus / 12 Speed |
| Shift levers | Shimano Deore SL-M6100-IR / Rapidfire Plus |
| Drivetrain type | Derailleur |
| Number of gears | 12 |
| Fork | RockShox Domain R Air / E-bike / Reb Adj. / QR axle 15x110mm, 44mm offset / tapered steerer / 170mm travel |
| Rear shock | RockShox SuperDeluxe Piggy Back Trunnion / Reb Adj. / Large air volume / Travel 150-100-Climb / T185x55mm |
| Fork travel (mm) | 170 |
| Rear shock travel (mm) | 150 |
| Crankset | FSA Alloy |
| Sprocket | Shimano CS-M6100 / 10-51 |
| Drive | Shimano CN-M6100 |
| Drive type | Chain |
| Headset | Syncros – Acros Angle Adjust & Cable Routing HS System / ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Handlebar | Syncros Hixon 2.0 6061 alloy, sizes S & M: 15 mm rise / sizes L & XL: 25 mm rise / 8° back sweep / 780 mm |
| Grips | Syncros Endurance lock-on grips |
| Stem | Syncros AM 2.0, Syncros Cable Integration System, 4° rise / 6061 alloy / 31.8 mm / 1 1/8" |
| Saddle | Syncros Tofino-E 2.5 Regular |
| Seatpost | Syncros Duncan Dropper Post 2.5 / 31.6 mm, S size 125 mm / M size 150 mm / L size 170 mm / XL size 200 mm |
| Wheel size | 29"/622mm |
| Front tire | Schwalbe Magic Mary 29x2.5", SuperGravity / PSF / Ultra Soft, tubeless-ready, 120 TPI foldable bead |
| Rear tire | Schwalbe Explore 29x2.5", SuperGravity / PSF / Soft, tubeless-ready, 120 TPI foldable bead |
| Front hub | Formula CL-811 / 15x110mm |
| Rear hub | Formula ECT-148M / Boost 148x12mm |
| Spokes | Stainless Black |
| Front light | Front light cable pre-installed |
| Rear light | Syncros integrated rear mudguard light |
| Motor manufacturer / model | Bosch Performance CX, EU: 25 km/h / INT: 20 mph |
| Motor type | up to 25 km/h |
| Display | Bosch System Controller, Mini Remote |
| Battery | PowerTube 800Wh |
| Battery capacity (Wh) | 800 |
| Battery mount | Intube |
| Battery type | Lithium-ion (Li-ion) |
| Battery voltage (V) | 36V |
| Charger | 4A Charger |
