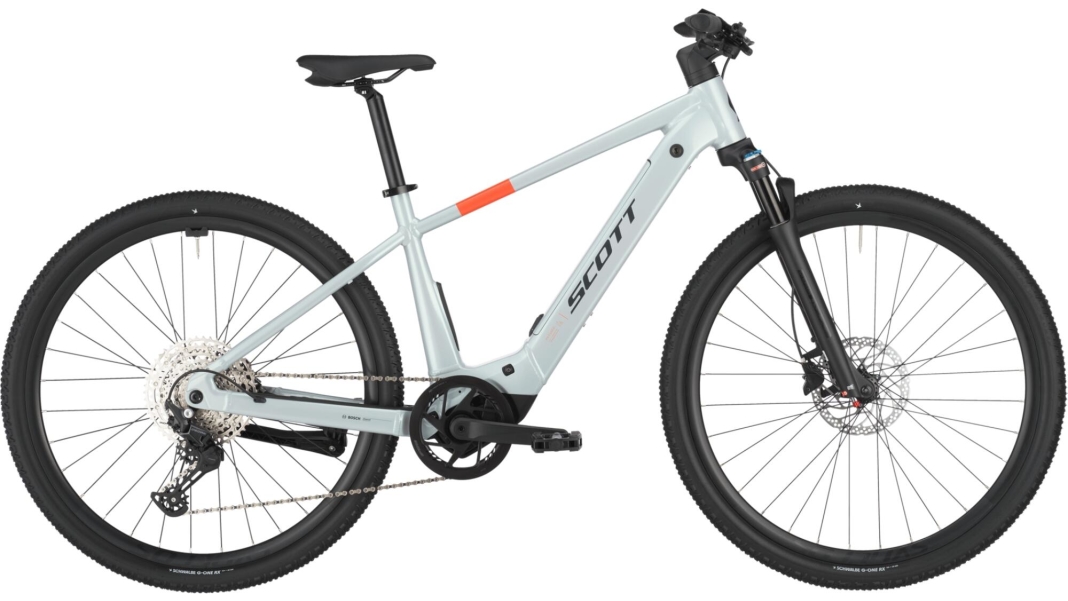

Scott Passage 20
Model: Passage 20
Model year: 2025
Price: 3.299,00 €
Category: Urbanbike
Frame material: Aluminium
Weight: 20 kg
Permissible total weight: 128 kg
Wheel size: 29"/622mm
Tests & Reviews
Equipment
| Rear brakes | Shimano BR-MT200 Disc |
| Front brakes | Shimano BR-MT200 Disc |
| Front brake disc | Shimano SM-RT30 CL 180mm |
| Rear brake disc | Shimano SM-RT30 CL 160mm |
| Frame | Alloy S–XL = 29" / 6061 alloy custom butted tubing, top-extraction battery |
| Frame material | Aluminium |
| Drivetrain | Shimano Deore RD M6100SGS 12-speed |
| Shift levers | Shimano Deore SL-M6100RA |
| Drivetrain type | Derailleur |
| Number of gears | 12 |
| Fork | SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt axle / Remote lock-out / Alloy steerer / 75mm travel |
| Fork travel (mm) | 75 |
| Crankset | FSA CK-220 170mm |
| Sprocket | Shimano CS-M6100-12 10-51T |
| Drive | KMC E12S |
| Drive type | Chain |
| Headset | Acros / 1.5" – 1.5", semi-integrated, OD 50/61 mm / ID 44/55 mm |
| Handlebar | Syncros Welded Alloy Combo 680mm / 9° backsweep / 8° upsweep / 70mm / with front light mount |
| Saddle | Syncros Capilano |
| Seatpost | Syncros M3.0 / 31.6 |
| Wheel size | 29"/622mm |
| Front tire | Schwalbe G-One RX Performance, 700x50C |
| Rear tire | Schwalbe G-One RX Performance, 700x50C |
| Front hub | Shimano HBTC50015B CL / 15x100mm |
| Rear hub | Shimano FHTC500MSB CL / 12x142mm |
| Spokes | Black Spokes |
| Pedals | Marwi SP-827 |
| Kickstand | Hebie |
| Motor manufacturer / model | Bosch Performance SX, EU: 25 km/h |
| Motor type | up to 25 km/h |
| Display | Bosch Purion 200 |
| Battery | Compact Tube 400Wh |
| Battery capacity (Wh) | 400 |
| Battery mount | Intube |
| Battery type | Lithium-ion (Li-ion) |
| Battery voltage (V) | 36V |
| Charger | 2A Charger |
