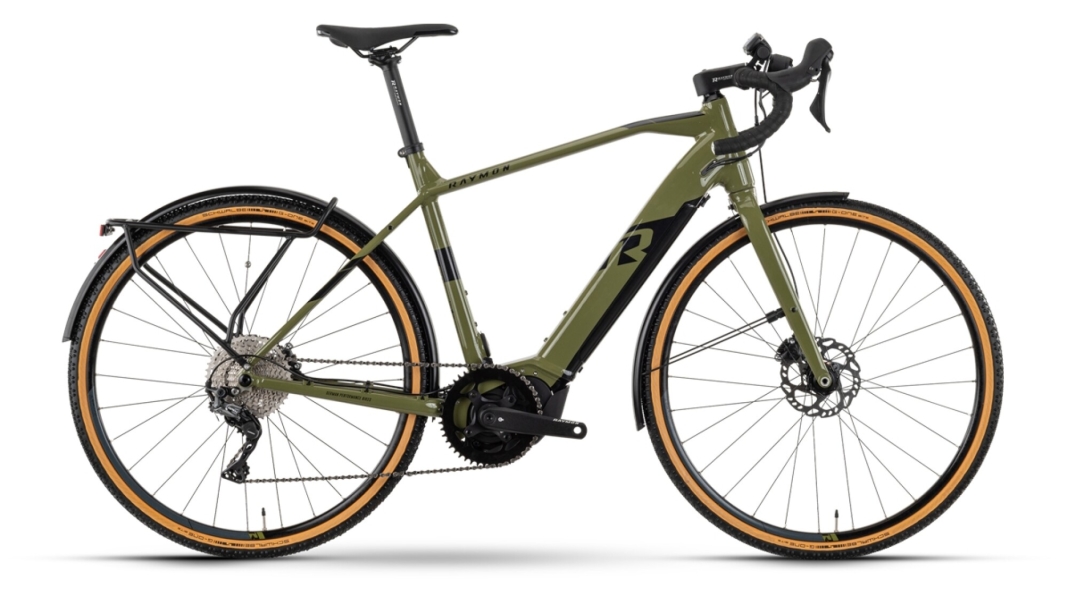

R Raymon GravelRay E 7.5 2022
Model: GravelRay E 7.5 2022
Model year: 2023
Price: 4.199,00 €
Category: Gravel
Weight: 21 kg
Permissible total weight: 120 kg
Tests & Reviews
Equipment
| Rear brakes | Shimano BR-RX400, 2-piston, hydraulic disc brake |
| Front brakes | Shimano BR-RX400, 2-piston, hydraulic disc brake |
| Brakes | Front: Shimano BR-RX400, 2-piston, hydraulic disc brake; Rear: Shimano BR-RX400, 2-piston, hydraulic disc brake |
| Front brake disc | Shimano SM-RT70, 160 mm, Centre Lock |
| Rear brake disc | Shimano SM-RT70, 160 mm, Centre Lock |
| Brake levers | Shimano BL-RX600, adjustable brake lever |
| Frame | 28", 6061 alloy, integrated battery |
| Drivetrain | Shimano GRX, RD-RX812, Shadow Plus, 11-speed |
| Shift levers | Shimano GRX, ST-RX600 |
| Fork | Alloy Gravel Disc, tapered |
| Bottom bracket | R Raymon, Narrow Wide, 48 T |
| Crankset | R Raymon EC40, forged aluminium, JIS |
| Sprocket | Shimano CS-M5100, 11-42 T |
| Drive | KMC e11S |
| Headset | R Raymon ZS44/ZS56 |
| Handlebar | R Raymon Drop 31.8 mm, 440 mm, drop: 116 mm |
| Grips | R Raymon Tape |
| Stem | R Raymon 31.8, 6°, Ahead |
| Saddle | R Raymon |
| Seatpost | R Raymon, 31.6 mm, 350 mm, patent |
| Seat clamp | R Raymon 34.9, hex socket |
| Wheelset | 28"/622mm, 28"/635mm |
| Rims | Mach 1 650E, beaded, tubeless-ready |
| Tires | Schwalbe G-One Bite, Performance, 40-622, 28x1.5 |
| Front hub | R Raymon DA210F, Centre Lock, 12x100 mm, thru-axle |
| Rear hub | R Raymon DA210R, Centre Lock, 12x142 mm, thru-axle, rear gear hub |
| Spokes | Mach1, stainless steel |
| Front light | Litemove HKSE-70, 70 lx |
| Mudguards | Curana Apollo |
| Rack | R Raymon, load capacity 15 kg |
| Motor manufacturer / model | Yamaha PW-ST, 250 W, 70 Nm |
| Display | Yamaha Display A, LCD display |
| Control unit | Integrated in the display |
| Battery | Yamaha ML500, 500 Wh, 36 V |
| Battery capacity (Wh) | 500 |
| Charger | Yamaha quick charger, 4 A |
