Brakes	v:R RAYMON Components, V-brake set\|h:
Frame	24" 6061 alloy, children’s bike, O.L.D. 135mm
Drivetrain	SHIMANO, TOURNEY, RD-TY300, 7-speed
Shift levers	SHIMANO, TOURNEY, SL-RS35-7R, REVO SHIFTER
Front derailleur	SHIMANO, TOURNEY, FD-TY500-TS6, TOP-SWING, DUAL-PULL
Fork	SR SUNTOUR, M3010-A P
Bottom bracket	R RAYMON Components, JIS 4-square
Crankset	SHIMANO, FC-TY301, Length: 150mm, Size: 42x34x24T
Sprocket	SHIMANO, MF-TZ500-7, 14–34T
Drive	KMC, HV-500
Headset	R RAYMON Components, headset, 1 1/8"
Handlebar	R RAYMON Components, Width: 580mm, Rise: 30mm, Bar bore: Ø25.4mm
Grips	R RAYMON Components, Grips, Width: 75mm
Stem	R RAYMON Components, Alloy Stem, Length: 60mm, Angle: 20°, BarBore: Ø28.6mm
Saddle	R RAYMON Components, Saddle
Seatpost	R RAYMON Components, Ridgid seatpost, Length: 300mm
Seat clamp	R RAYMON Components, seat clamp, Ø31.8mm
Wheelset	RIM: RODI, AIRLINE 1, 24" (507x19C) HUB: SHIMANO, NEXUS, DH-C3000-3N-NT, 6V 3.0W, HUB DYNAMO; RIM: RODI, AIRLINE 1, 24" (507x19C) HUB: R RAYMON Components, Steel, Quick Release
Rims	RODI, AIRLINE 1, 24" (507x19C)
Tires	CONTINENTAL, Explorer, 24x1.75 (47-507)
Pedals	R RAYMON Components, Plastic Pedal
Front light	HERRMANS, MR GO Dynamo
Rear light	HERRMANS, H-Trace Mini, parking light, LED, StVZO-approved
Mudguards	R RAYMON Components, Fender Set
Kickstand	R RAYMON Components, Kickstand, Centre Mount

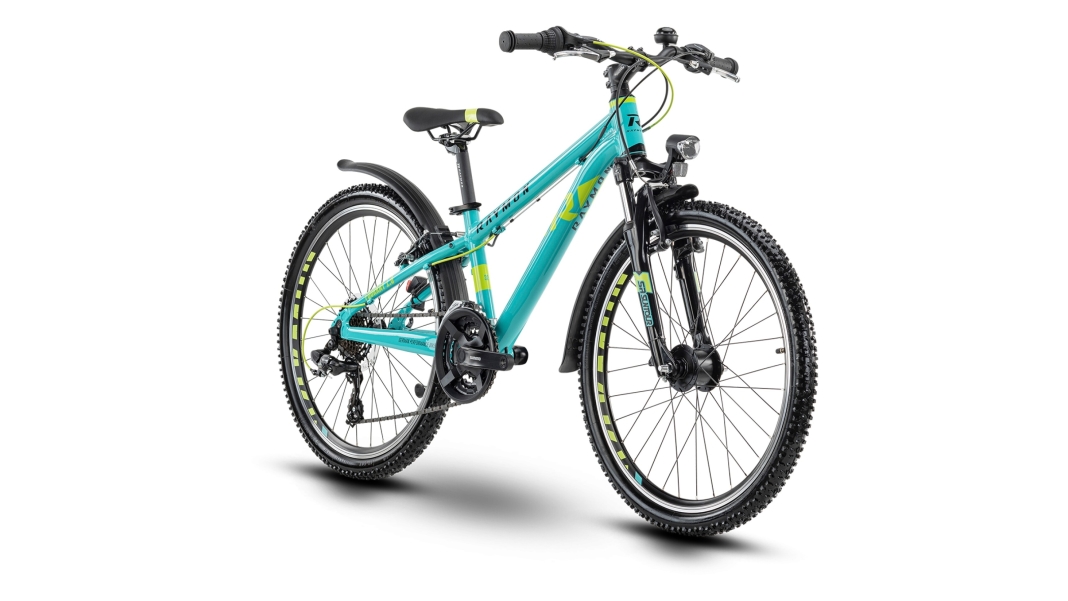

R Raymon FourRay 1.0 Street
