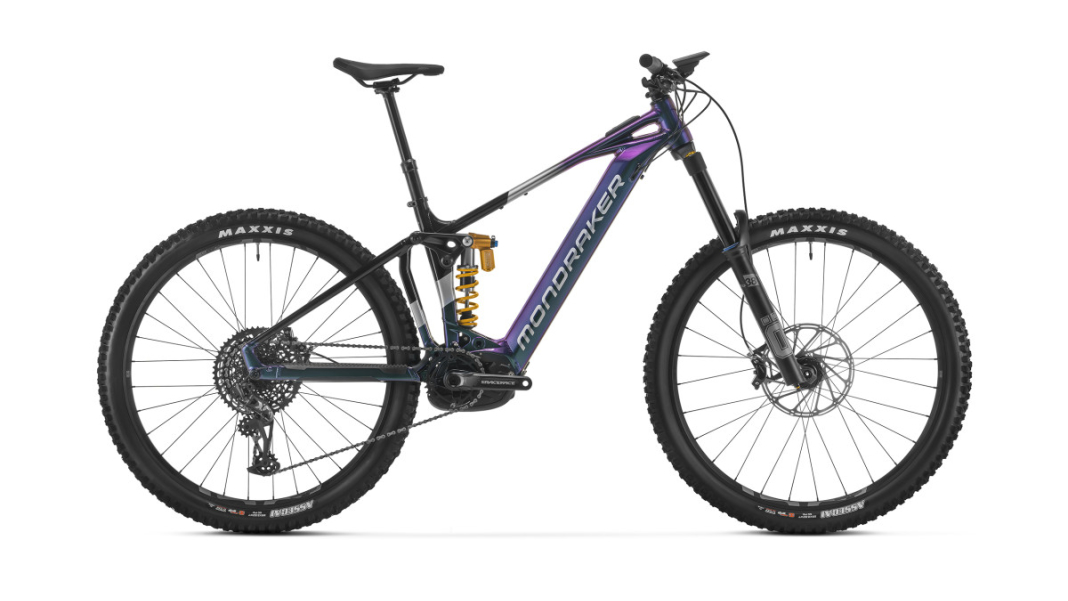

LEVEL XR


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Profile not fully set up

Comments

My Bookmarks

My Comments

My Profile

Which bike is right for me?

Helps us estimate the right stability and components.

How often do you ride?

A motor helps when you're riding long distances or tackling climbs.

Should a motor support you?

Helps us find bikes within your budget.

How much do you want to spend?

Tell us what you enjoy – we'll find the right bike.

Purpose – how do you want to ride?

Range determines battery size on e-bikes.

How long are your rides?

Affects tyres and geometry.

What terrain do you ride on?

Bikefinder: Which bike is right for you?

Rear brakes	SRAM Code Silver Stealth, extra large 4-piston brake caliper, one-piece 220 mm IS 6-hole centreline brake disc, sintered metal brake pads with steel backplate
Frame	Level 6061 Alloy Stealth Evo, e-bike-optimised Zero Suspension System, 170 mm travel, Forward Geometry, integrated, non-removable battery, 12 x 148 mm Boost rear axle, tapered head tube, one-piece upper rocker monoblock, internally routed cables and hoses (HHG), sealed "MAX-Capacity" bearings, extra large 17 mm axles, speed sensor integrated in the dropout, exclusive plastic motor covers.
Shift levers	SRAM Trigger GX Eagle, 12-speed, X-Actuation 1:1, Single Click
Fork	Öhlins RXF 38 M.2 29, 180 mm, TTX18 Twin Tube cartridge, tapered head tube, 15 x 110 mm Boost axle, 44 mm offset. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, air preload, ramp-up chamber
Rear shock	Öhlins TTX22M.2, 225 x 75 mm. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, spring preload. Trunnion mount at the top, lower bushes: 25 x 10 mm
Grips	ONOFF Desert, single lock-on, 135 mm
Stem	ONOFF Krypton FG 30 mm, CNC, 31.8 mm handlebar diameter
Saddle	FIZIK Terra Aidon X5 145 mm
Rims	ethirteen ESpec Plus, IW30 Hookless, 6069 aluminium welded, 30 mm inner width, tubeless ready, 28F/32R spokes
Rear tire	Maxxis Assegai 29 x 2.5 WT, tubeless ready, 3C MaxxGrip rubber compound, DH casing, 60x2TPI, folding bead
Front hub	e*thirteen Boost 15 x 110 mm, triple sealed, milled aluminium, IS 6-hole
Display	Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
