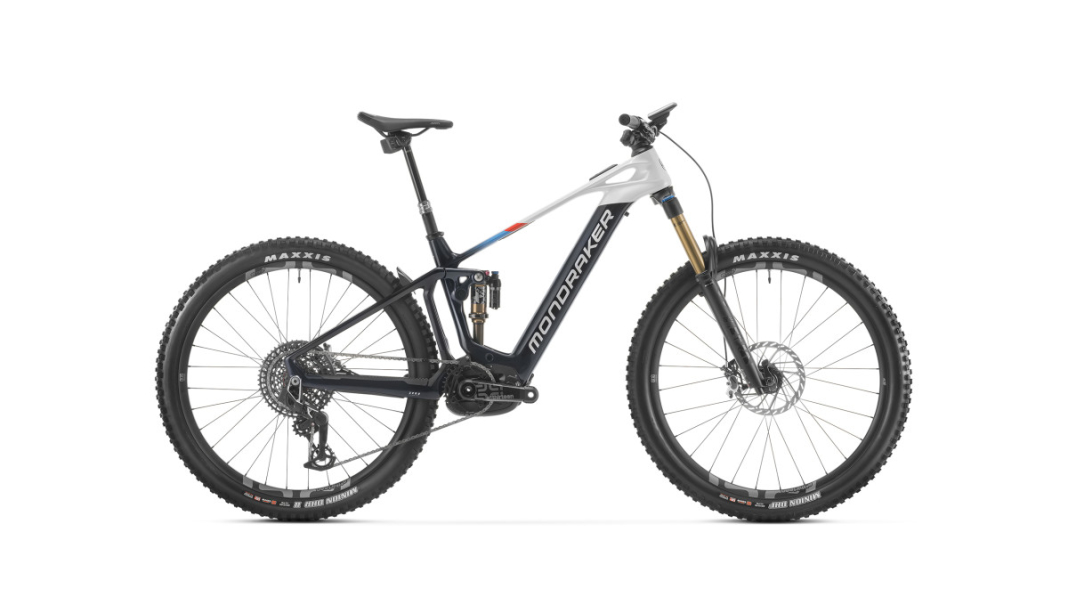

Mondraker CRAFTY CARBON RR SL
Model: CRAFTY CARBON RR SL
Model year: 2024
Price: 13.499,00 €
Category: Fully
Weight: 23.3 kg
Tests & Reviews
Equipment
| Rear brakes | SRAM Code Ultimate Stealth, extra-large 4-piston brake caliper, one-piece 200 mm IS 6-hole HS2 brake disc, sintered metal brake pads with steel backing plate |
| Frame | Crafty Stealth Air Full Carbon, e-bike-optimised Zero Suspension System, 150 mm travel, Forward Geometry, integrated, non-removable battery, 12 x 148 mm Boost rear axle, tapered head tube, one-piece upper rocker monoblock, internally routed cables and hoses (HHG), sealed "MAX-Capacity" bearings, extra-large 17 mm axles, speed sensor integrated into the dropout, exclusive plastic motor covers. |
| Shift levers | SRAM Eagle AXS Pod MMX, 12-speed |
| Fork | Fox 38 29 Float GRIP2 Factory Kashima, 160 mm, adapted to e-bikes, tapered head tube, 15 x 110 mm Boost axle, 44 mm offset, 68 mm OD fork crown. Settings: High- and low-speed compression, high- and low-speed rebound, air preload |
| Rear shock | Fox Float X Factory Kashima EVOL, 205 x 65 mm. Settings: Compression damping with 2 modes (Open/Firm), rebound damping, air preload. Trunnion mount at the top, lower bushings: 25 x 10 mm |
| Grips | ONOFF Desert, single lock-on, 135 mm |
| Stem | ONOFF Krypton FG 30 mm, CNC, 31.8 mm handlebar diameter |
| Saddle | FIZIK Terra Aidon X5 145 mm |
| Rims | e*thirteen Race Carbon Enduro IW30, hookless carbon rim, 30 mm internal width, tubeless-ready, 28 spokes |
| Rear tire | Maxxis Minion DHF 29 x 2.6, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead |
| Front hub | e*thirteen Boost 15 x 110 mm, triple sealed, milled aluminium, IS 6-hole |
| Motor manufacturer / model | Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM |
