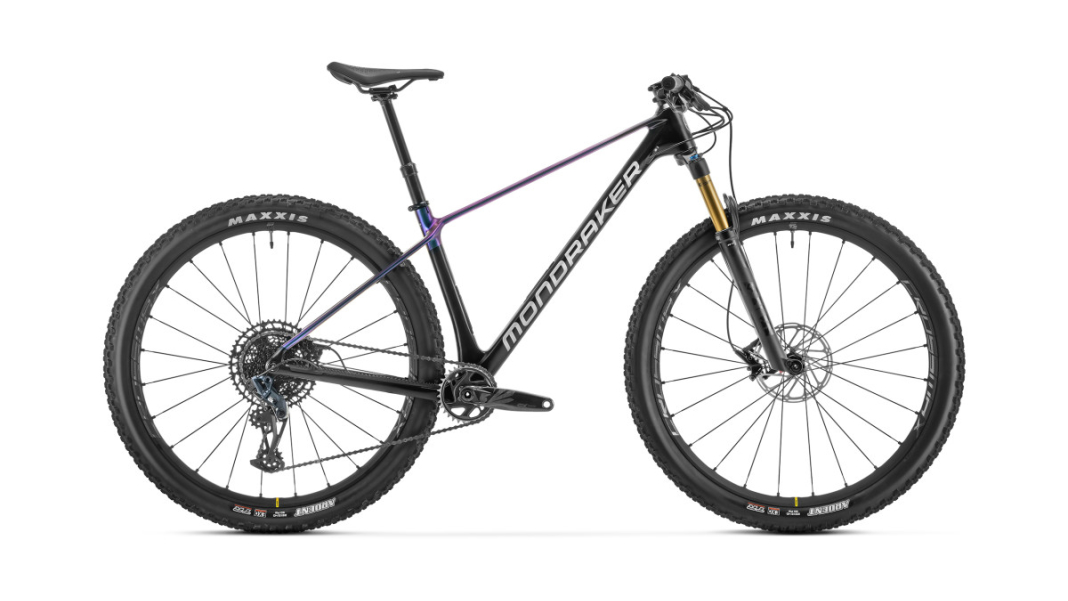

Mondraker CHRONO CARBON DC RR
Model: CHRONO CARBON DC RR
Model year: 2024
Price: 3.499,00 €
Category: Hardtail
Tests & Reviews
Equipment
| Front brakes | SRAM Level T, two-piece brake caliper, one-piece 180 mm IS 6-hole centreline brake disc, organic brake pad with steel backing plate |
| Brake levers | SRAM Level T, DirectLink actuation, grip width adjustment with tool, lever joint bushings |
| Frame | Chrono 29 Stealth Full Carbon, XC Forward Geometry, 73 mm BSA bottom bracket, tapered head tube, internally routed cables and hoses (HHG), 12 x 148 mm Boost rear axle, specifically designed for single-chainring drivetrains, compatible with flat-mount brakes. |
| Shift levers | SRAM Trigger NX Eagle, 12-speed, X-Actuation 1:1 |
| Fork | Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120 mm, tapered head tube, 15 x 110 mm Boost Kabolt axle, 44 mm offset. Adjustments: 3-way Push-to-Lock remote, micro-adjustable low-speed compression, rebound, air preload |
| Headset | ONOFF IS52 integrated for 1-1/2" head tube, sealed ACB bearings, top 51.8 x 40 45° x 45°, bottom 51.8 x 40 36° x 45° |
| Handlebar | ONOFF Sulfur 0.2, double butted 6061 aluminium, rise: 4.8 mm, width: 760 mm, 9° horizontal crank/backsweep, 0° vertical crank/upsweep, 31.8 mm handlebar diameter |
| Seatpost | ONOFF Pija telescopic seatpost, internal cable routing, diameter 31.6 mm, Universal lever, size S: 405 x 95–125 mm, size M: 458 x 120–150 mm, size L: 498 x 140–170 mm, size XL: 498 x 140–170 mm |
| Front tire | Maxxis Ardent 29 x 2.40, dual rubber compound, EXO, tubeless ready, 60 TPI, folding bead |
| Rear hub | Mavic Infinity hub, ID360 freehub technology, Boost 12 x 148 mm, IS 6-bolt, HG freehub |
| Spokes | Mavic 24 double-butted spokes with straight pull |
