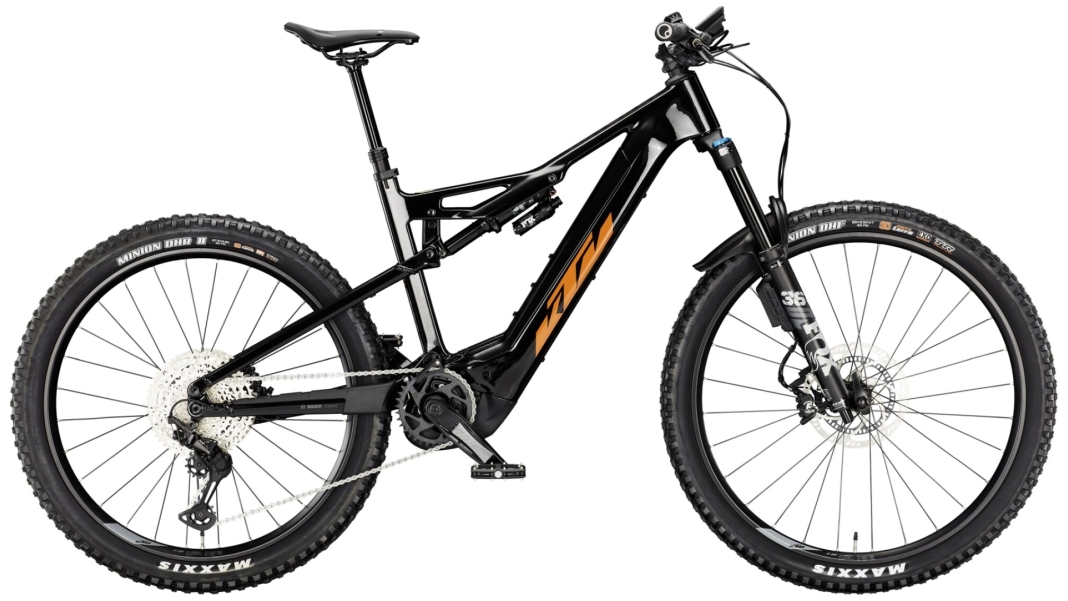

KTM MACINA KAPOHO LTD64 ABS

The "MACINA KAPOHO LTD64 ABS" model from KTM, released in 2024, is an advanced e-mountain bike designed for challenging trails and versatile off-road riding. Priced at 6799 EUR, this bike offers an impressive combination of performance, technology and quality.

The frame of the MACINA KAPOHO LTD64 ABS is made from Macina Kapoho Dimmix Perf. Carbon SLL-LTE and offers 160 mm of suspension travel. It is compatible with the Bosch Gen.4 motor and the integrated PowerTUBE 750Wh battery, which provides a range suitable for extended rides. The bike’s total weight is 26 kg.

Maximum control and safety are ensured by the Magura CT Disc ABS braking system with 4-piston calipers and Magura MDR-C CL 203 mm brake discs at the front and rear. Gear changes are handled by the Shimano Deore XT M8100-12 SGS shadow+ system, which enables precise and reliable shifting. This is complemented by the Shimano Deore XT M8100-12 shift lever.

Suspension is provided by the FOX 36 Float 29" Performance E-Bike fork with 160 mm of travel, which was developed specifically for e-mountain bikes. The pedals are VP-539 MTB pedals made of nylon, which provide good grip and support. The crankset consists of the KTM E-TRAIL ISIS, with a length of 160 mm and a Q-factor of 16.

The drivetrain is based on the Shimano M6100-12 system, whilst the cassette is a Shimano Deore M6100-12 with a range of 10–51T. The handlebars are KTM Team II Trail35 Rizer, 800 mm wide, fitted with Ergon GA20 grips for optimum comfort. The stem is also a KTM Team II Trail35, and the headset is an Acros ICR 1.5" angle limit.

The rims are of different sizes at the front and rear: at the front, a combination of KTM Line – DT Swiss 370 CL 28L 110/15, Ambrosio E30 Trail 28H 622x30TC, DT Champion 2.0 straight-pull black; at the rear, a combination of KTM Line – DT Swiss 370 CL 28L 148/12 12SP LN18, Ambrosio E35 Trail 28H 584x35TC, DT Champion 2.0 straight-pull black. The tyres are Maxxis Minion DHF 3C-MaxxTerra/EXO/TR (63-622) at the front and Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR (70-584) at the rear.

The saddle is a Selle San Marco Ground Short Open Fit Narrow, fitted to a KTM Comp II dropper seatpost with internal cable routing. The saddle is clamped using the KTM Team 35.0 clamp.

The motor is a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM with a maximum assistance speed of up to 25 km/h and a torque of 85 Nm. The battery is a Bosch PowerTUBE 750Wh SMART SYSTEM, integrated horizontally. The display comprises the Bosch LED Remote SMART SYSTEM and the Bosch KIOX 300 TFT Display SMART SYSTEM. Charging is carried out using the Bosch STANDARD Charger 4A SMART SYSTEM.

Overall, the MACINA KAPOHO LTD64 ABS from KTM offers high-quality specifications that will appeal to both experienced mountain bikers and tech-savvy riders.
