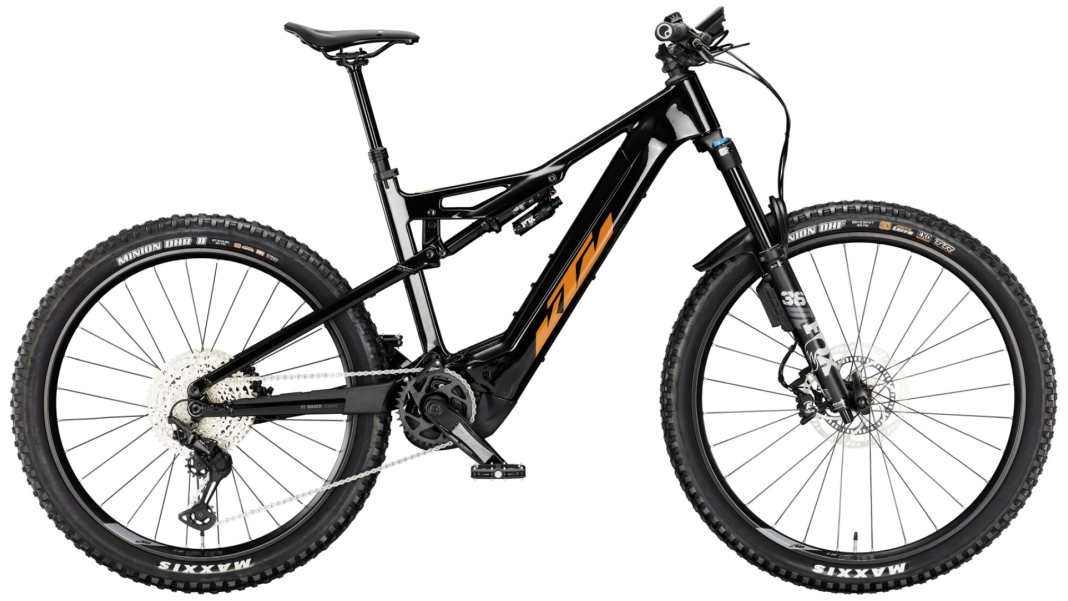

KTM MACINA KAPOHO LTD64

The "MACINA KAPOHO LTD64" model from KTM, released in 2024, is a high-quality e-mountain bike characterised by advanced technology and top-class components. Priced at 6599 EUR, it offers a wide range of features suitable for both challenging trails and long rides.

The bike’s frame is made from Macina Kapoho Dimmix Performance Carbon and offers 160 mm of suspension travel. It is fitted with a Bosch Gen.4 UDH PT750Wh motor and weighs a total of 25 kg. The braking system consists of Shimano Deore XT M8100 / M8120 4-piston brakes, which, in combination with Shimano MT800 CL 203 / 180 Freeza front brake discs, ensure excellent braking performance.

The bike’s gear system is provided by the Shimano Deore XT M8100-12 SGS shadow+ system, whilst the shift levers are also from Shimano Deore XT M8100-12. Front suspension is provided by a FOX 36 Float 29" Performance e-bike fork with 160 mm of travel, ensuring optimum damping.

The bike is fitted with MTB-Pedal flat VP-539 nylon pedals and features a KTM E-TRAIL ISIS 160mm Q16 crankset. The cassette is a Shimano Deore M6100-12 with a gear ratio of 10-51T. The handlebar setup comprises an 800 mm KTM Team II Trail35 Rizer25 handlebar and Ergon GA20 grips, complemented by a KTM Team II Trail35 stem and an Acros ICR 1.5" angle limit headset.

The rims are of different sizes at the front and rear: at the front is a KTM Line - DT Swiss 370 CL 28L 110/15 rim with Ambrosio E30 Trail 28H 622x30TC and DT Champion 2.0 straight-pull black spokes; at the rear, a KTM Line - DT Swiss 370 CL 28L 148/12 12SP LN18 rim with Ambrosio E35 Trail 28H 584x35TC and, likewise, DT Champion 2.0 straight-pull black spokes. The tyres are Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622 at the front and Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584 at the rear, ensuring optimum grip and stability.

The saddle is a Selle San Marco Ground Short Open Fit Narrow, mounted on a KTM Comp II internal dropper seatpost, secured by a KTM Team 35.0 seatpost clamp. The bike is powered by a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor with a top speed of up to 25 km/h and a torque of 85 Nm. The battery is a Bosch PowerTUBE 750Wh SMART SYSTEM, integrated horizontally. The display consists of a Bosch LED remote SMART SYSTEM combined with a Bosch KIOX 300 TFT display SMART SYSTEM. A Bosch STANDARD Charger 4A SMART SYSTEM is used to charge the battery.

Overall, the MACINA KAPOHO LTD64 offers an impressive combination of performance, comfort and technology, making it an excellent choice for e-mountain bike enthusiasts.
