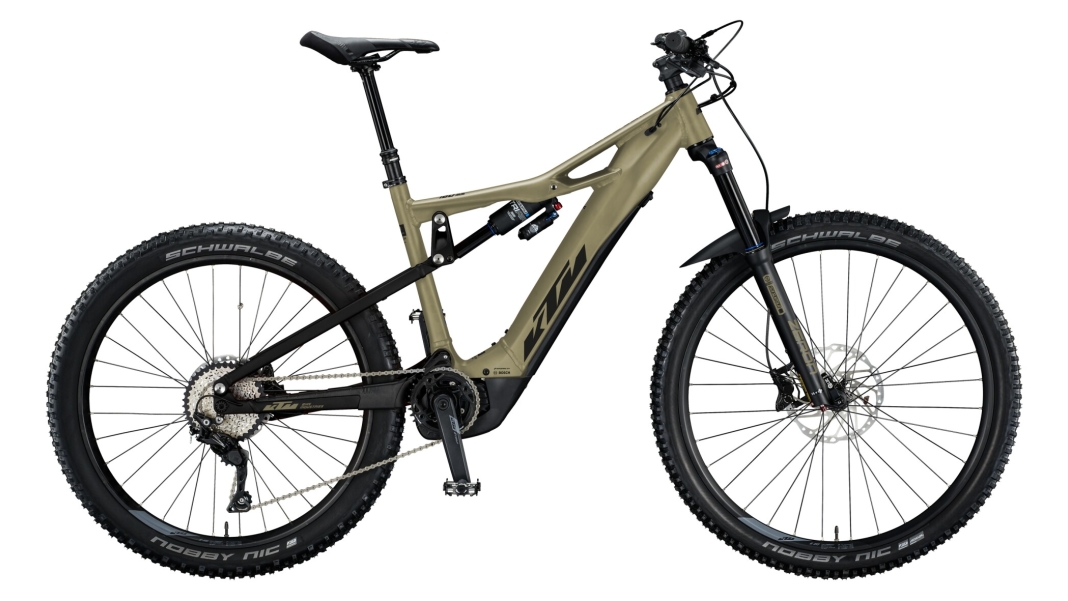

KTM MACINA KAPOHO 2973

The "MACINA KAPOHO 2973" model from KTM, released in 2020, is a high-performance e-mountain bike fitted with a wide range of high-quality components. The bike’s frame is made from Macina Kapoho Dimmix Alloy 6061 SLL-LTE, has 160 mm of travel and is designed for the Bosch Gen.4 motor. This robust yet lightweight frame design ensures excellent stability and durability.

Braking performance is provided by the Shimano MT420 4-piston braking system, which delivers reliable and powerful stopping power. Gear changes are handled by the Shimano Deore M6000-10 GS shadow+ system, which, together with the Shimano Deore M6000-10 shifter with display, enables precise and smooth gear changes. The Suntour Zeron 35 Coil fork, with 150 mm of travel and a 15x110 mm tapered axle standard, ensures excellent damping and control on rough terrain.

The bike is fitted with VP-195E aluminium MTB pedals, which offer good traction and durability. Power is delivered via the Shimano E6090-10 e-bike system, whilst the crankset is a KTM COMP ISIS with a length of 160 mm and a Q-factor of 16 mm. The handlebars are KTM Comp Trail35 Rizer15, which are 780 mm wide and, in combination with the KTM Comp Lock grips and the KTM Team Trail35 stem, ensure comfortable and stable handling.

The tyres on the MACINA KAPOHO 2973 are Schwalbe Nobby Nic Perf. TLR 60-622 at the front and Schwalbe Nobby Nic Perf. TLR 70-584 at the rear, which are renowned for their excellent traction and control on a variety of surfaces. The wheelset consists of a combination of KTM Line – Shimano Deore M6010B CL hubs, Ambrosio E30 Trail rims and DT Champion 2.0 spokes, ensuring a robust and durable wheel construction.

The Selle Italia X3 E-Bike Flow saddle offers a high level of comfort for long rides, whilst the KTM Comp Dropper seatpost, with internal cable routing and remote control, allows for easy adjustment of the saddle height. The bike is powered by a Bosch PERFORMANCE CX Gen.4 motor with an output of 75 Nm and a maximum speed of 25 km/h, supported by a Bosch PowerTUBE battery with a capacity of 625 Wh. The Bosch PURION LCD display provides a clear readout of all relevant ride data and allows for easy control of the motor assistance.

In summary, the MACINA KAPOHO 2973 is a versatile and high-performance e-mountain bike that is ideal for challenging off-road adventures and impresses with its high-quality components and well-thought-out design.
